KYMCO ZING 150 - Rear Wheel Disassembly

12. REAR WHEEL/BRAKE/SUSPENSION
12
-
4

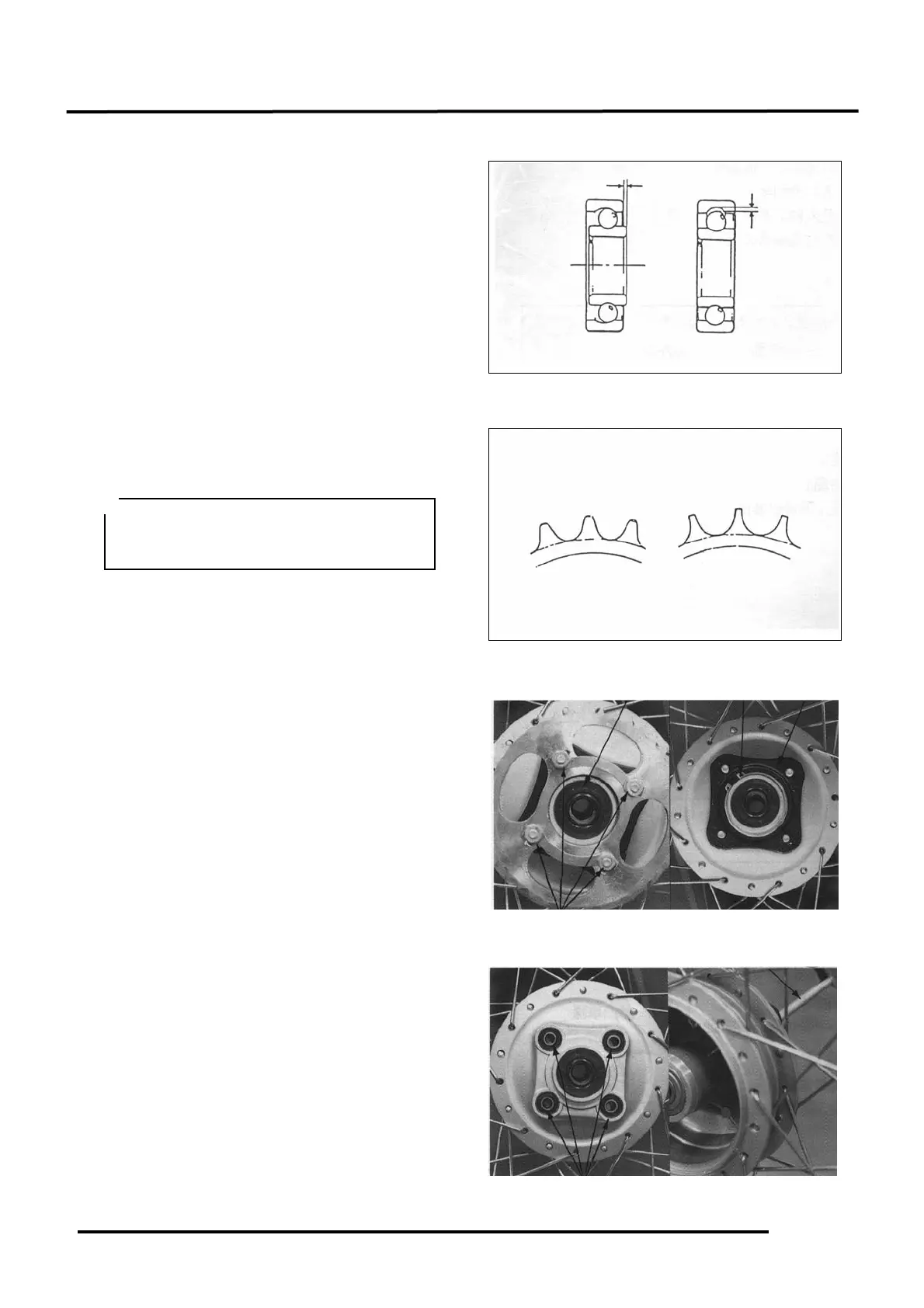

Check the wheel bearing play by placing the
wheel in a turning stand and spinning the
wheel by hand.
Check the drive chain gear teeth for wear or
damage.
Replace the drive chain gear if necessary.
DISASSEMBLY
Remove the side collar and dust seal from
the left side of the rear wheel.
First tap the safety piece flat and then
remove the four drive chain gear lock nuts.
Remove the safety piece and drive chain
gear.
Remove the snap ring and gear gasket.
Check the damping bushings for damage.
Drive out the wheel bearings and remove the
distance collar.
Axial
Radial
If the drive chain gear teeth are worn or
damaged, also check the drive chain and
replace if necessary.
＊
＊＊
＊
Good
Replace
Snap Ring
Dust Seal
Gear Gasket
Lock Nuts
Bearing Remover
Damping Bushings
