14. REAR CARRIER/REAR FENDER/
EXHAUST MUFFLER
14
-
2

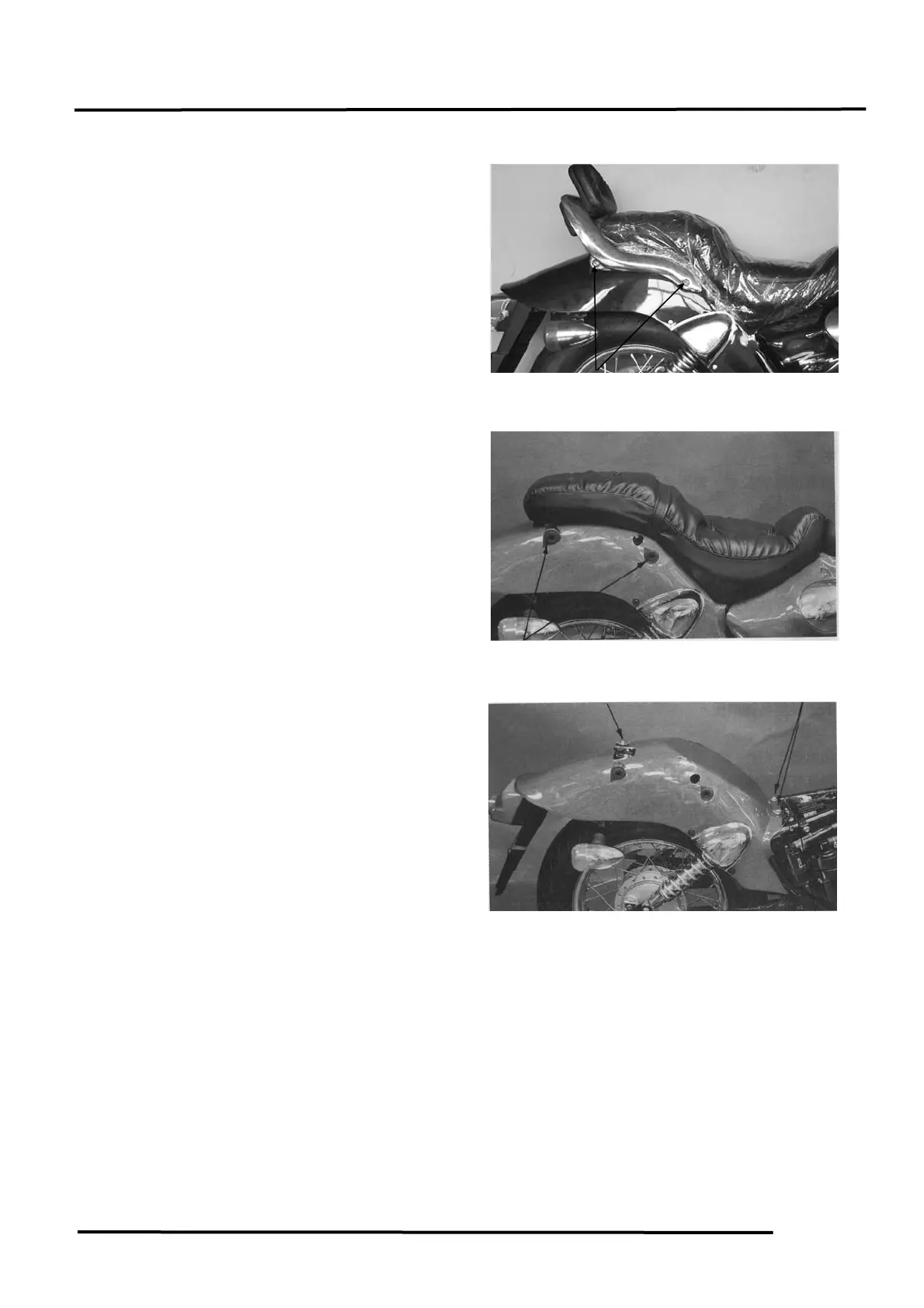

REAR CARRIER
REMOVAL
Remove the two lock bolts on each side of
the rear carrier. Remove the rear carrier and
two collars.
INSTALLATION
Install the rear carrier in the reverse order of
removal.
REAR CARRIER
REMOVAL
Remove the rear carrier. (Refer to 4-10.)
Remove the seat. (Refer to 4-10.)
Remove the lock nut and two lock bolts
attaching the rear fender.
Remove the rear fender.
INSTALLATION
Install the rear fender in the reverse order of
removal.
Rear Carrier Lock Bolts
Collars
Lock Bolts
Lock Nut
Rear Turn Signal Light Wire Coupler
