EXHAUST MUFFLER
REMOVAL
Remove the two exhaust muffler joint lock
nuts.
Remove the two socket head bolts attaching
the rear foot rest.
Remove the exhaust muffler hanger lock
bolt.
Remove the exhaust muffler.
INSPECTION
Inspect the exhaust muffler joint and gasket
for damage, deformation or leakage.
Replace if necessary.
INSTALLATION
Install the exhaust muffler joint and gasket
and then install the exhaust muffler.
First tighten the two exhaust muffler joint
lock nuts and then tighten the exhaust
muffler hanger lock bolt.
Install the rear foot rest.
Torques:
Exhaust muffler joint lock nut: 0.8～1.2kg-m
Exhaust muffler hanger lock bolt: 2.4
～3.0kg-m
The exhaust muffler must be removed
when it is cold to avoid burns.
＊
＊＊
＊

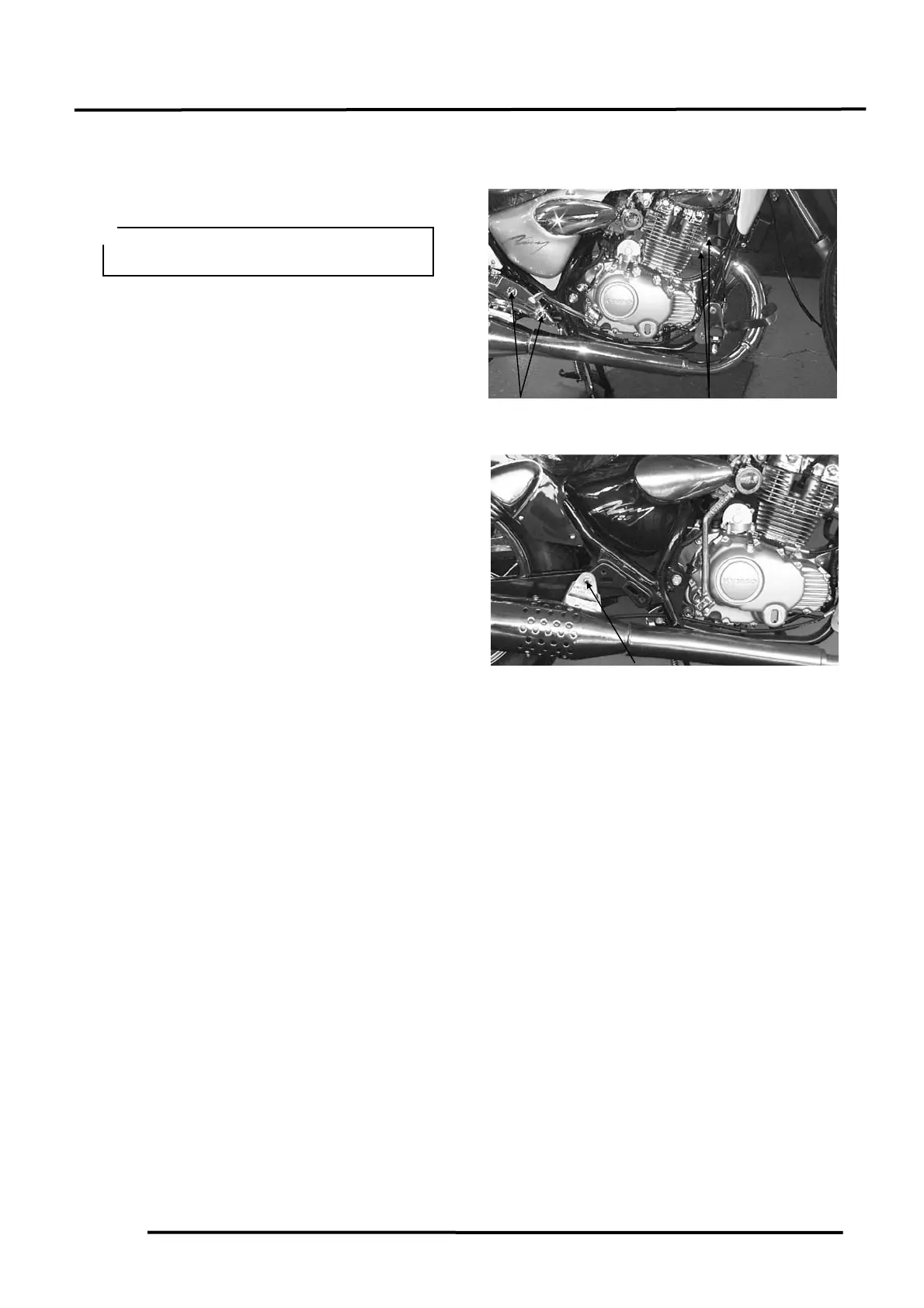

Socket Head Bolts
Hanger Lock Bolt
Exhaust Muffler Joint Lock Nuts
