KYMCO ZING 150 - Page 143

15. IGNITION SYSTEM
15
-
5

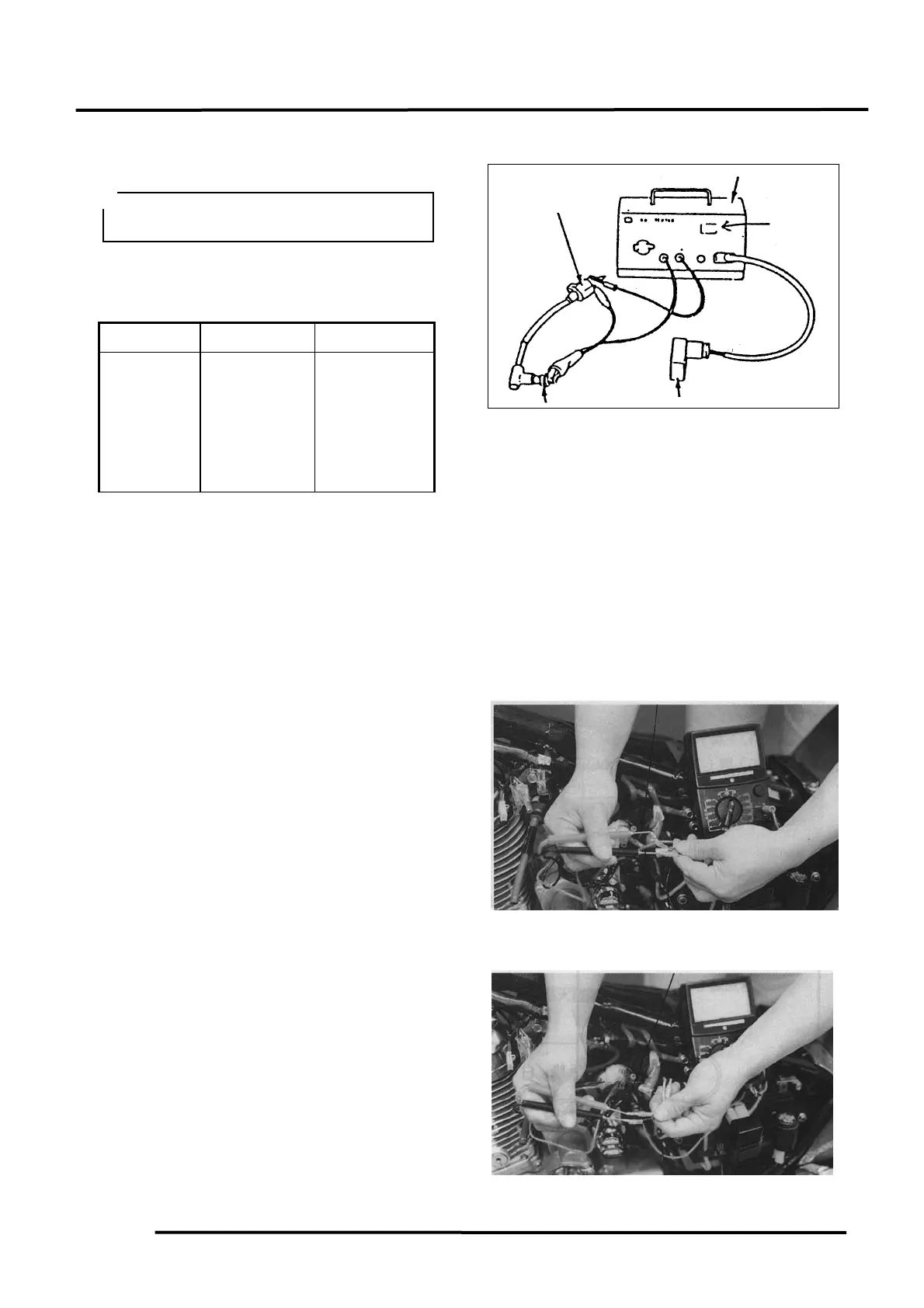

Test the CDI unit using the CDI tester.
Connect the special connector to the CDI
coupler and CDI tester.
Switch Range
Good CDI Faulty CDI
1. OFF
2. P
3. EXT
4. ON1
5. ON2
No spark
No spark
No spark
Good spark
Good spark


Good spark
No spark
No spark
If the CDI unit is faulty, replace it with a new
one.
PULSER COIL
INSPECTION
Disconnect the pulser coil wire coupler and
measure the resistance between the blue/
white and green/white wire terminals.
Resistance: 92～138Ω
EXCITER COIL
INSPECTION
Disconnect the exciter coil wire coupler and
measure the resistance between the black/red
wire terminal and ground.
Resistance: 272～408Ω
Operate the CDI tester by following
the
manufacturer‘s instructions.
＊
＊＊
＊
Blue/White
Black/Red
Spark
Window
Green/White
Ignition Coil
CDI Uni
t
Spark Plug
CDI Tester
