KYMCO ZING 150 - Regulator;Rectifier Removal

16. CHARGING SYSTEM
16
-
5

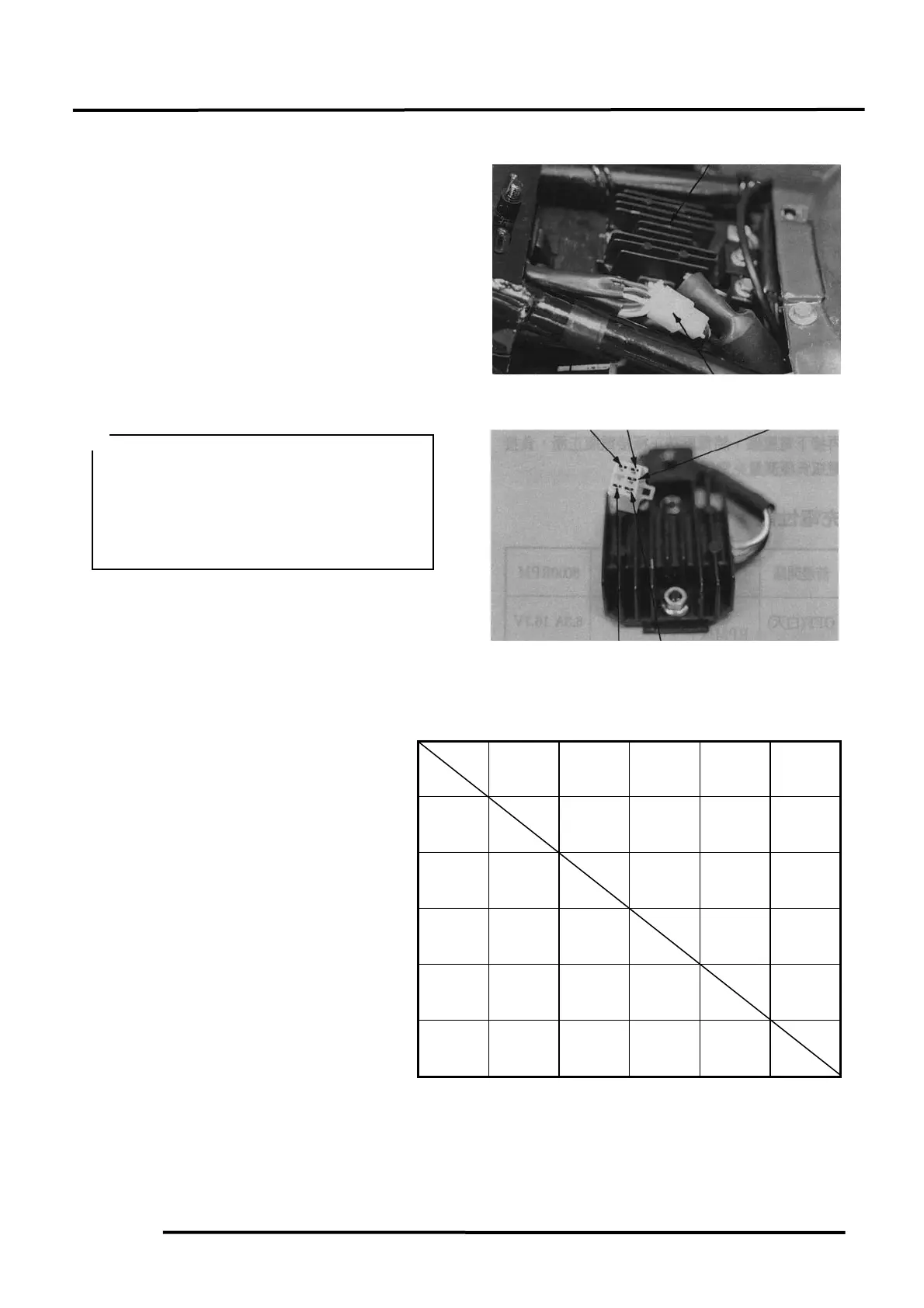

REGULATOR/RECTIFIER
REMOVAL
Remove the rear carrier and seat. (Refer to
4-10.)
Remove the regulator/rectifier lock nut and
disconnect the regulator/rectifier wire
coupler.
Measure the resistances between the
regulator/rectifier wire terminals. Replace the
regulator/rectifier if the readings are not
within the specifications in the table below.
Testing Range
Range for the Sanwa Tester:
xKΩ
Range for the Kowa Tester: x100Ω
(+)Probe
(
-
)Probe
Pink Yellow Red Green Black
Pink ∞ 4-7K ∞ ∞
Yellow
∞
4-7K ∞ ∞
Red
∞ ∞
∞ ∞
Green 4-6K 4-6K 13-17K 1-2K
Black 4-7K 4-7K 13-17K
1-2K
Note: The readings in this table are taken with a Sanwa
Tester.
Regulator/Rectifier
Yellow
Red
•
Due to the semiconductor in circuit, it is
necessary to use a specified tester for
accurate testing. Use of an improper
tester or measurements in an improper
range may give false readings.
Use a Sanwa Electric Tester or Kowa
Electric Tester for testing.
＊
＊＊
＊
Pink
Black
Green
Coupler
