8. STARTER MOTOR/GENERATOR/LEFT CRANK-
CASE COVER/STARTER CLUTCH/CAMSHAFT
8
-
2

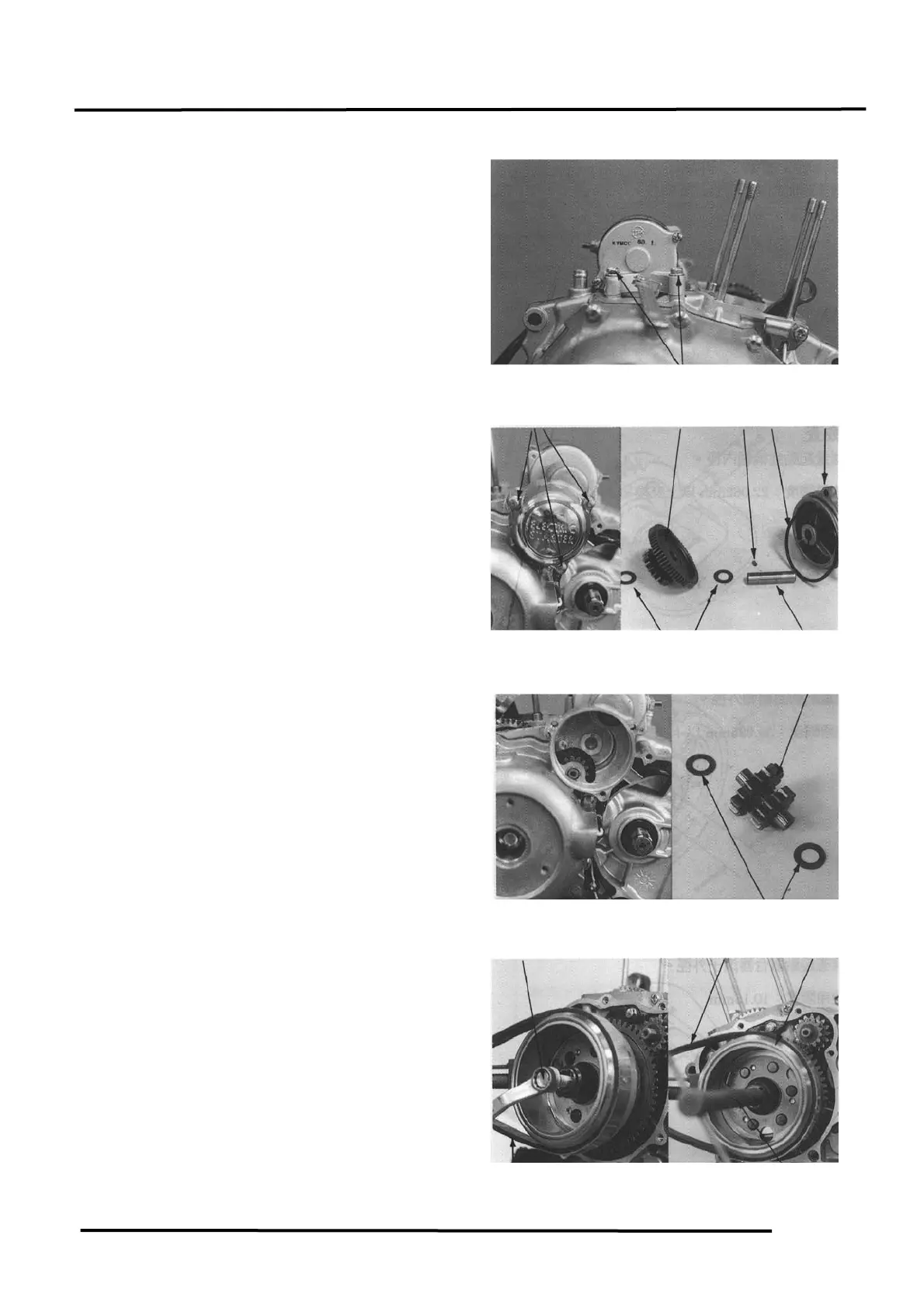

STARTER MOTOR REMOVAL
Remove the two starter motor mounting
bolts and the motor.
Inspect the starter motor O-ring for damage
or deterioration.
Inspect the starter motor pinion for wear or
damage.
Remove the three bolts attaching the starter
motor reduction gear cover.
Remove the reduction gear cover.
Remove the reduction gear, shaft and
washers.
Inspect the reduction gear for wear or
damage.
Inspect the reduction gear cover O-ring for
damage or deterioration.
LEFT CRANKCASE COVER/
GENERATOR REMOVAL
Disconnect the neutral light switch wire.
Remove the eight left crankcase cover bolts.
Remove the left crankcase cover and two
dowel pins.
Clean off all gasket material from the left
crankcase cover.
Remove the reduction pinion.
Hold the flywheel with a flywheel holder.
Remove the flywheel lock bolt.
Remove the flywheel using a flywheel puller.
Reduction Gear
Flywheel
Flywheel Lock Bolt
Neutral Light Wire
Reduction Pinion
O
-
ring
Mounting Bolts
Bolts
Washers
Pin
Cover
Shaft
Washers
Flywheel Holder
Flywheel Holder
Flywheel Puller
