8. STARTER MOTOR/GENERATOR/LEFT CRANK-
CASE COVER/STARTER CLUTCH/CAMSHAFT
8
-
3

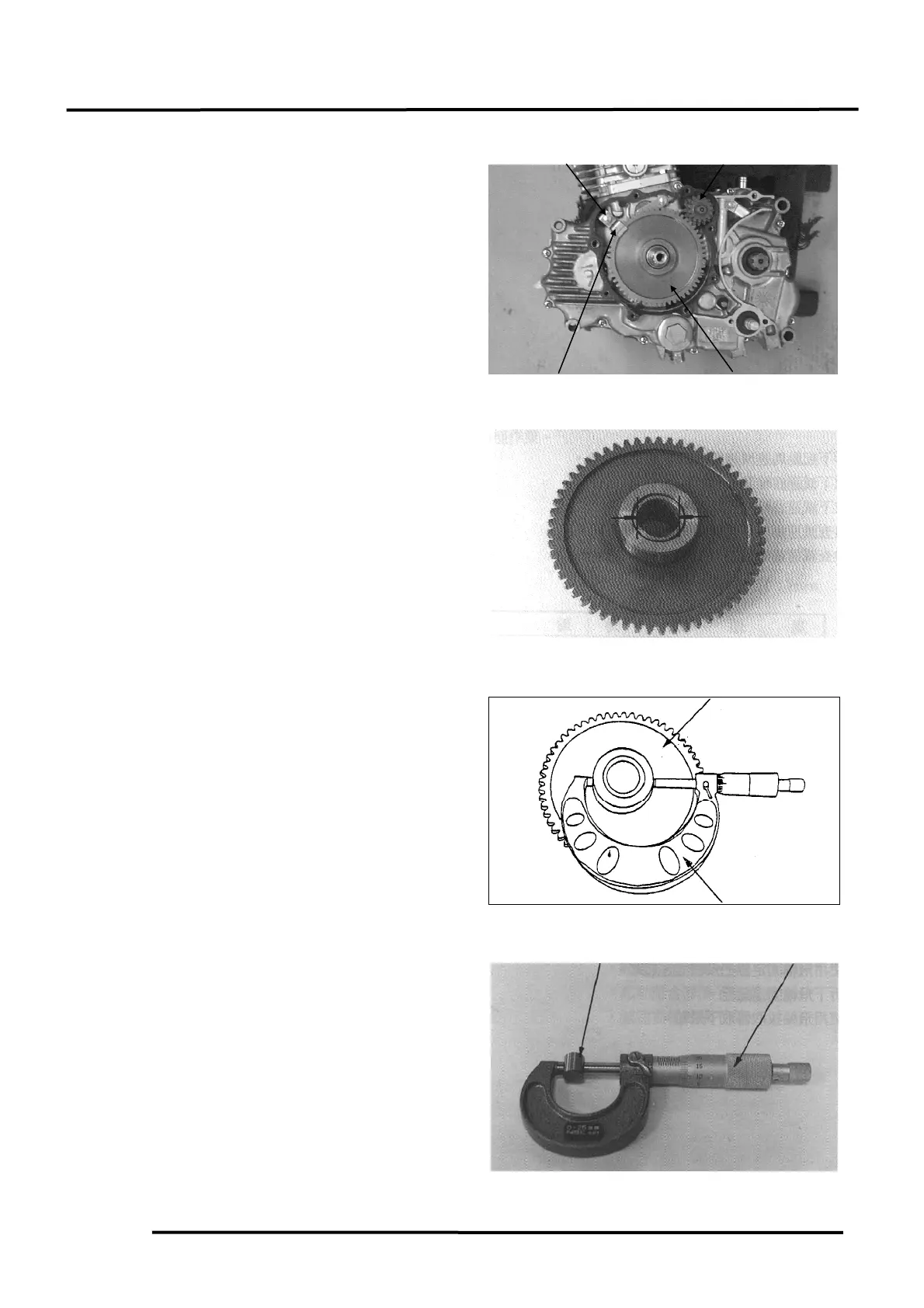

STARTER CLUTCH REMOVAL
Remove the bolt attaching the starter gear set
plate.
Remove the starter gear.
INSPECTION
Measure the starter gear shaft I.D.
Service Limit: 22.062mm replace if over
Measure the starter gear shaft O.D.
Service Limit: 42.534mm replace if below
Measure the starter clutch roller O.D.
Service Limit: 9.95mm
Set Plate
Starter Gear
Bolt
Starter Gear
Micrometer Calipers
Roller
Reduction Pinion
Micrometer Calipers
