CAMSHAFT REMOVAL

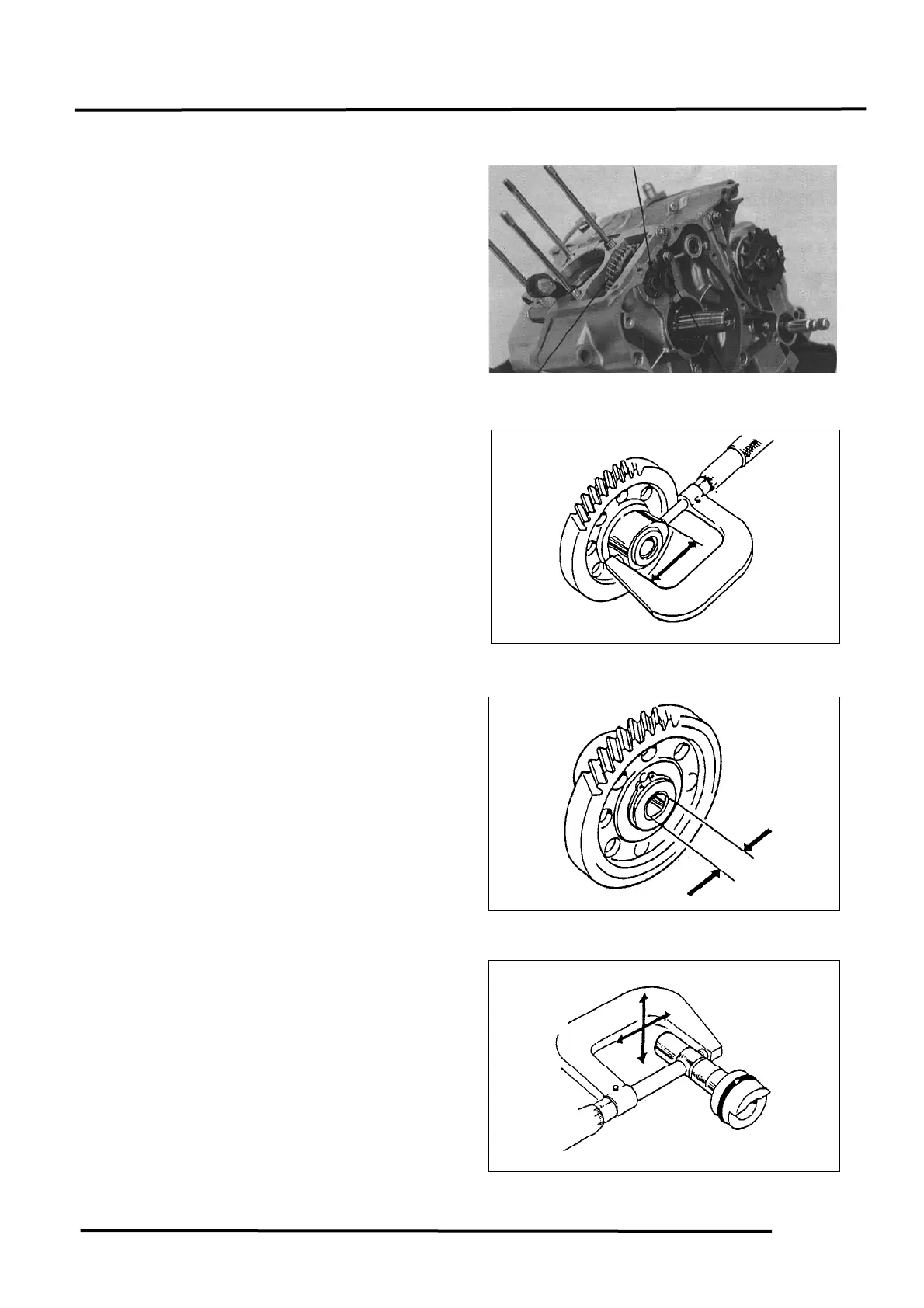

Remove the camshaft set piece.
Remove the spring, camshaft, washer and
cam.
Inspect the camshaft O-ring for wear or
damage.
Measure the cam lobe height.
Service Limit: 32.628mm replace if below
Measure the cam gear shaft hole I.D..
Service Limit: 14.118mm replace if over
Measure the camshaft O.D..
Service Limit: 13.926mm replace if below
C
am Gear
Set Piece
Camshaft
