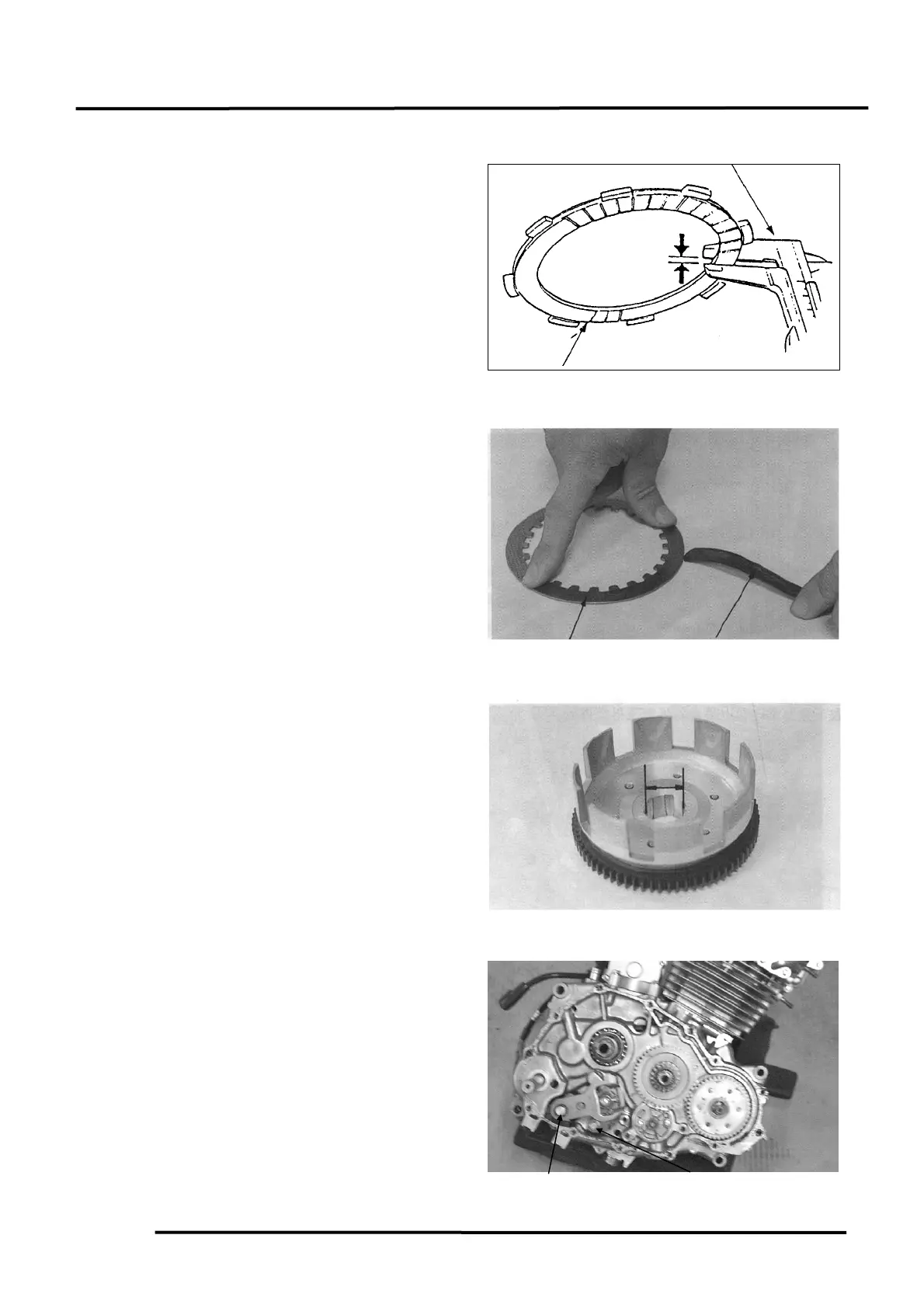

9. CLUTCH/GEAR SHIFT MECHANISM
CLUTCH FRICTION DISK
Measure each clutch friction disk thickness.
Service Limit: 2.5mm
CLUTCH PLATE
Measure each clutch plate bending using a
feeler gauge.
Service Limit: 0.20mm
CLUTCH OUTER/OUTER GUIDE
Inspect the clutch outer groove for scratches
caused by the friction disks.
Measure the clutch outer I.D.
Service Limit: 112.5mm
Measure the clutch outer guide I.D. and O.D.
Service Limits: I.D. : 30.40mm
O.D.: 29.66mm
GEAR SHIFT MECHANISM
Remove the gear shift pedal.
Remove the gear shift spindle and washer.
