Kyocera ECOSYS MA4000cifx

To Next Page

To Previous Page

Installing and Setting up the Machine > Part Names (Connectors/Interior)

6 Conveying cover

7 Size dial

8 Paper length guide

9 Paper width guide

10 Paper guide

11 Multipurpose Tray

12 Fuser cover

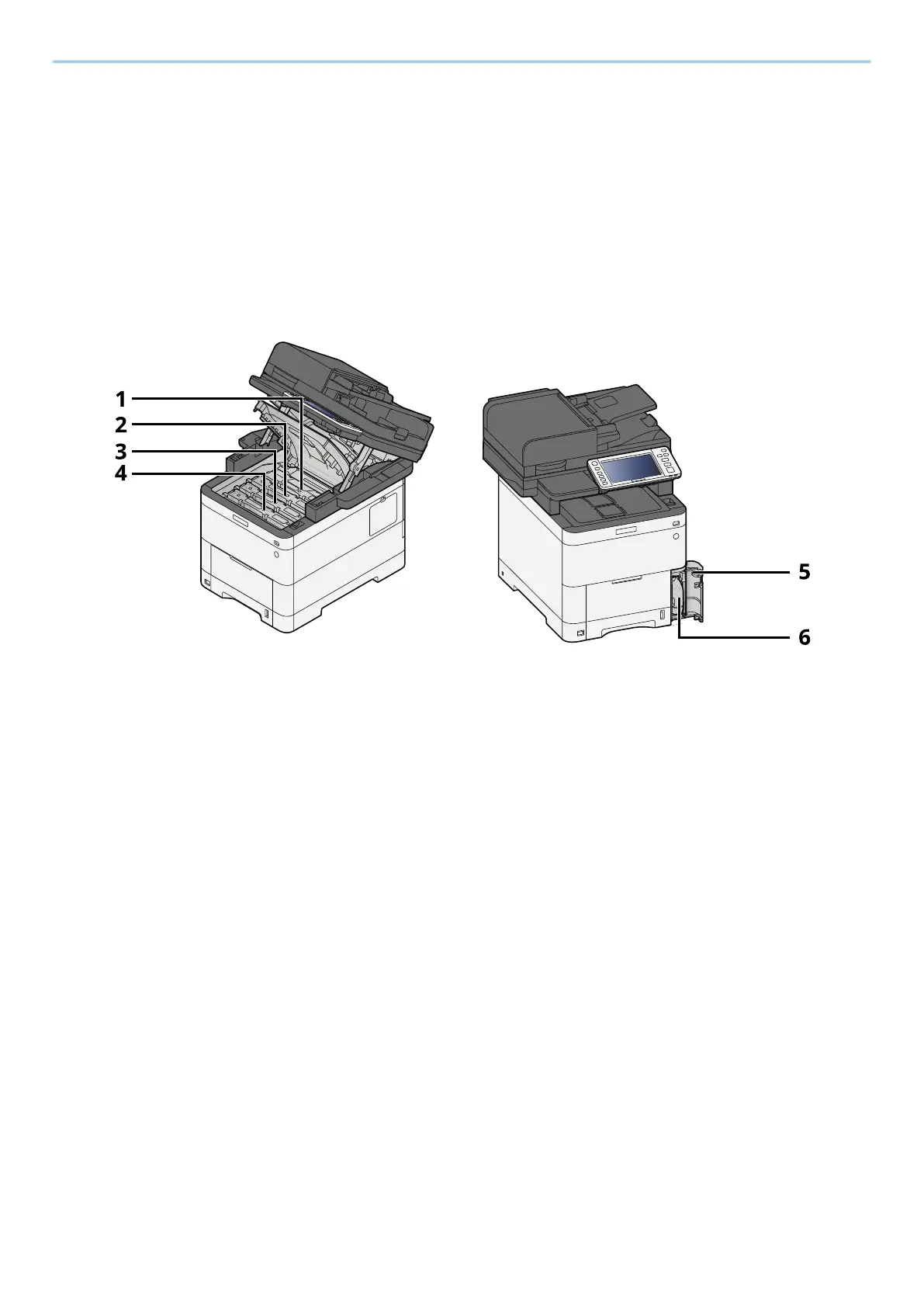

1 Toner container (Black)

2 Toner container (Cyan)

3 Toner container (Magenta)

4 Toner container (Yellow)

5 Waste toner cover

6 Waste toner box
