2-1-5 Transfer/separation section
The transfer/separation section consists of the transfer roller, discharger brush and paper chute guide. A high voltage gen-
erated by the high voltage PWB is applied to the transfer roller for transfer charging. Paper after transfer is separated from
the drum.

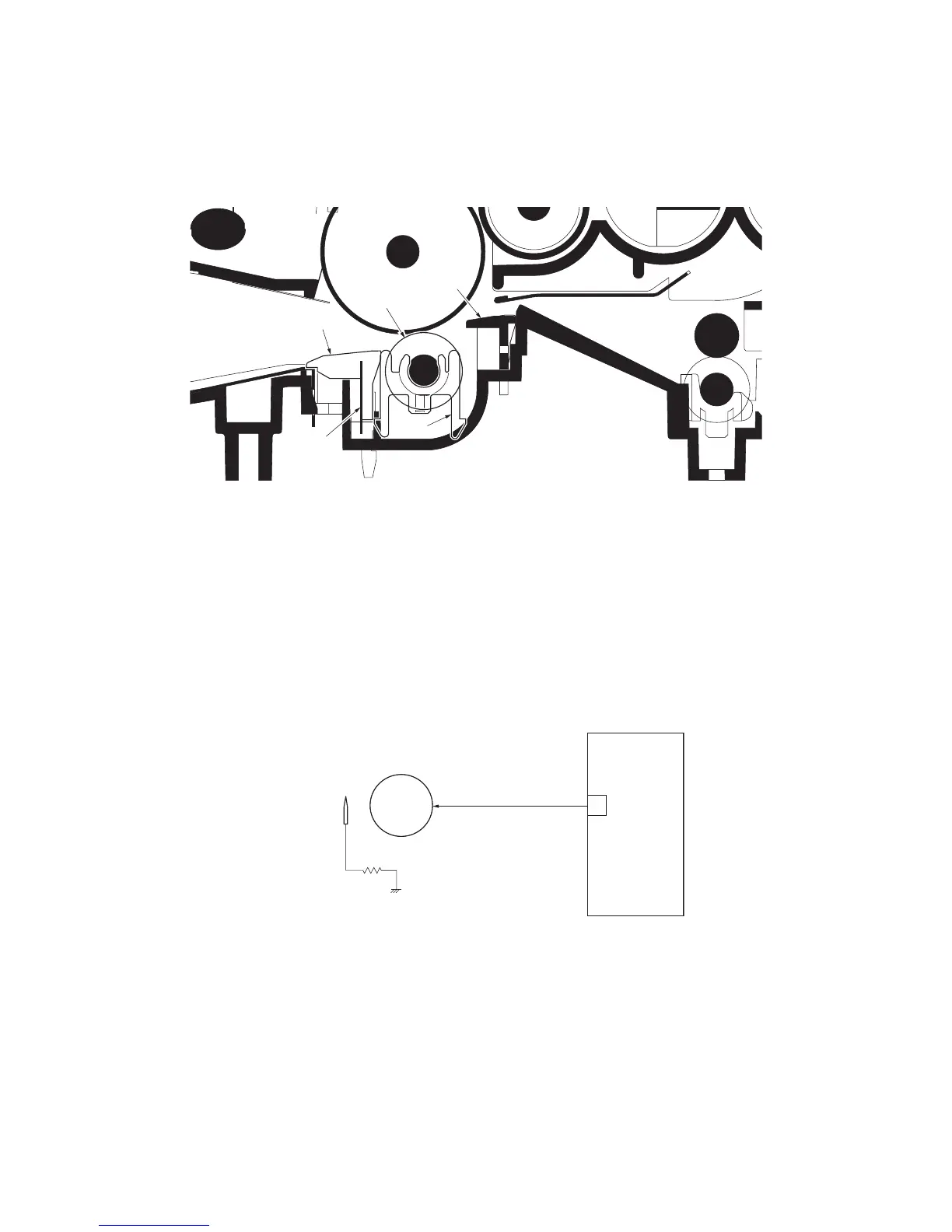

Figure 2-1-14 Transfer/separation section
Figure 2-1-15 Transfer/separation section block diagram
1
2
3
4
5
(1) Transfer roller
(2) Transfer bushes
(3) Discharger brush
(4) DC brush holder
(5) Paper chute guide
T
Transfer
roller
GND
High voltage
PWB
Transfer bias
Discharger
brush
