Kyocera ECOSYS P2035d

2PG/2PH
1-5-12
1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure
1. Remove the developing unit (See page 1-5-
11).
2. Remove the drum unit.
3. Check or replace the drum unit and refit all
the removed parts.

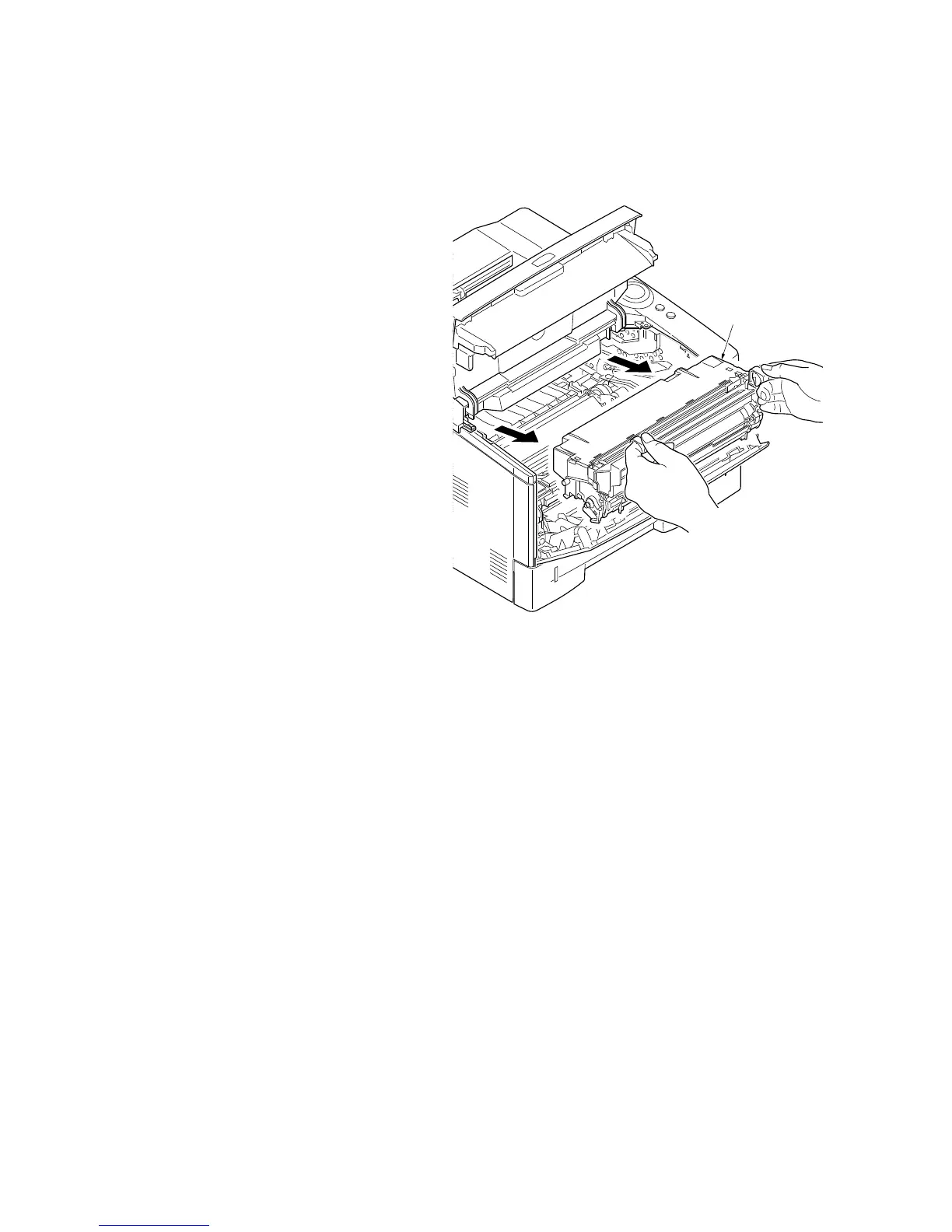

Figure 1-5-16
Drum unit
