Kyocera ECOSYS P2035d

2PG/2PH
2-1-3
(3) Paper conveying section

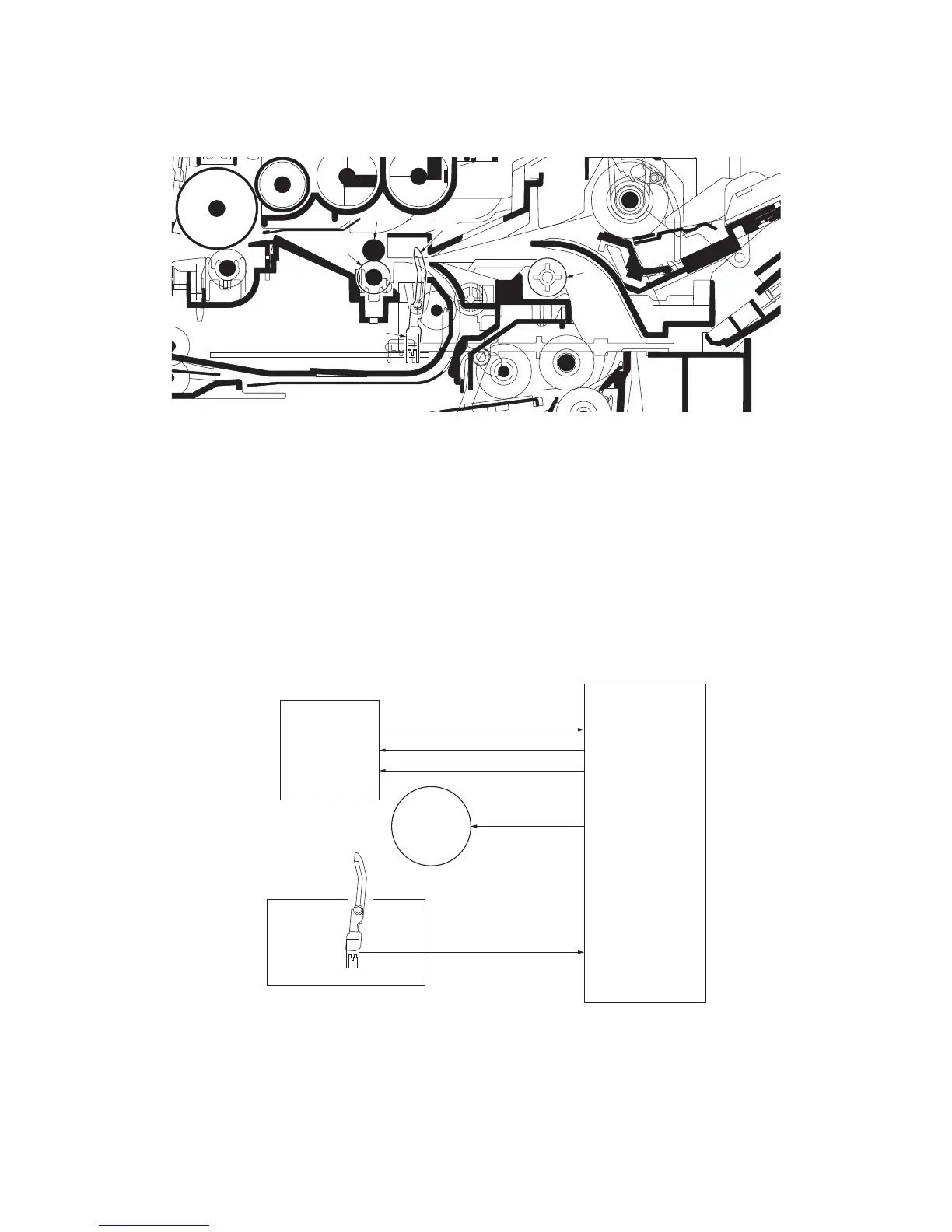

Figure 2-1-5 Paper conveying section
Figure 2-1-6 Paper conveying section block diagram
1
4
3
5
2
(1) Lower registration roller
(2) Upper registration roller
(3) Registration sensor
(4) Actuator (registration sensor)
(5) Feed pulley
MMOTRDYN
REGDRN
Registration
clutch
Main motor
Control PWB
YC311-11
Registration
sensor
High voltage PWB
REGN
YC308-2
MOTCLK
REMOTEN
YC305-3
YC305-4
YC305-5
