Kyocera ECOSYS P2035d Service Manual

2PG/2PH
2-2-2
(2) Switches and sensors

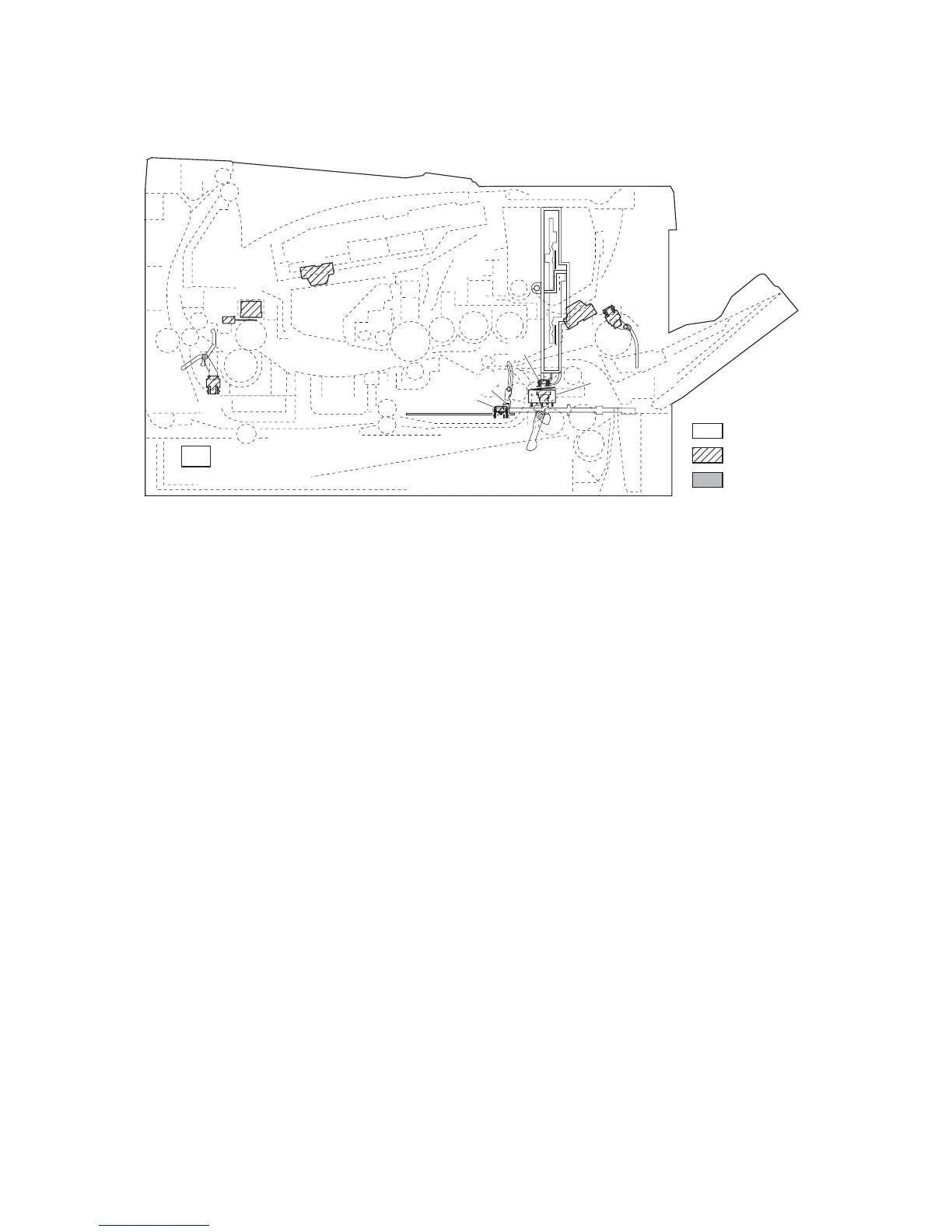

Figure 2-2-2 Switches and sensors
1. Power switch................................................ Turns ON/OFF the AC power source.
2. Interlock switch ............................................ Shuts off 24 V DC power line when the top cover is opened.
3. Cassette switch............................................ Detects open/close cassette.
4. Registration sensor ...................................... Detects the timing of primary paper feed.
5. Paper sensor................................................ Detects the presence of paper in the cassette.
6. MP paper sensor.......................................... Detects the presence of paper on the MP tray.
7. Exit sensor ................................................... Detects paper jam in the fuser or duplex conveying section.
8. Toner sensor ................................................ Detects the quantity of toner in a toner container.
9. Waste toner sensor...................................... Detects when the waste toner reservoir (Drum unit) is full.
10. Fuser thermistor........................................... Measures the heat roller temperature.
11. Fuser thermal cutout .................................... Shuts off the power source to the fuser heater lamp when the heat roller
reaches extremely high temperature.
Machine inside
Machine left
Machine right
1
10
11
9
2
4
5
8
6
3
7

Kyocera ECOSYS P2035d Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black
Maximum duty cycle	20000 pages per month
Number of print cartridges	1
Page description languages	Diablo 630, Epson LQ, IBM ProPrinter, PCL 5c, PCL 6, PCL XL, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	300 sheets
Total output capacity	- sheets
Maximum input capacity	550 sheets
Total number of input trays	2
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Mobile printing technologies	Not supported
Standard interfaces	USB 2.0
Optional connectivity	Wireless LAN
Processor family	PowerPC
Maximum internal memory	544 MB
Sound power level (standby)	30.7 dB
Sound pressure level (printing)	53.3 dB
Sound pressure level (quiet mode)	49.6 dB
Display	LED
Certification	TÜV/GS, CE
Product color	Black, White
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.1 W
Power consumption (printing)	535 W
Power consumption (PowerSave)	2.6 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	250 mm
