Kyocera ECOSYS P2035d

2PG/2PH
1-5-8
(2) Detaching and refitting the retard roller assembly
Procedure
1. Remove the cassette (See page 1-5-6).
2. Push the bottom plate down until it locks.
3. Unhook two hooks and then remove the
retard guide.

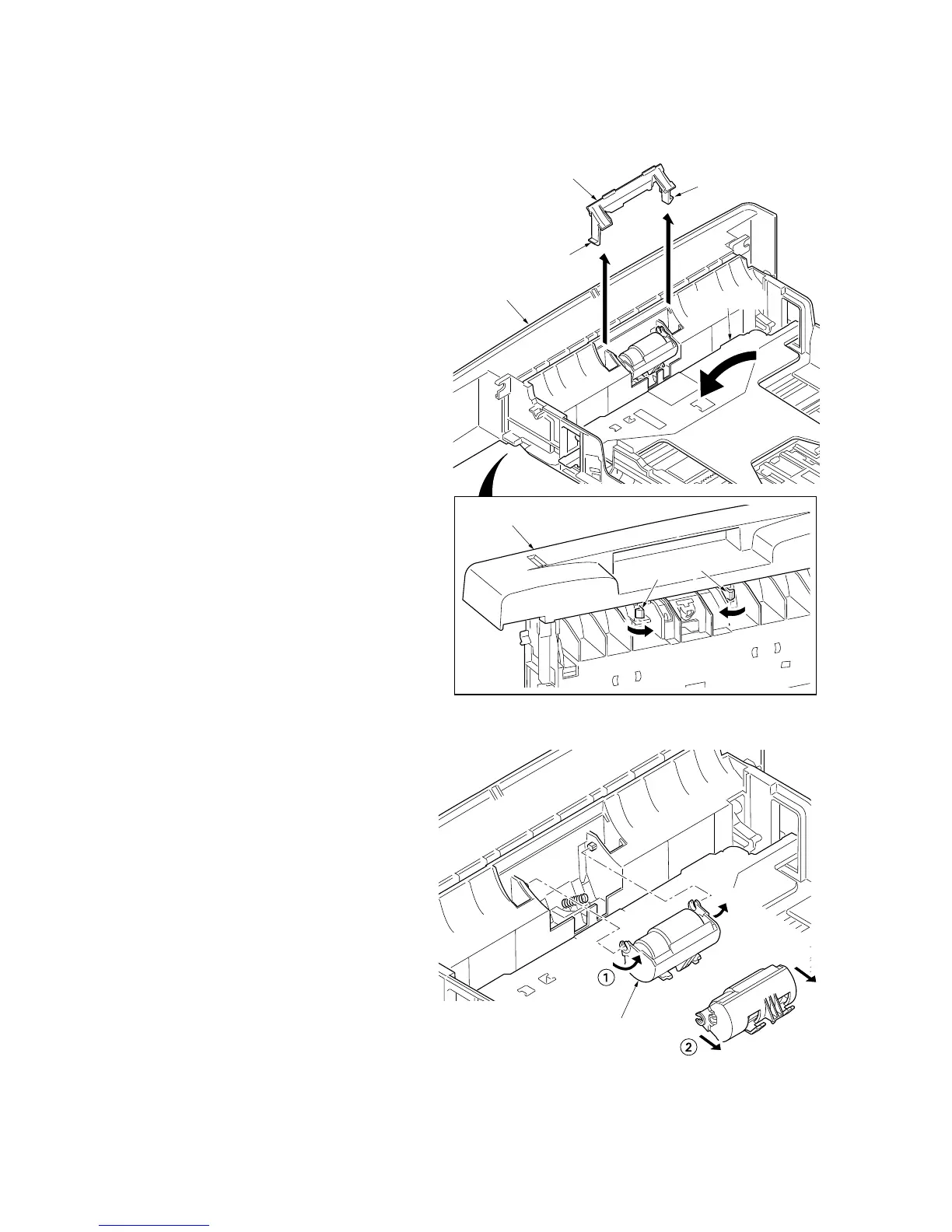

Figure 1-5-10
4. Remove the retard roller assembly.
Figure 1-5-11
Retard guide
Cassestte
Cassette
Hook
Hook
Hook
Hook
Bottom plate
Retard roller
Assembly
