Kyocera ECOSYS P2035d

2PG/2PH
2-3-1
2-3 Operati on of the PWBs
2-3-1 Power source PWB

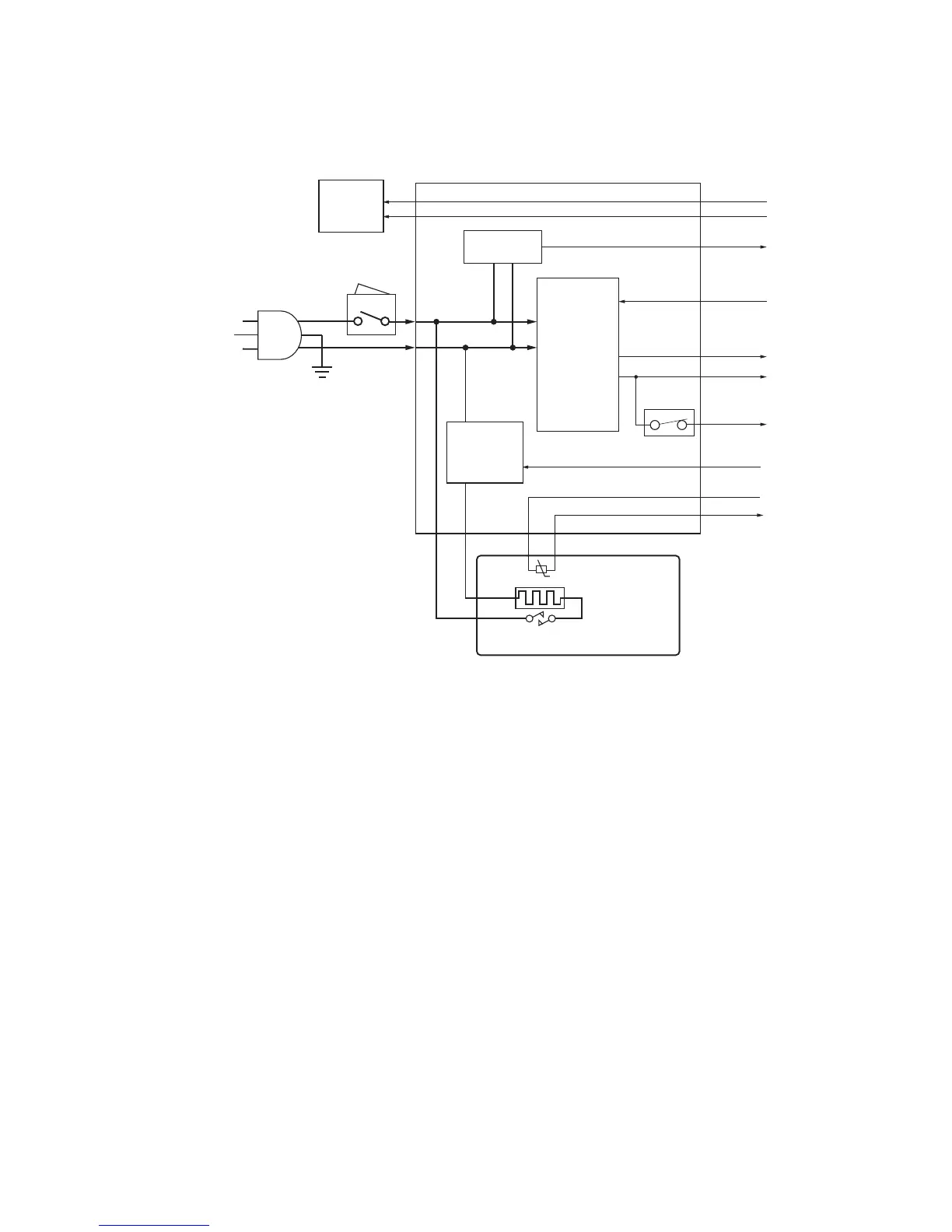

Figure 2-3-1 Power source PWB block diagram
+5V1
SLEEP
+24V1
+24V2
FAN
+3.3V1
ZCROSS
HEATN
THERM
Power source PWB
Left
cooling
fan motor
Fuser thermistor
Fuser thermal cutout
Fuser unit
Switching
regulator
circuit
Zero cross
signal circuit
AC input
Interlock
switch
Power switch
Fuser heater
lamp control
circuit
Fuser
heater lamp
