2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper
feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed paper to the transfer/
separation section.
(1) Cassette paper feed section

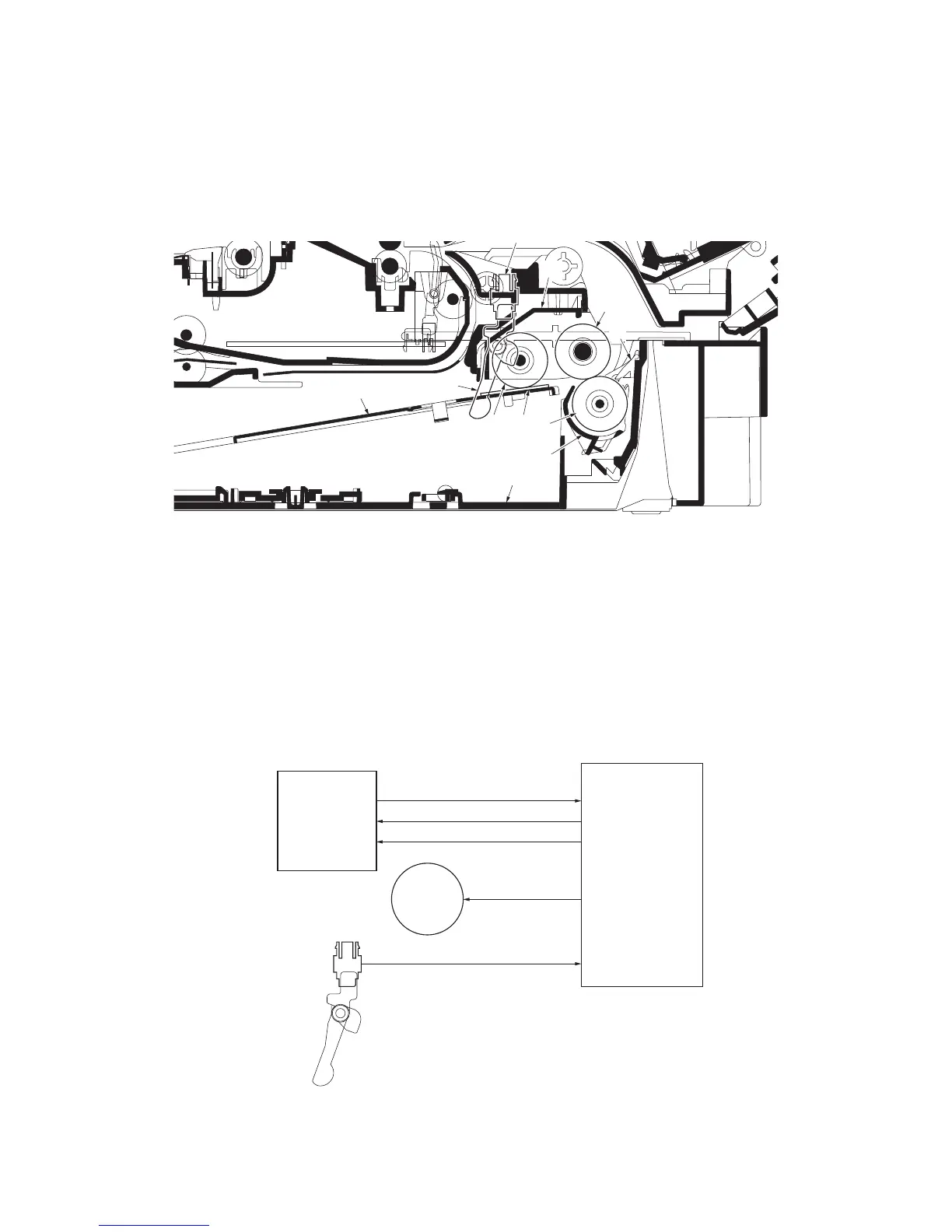

Figure 2-1-1 Cassette paper feed section
Figure 2-1-2Cassette paper feed section block diagram
