Kyocera ECOSYS P2035d

2PG/2PH
2-1-13
2-1-8 Paper exit section
The paper exit section transports the paper which passed the fuser unit towards the top tray. The paper which passed
through the fuser unit turns on the actuator (exit sensor) in the fuser unit, and is led by the guide comprised of the rear
cover, frame and the FD cover guide, finally reaching the upper FD roller. The paper is delivered to the top tray by the rota-
tion of the upper FD roller.

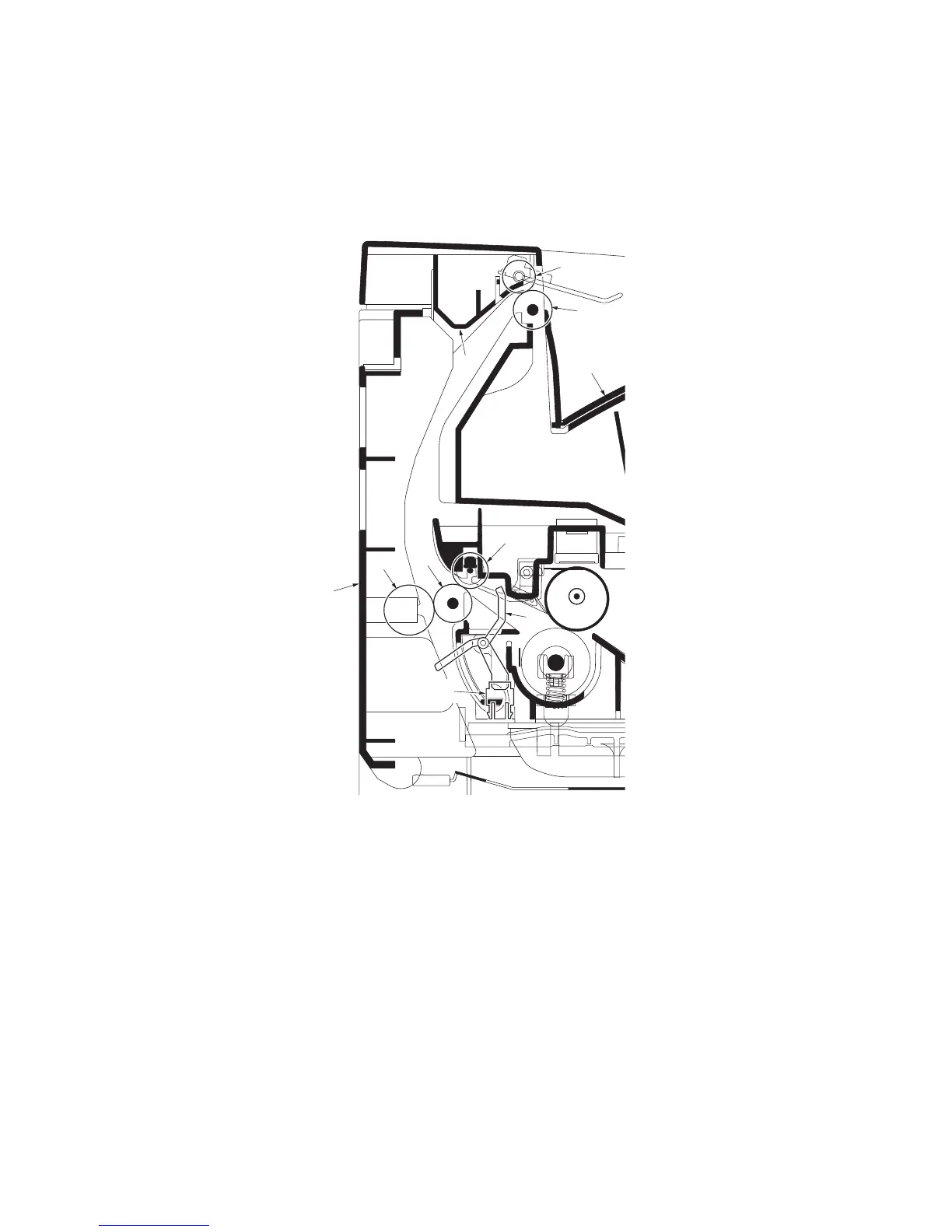

Figure 2-1-20 Paper exit section
3
4
10
5
8
7
6
1
9
2
(1) Exit roller
(2) Fuser exit pulley
(3) Middle pulley
(4) Rear cover
(5) Upper FD roller
(6) Exit pulley
(7) FD cover
(8) Top tray
(9) Exit sensor
(10) Actuator (exit sensor)
