Kyocera ECOSYS P2035d

2PG/2PH
2-1-2
(2) MP tray paper feed section

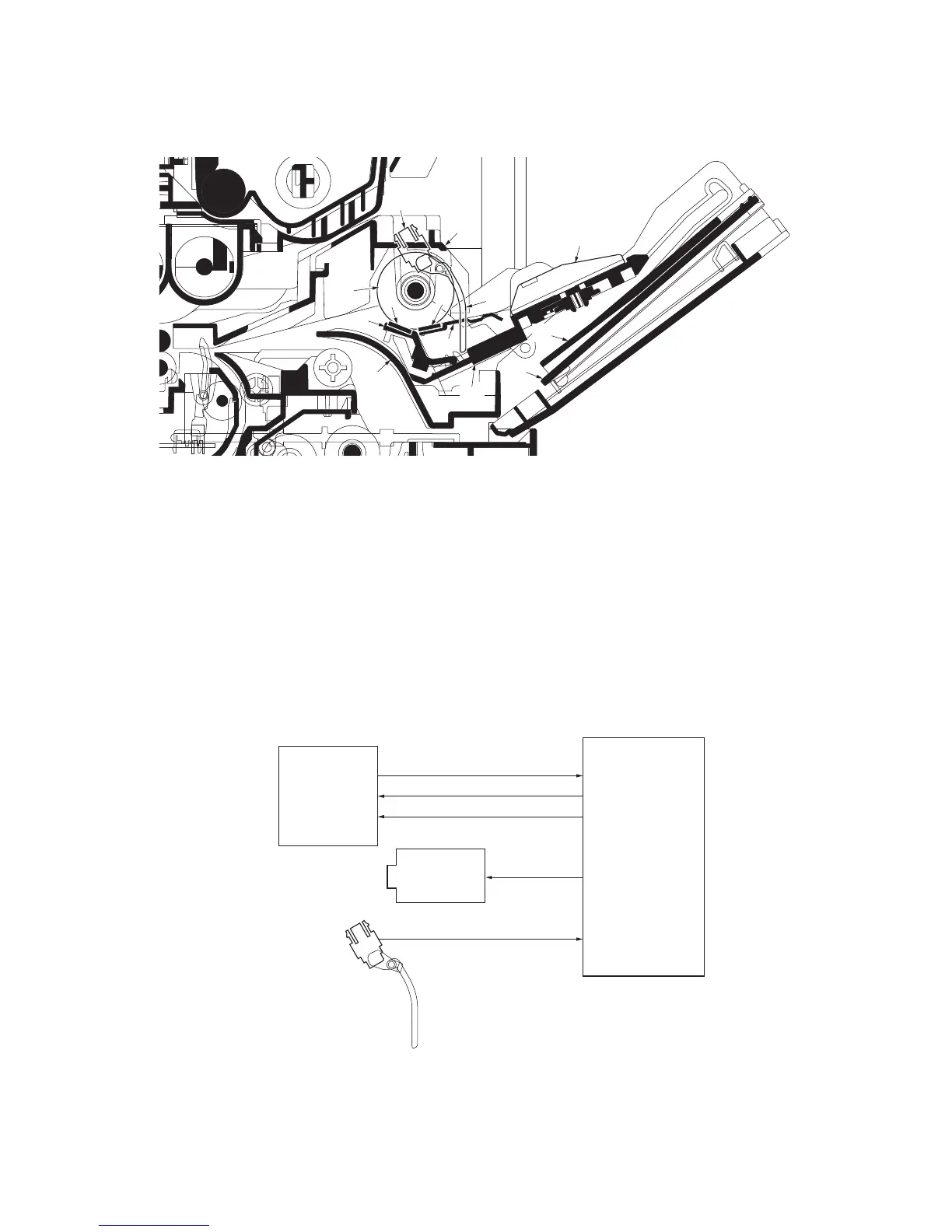

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4 MP tray paper feed section block diagram
1
2
6
8
5
9
4
7
10
11
12
3
13
(1) MP paper feed roller
(2) MPF separation pad
(3) MPF separator
(4) MPF bottom plate
(5) MPF friction pad
(6) MP paper sensor
(7) Actuator (MP paper sensor)
(8) MPF frame
(9) MPF guide R/L
(10) MPF base
(11) MPF middle tray
(12) MPF upper tray
(13) MPF turn guide
MMOTRDYN
YC304-3
MPFDRN
MP paper sensor
MP paper
feed solenoid
Main motor
Control PWB
HANDSN
YC309-2
MOTCLK
REMOTEN
YC305-3
YC305-4
YC305-5
