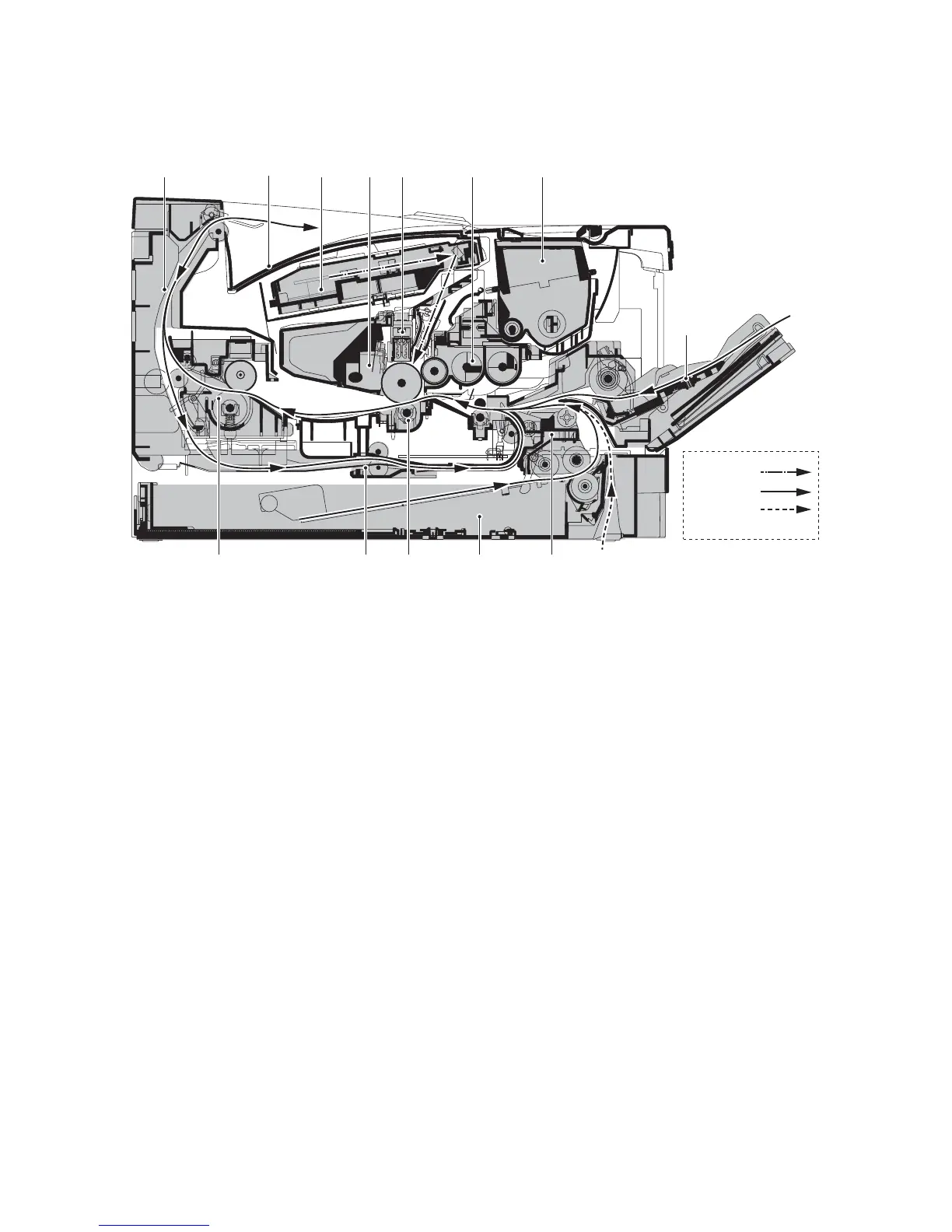

1-1-3 Machine cross section
l
Figure 1-1-3
13
2
456811
12
9
10 13
7
Paper path
Light path
Paper path
(option)
1. Cassette
2. MP tray
3. Paper feed/conveying section
4. Toner container
5. Developing unit
6. Main charger unit
7. Drum unit
8. Laser scanner unit
9. Transfer/separation section
10. Fuser section
11. Exit section
12. Top tray
13. Duplex/conveying section
