Kyocera ECOSYS P2035d

2PG/2PH
1-5-7
4. Check or replace the paper feed assembly
and refit all the removed parts.
When refitting the paper feed roller assem-
bly, be sure to align the paper feed roller
pivot with the slotted hole on the feed shaft.

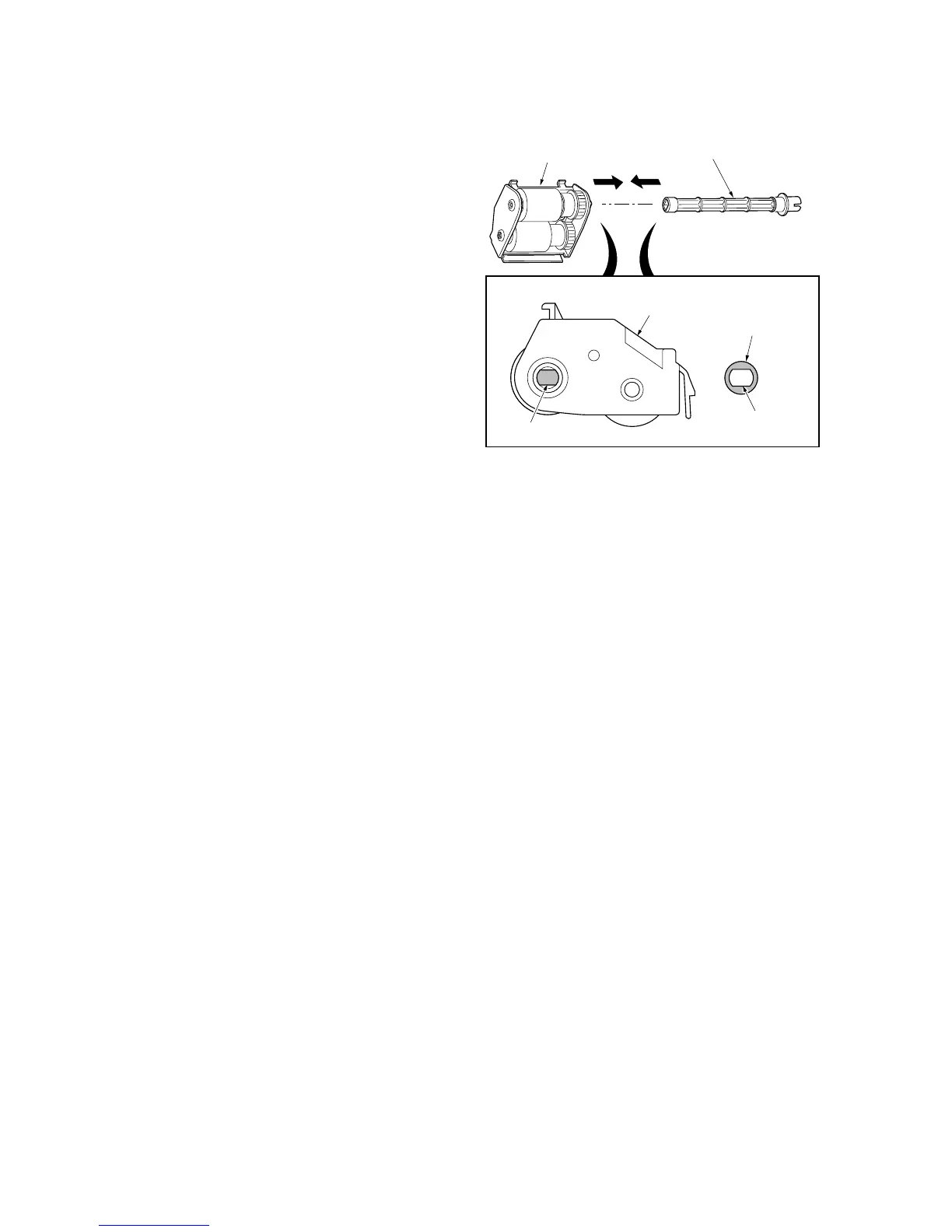

Figure 1-5-9
Paper feed roller
assembly
Paper feed roller
assembly
Feed shaft
Feed shaft
Pivot
Slotted hole
