Kyocera ECOSYS P2035d Service Manual

2PG/2PH
1-3-9
Service items Description
No. Items Description
(8)
cont.
Paper Jam
Log
(a) Cause of paper jam
10: Paper does not arrive at the registration sensor. (MP tray) [42]
10: Paper does not arrive at the registration sensor. (Cassette 1) [31]
10: Paper does not arrive at the registration sensor. (Cassette 2) [31]
10: Paper does not arrive at the registration sensor. (Cassette 3) [31]
10: Paper does not arrive at the registration sensor. (Duplex conveying) [49]
11: Paper does not pass the registration sensor. [48]
12: Paper remains at the registration sensor when power is turned on. [48]
20: Paper does not arrive at the exit sensor. [48]
21: Paper does not pass the exit sensor. [47]
22: Paper remains at the exit sensor when power is turned on. [47]
30: Paper does not arrive at the paper feeder 1’s PF paper feed sensor. (Cassette 2) [32]
30: Paper does not arrive at the paper feeder 1’s PF paper feed sensor. (Cassette 3) [33]
31: Paper does not pass the paper feeder 1’s PF paper feed sensor. (Cassette 2) [32]
32: Paper remains at the paper feeder 1’s PF paper feed sensor when power is turned on.
(Cassette 2) [32]
40: Paper does not arrive at the paper feeder 2’s PF paper feed sensor. (Cassette 3) [33]
41: Paper does not pass the paper feeder 2’s PF paper sensor. (Cassette 3) [33]
42: Paper remains at the paper feeder 2’s PF paper feed sensor when power is turned on.
(Cassette 3) [33]
A1: Paper does not arrive at the exit sensor. [47]
A3: Paper does not pass the exit sensor. [49]
E0: Paper misfeed occurs due to forced stop when an error occurs during printing. (such as
opening of a cover) [00]
F0 to FE: Paper misfeed by another cause. [00]
Note:
Values (hexadecimal) within [ ] indicate paper misfeed locations.

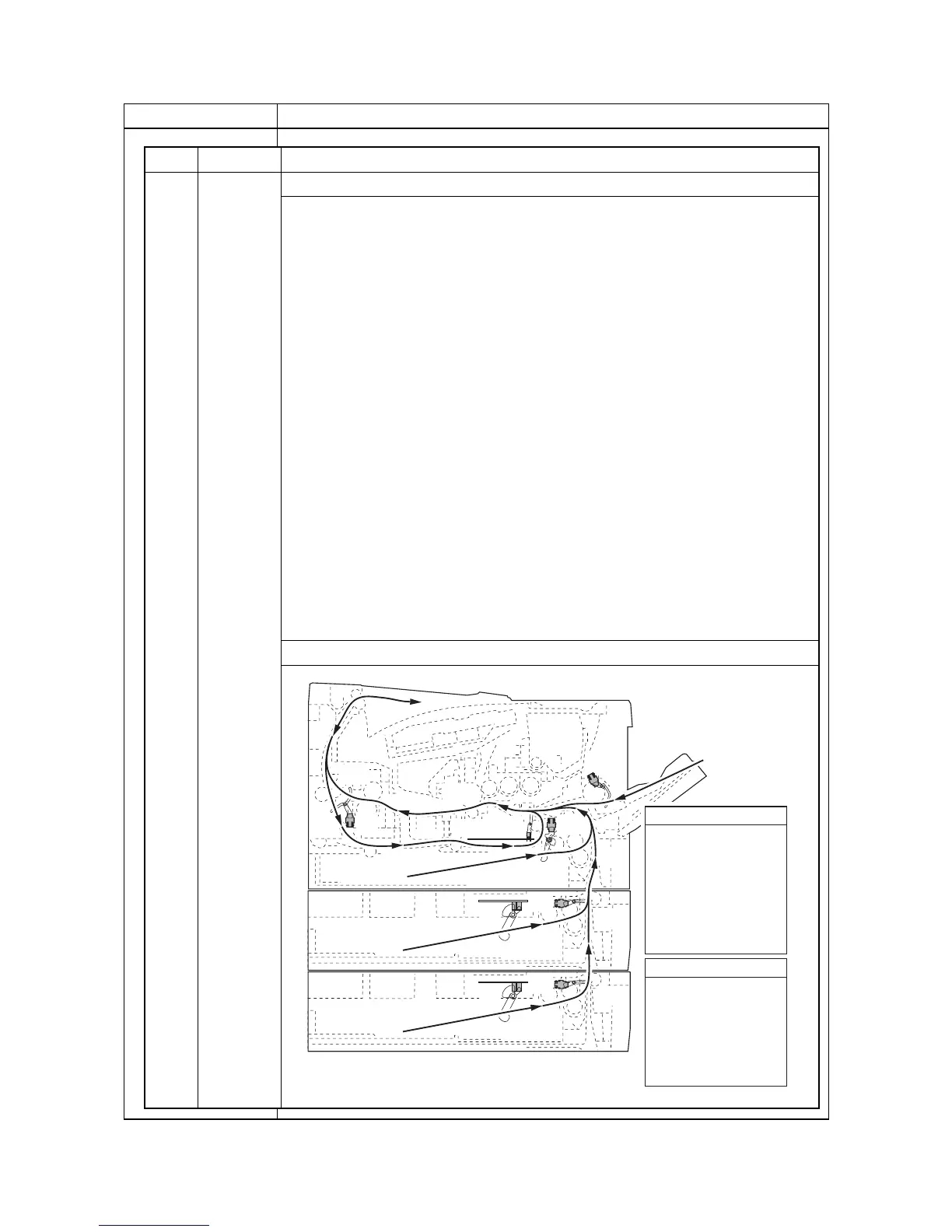

(b) Detail of jam location
Paper feeder 1
Paper feeder 2
Printer
[42]
[32]
[31]
[48]
[47]
[33]
(c)
(b)
(a)
(e)
(f)
(e)
(f)
(d)
(a) Registration sensor
(b) Paper sensor
(c) MP paper sensor
(d) Paper exit sensor
(e) PF paper sensor
(f) PF paper feed sensor
Sensors
[49]
[31] Cassette 1
[32] Cassette 2
[33] Cassette 3
[42] MP tray
[47] Fuser/Exit section
[48] Printer inside
[49] Duplex section
Paper jam location
