Kyocera FS-1300D - Paper Feed Section; Detaching and Refitting the Middle Roller;Feed Bracket Assembly (Paper Feed Roller and Pickup Roller)

3LF
1-4-2
1-4-2 Paper feed section
(1) Detaching and refitting the middle roller/feed bracket assembly (paper feed roller and pickup roller)
Procedure
1. Remove the cassette from the paper feeder.

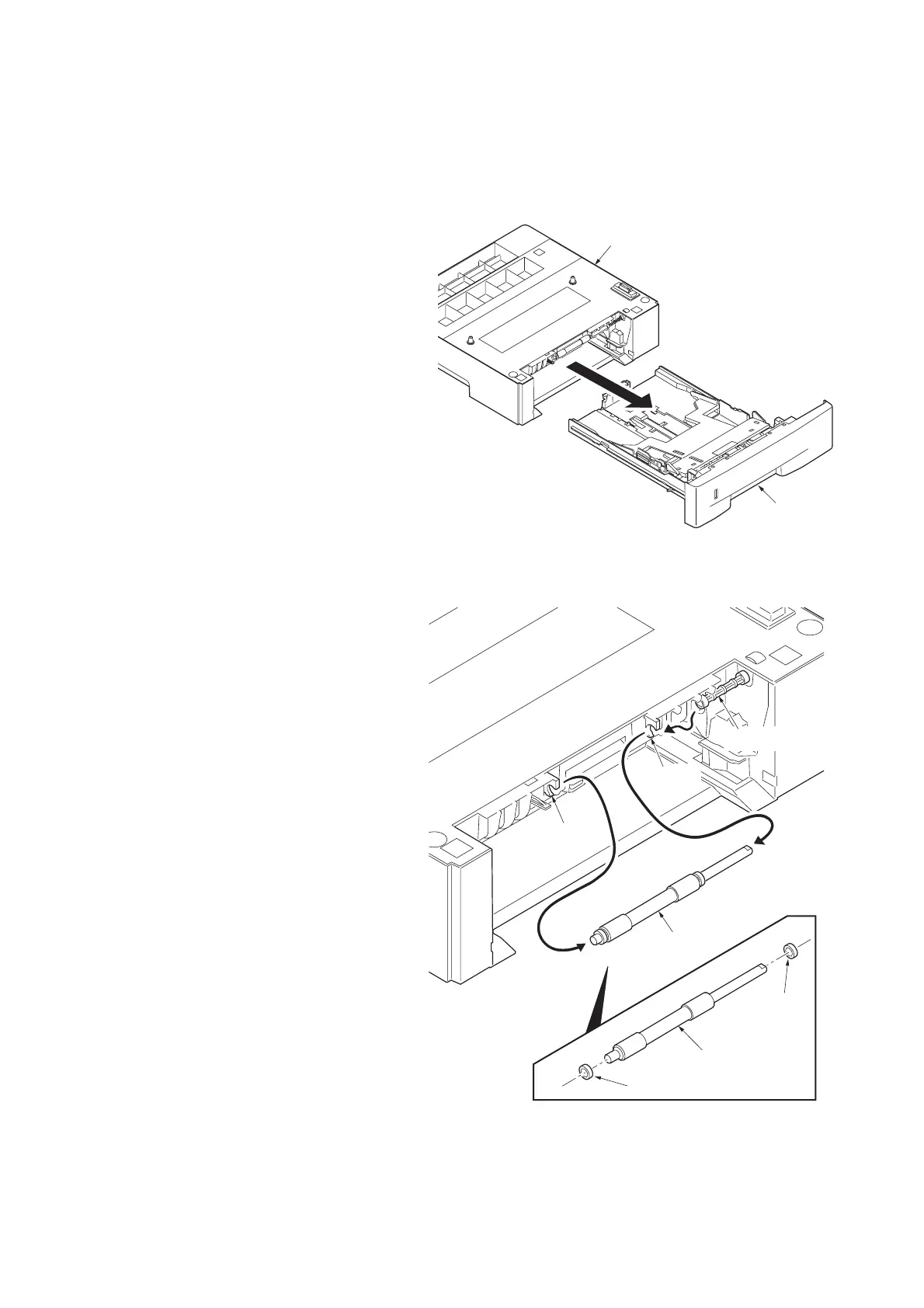

Figure 1-4-1
2. Remove the middle roller assembly from the
middle C shaft and holders.
3. Remove two bearings from the middle roller.
Figure 1-4-2
Paper feeder
Cassette
Middle roller
assembly
Middle C shaft
Holder
Holder
Middle roller
Bearing
Bearing
