Kyocera FS-1300D - Pwbs; Detaching and Refitting the Control PWB

2H5/2HS
1-5-19
1-5-8 PWBs
(1) Detaching and refitting the control PWB
Procedure
1. Remove the right cover (See page 1-5-4).
2. Remove the connectors form the control
PWB.
Simplex model: Twelve
Duplex model: Thirteen
3. Release the wires from the wire clamps.

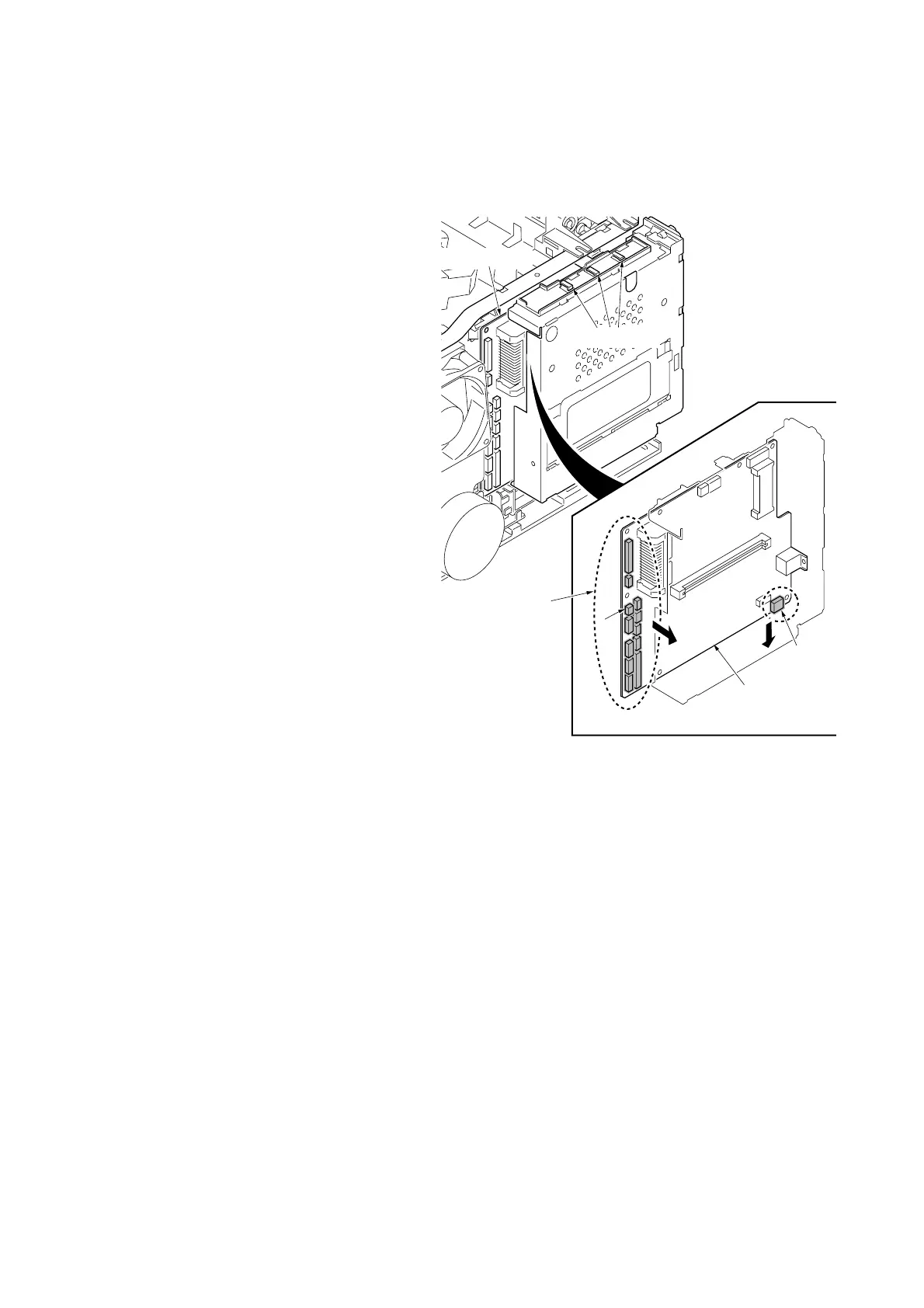

Figure 1-5-27
A
Connectors
Simplex model: Eleven
Duplex model: Twelve
A: Duplex model only
Connector
Control PWB
Control PWB
Wire clamps
