Kyocera FS-1300D Service Manual

2H5/2HS
1-5-25
(4) Detaching and refitting the high voltage PWB
Procedure
1. Remove the developing unit (See page 1-5-
11).
2. Remove the drum unit (See page 1-5-12).
3. Remove the cassette (See page 1-5-6).
4. Remove the outer covers (See page 1-5-3).
5. Remove the power source PWB (See page
1-5-22).
6. Turn the printer with the bottom side up.
7. Simplex model: Proceed to the step 12.
Duplex model: Proceed to the step 8.

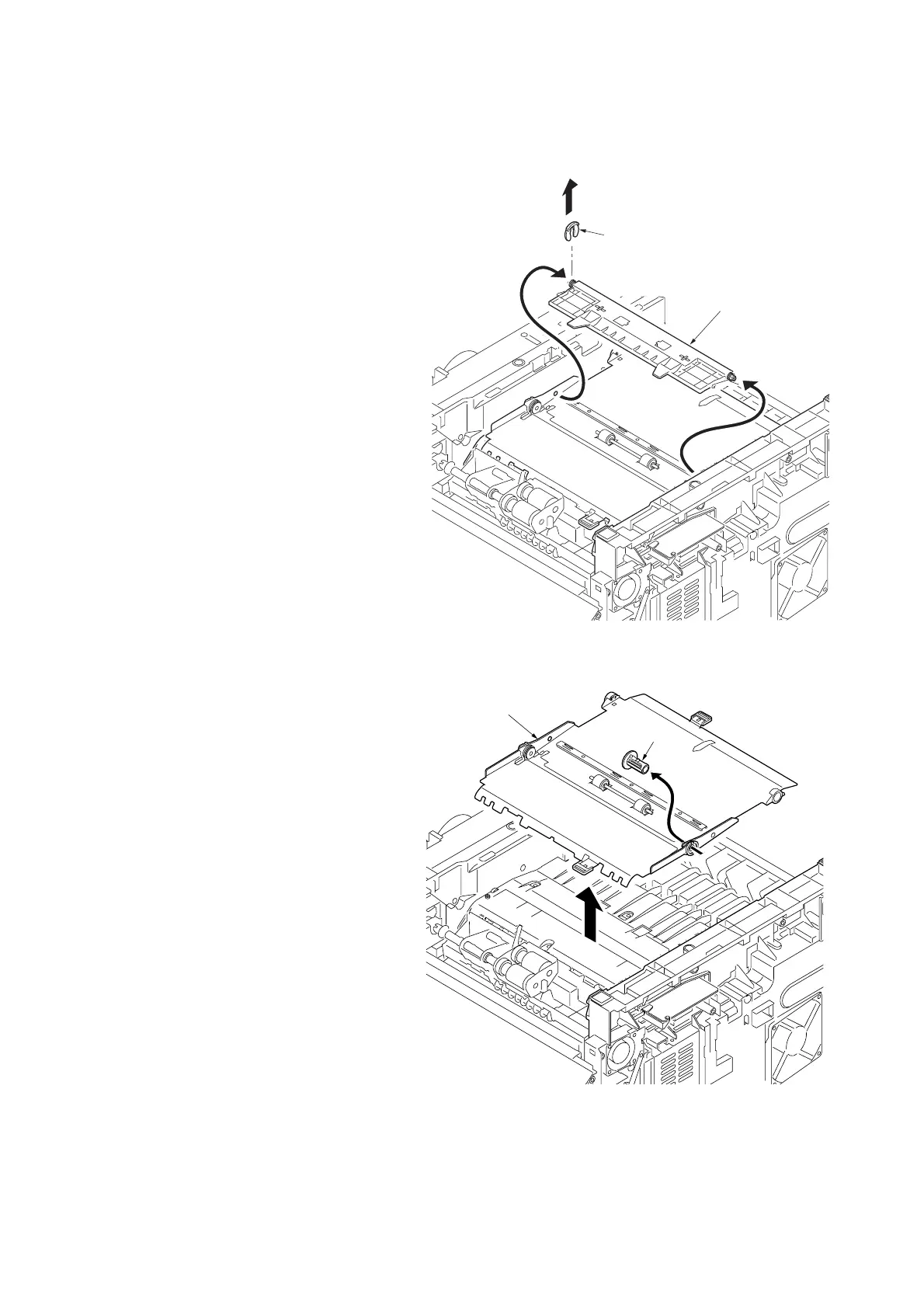

8. Remove the stop ring.
9. Remove the DU holder.
Figure 1-5-34
10. Pull out the DU bush.
11. Remove the DU cover assembly.
Figure 1-5-35
Stop ring
DU holder
DU bush
DU cover assembly

Kyocera FS-1300D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Processor model	PowerPC 405F5
Maximum internal memory	528 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Maximum input capacity	800 sheets
Standard media sizes	105 x 148 mm - 215.9 x 297
Compatible operating systems	Windows, Mac OS X
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Maximum duty cycle	20000 pages per month
Display	LCD
Certification	TÜV/GS, CE, PTS
Power consumption (printing)	439 W
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 250 mm
