Kyocera FS-1300D - Detaching and Refitting the Retard Roller Assembly (Retard Roller)

3LF
1-4-4
(2) Detaching and refitting the retard roller assembly (retard roller)
Procedure
1. Remove the cassette from the paper feeder.
2. Push the cassette holder down until it locks.

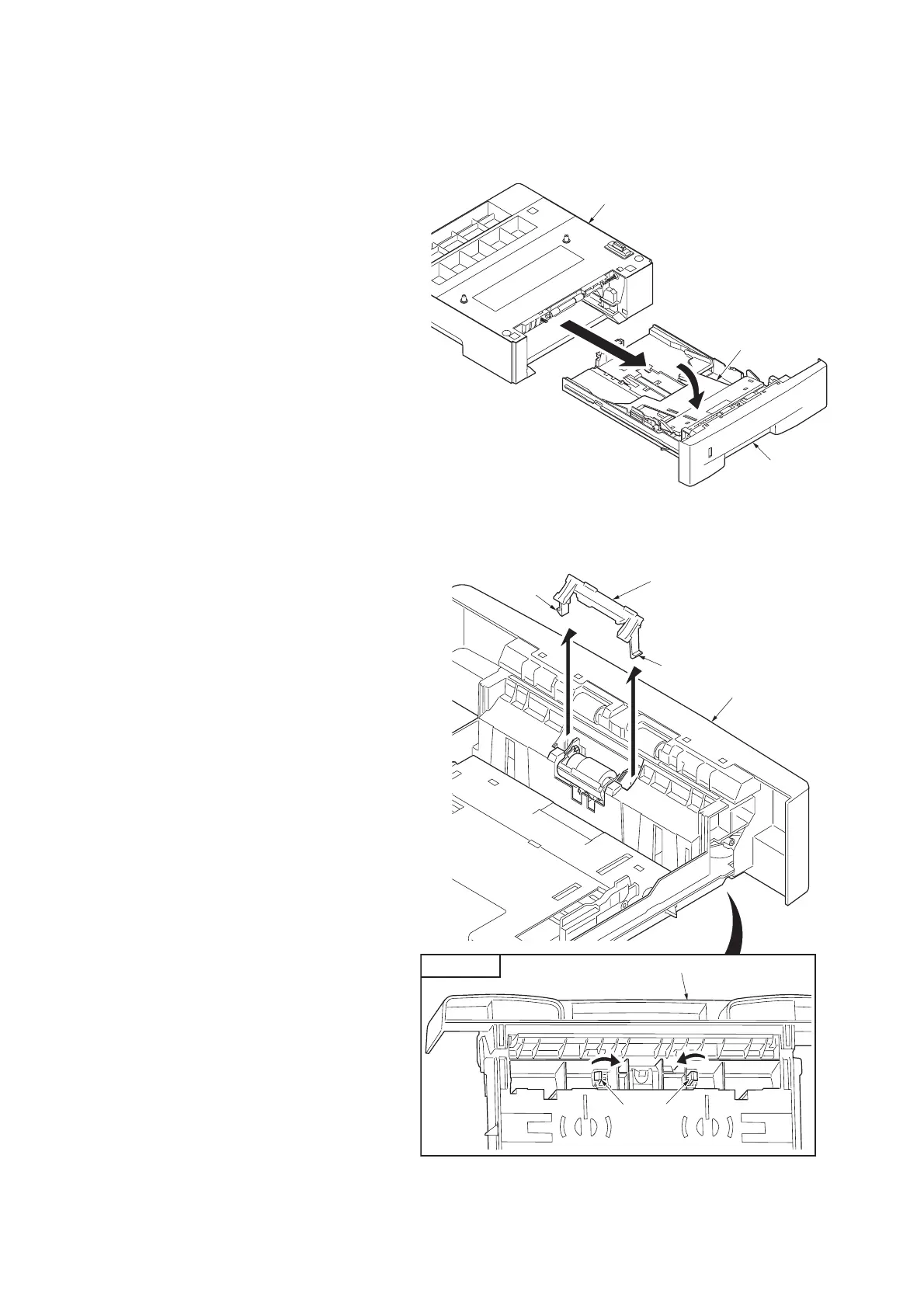

Figure 1-4-4
3. Unhook two hooks and then remove the
retard guide.
Figure 1-4-5
Cassette holder
Paper feeder
Cassette
Bottom view
Retard guide
Hook
Cassette
Cassette
Hook
Hook
Hook
