Kyocera FS-1300D Service Manual

2H5/2HS
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper
feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed paper to the transfer/
separation section.
(1) Cassette paper feed section

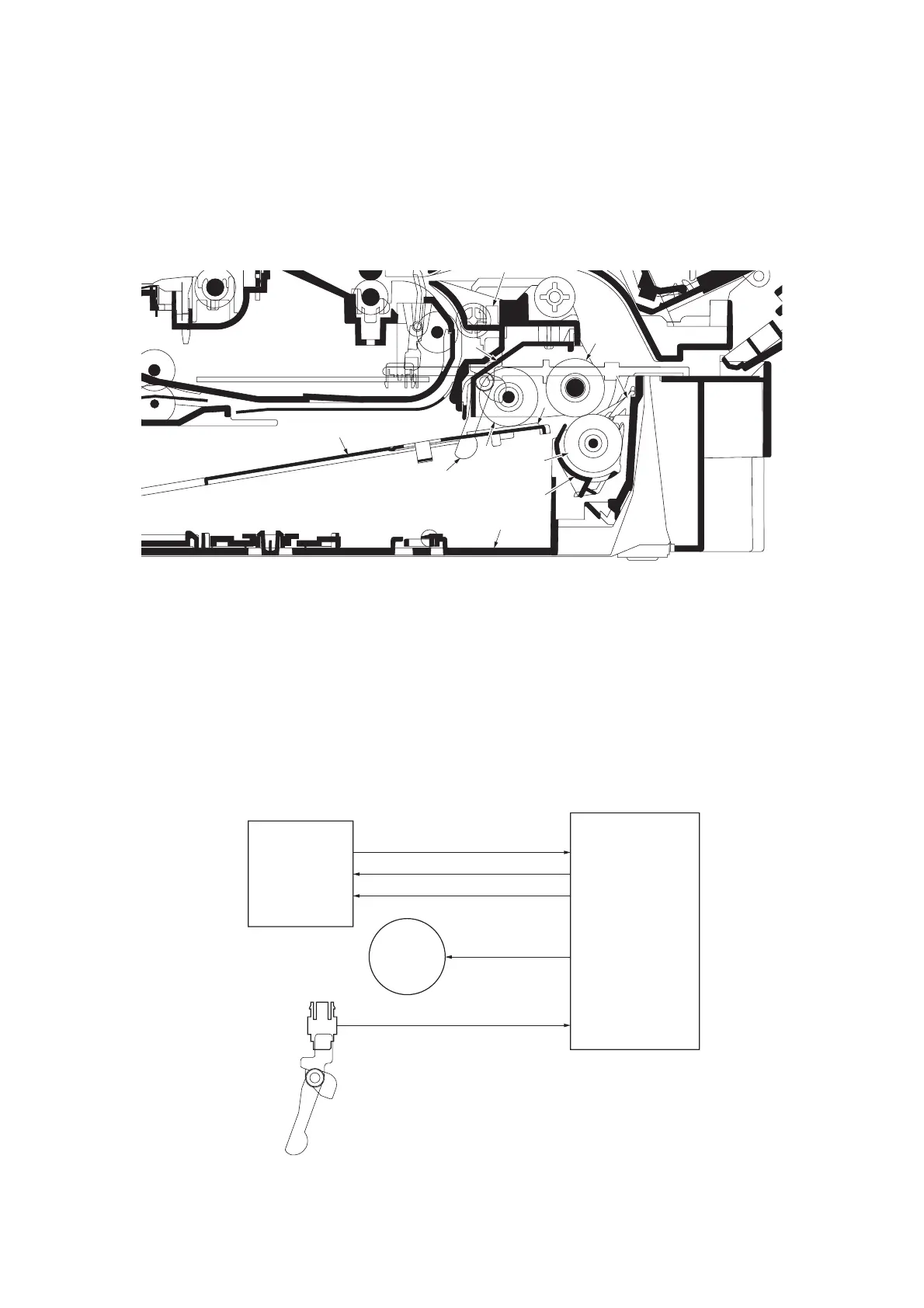

Figure 2-1-1 Cassette paper feed section
Figure 2-1-2Cassette paper feed section block diagram
1
9
7
3
4
5
2
6
8
10
11
(1) Pickup roller
(2) Paper feed roller
(3) Feed holder
(4) Retard roller
(5) Retard holder
(6) Retard guide
(7) Bottom plate
(8) Bottom pad
(9) Cassette base
(10) Paper sensor
(11) Actuator (paper sensor)
FEDDRN
MMOTRDYN
YC306-3
Paper sensor
Paper feed
Clutch
Main motor
Control PWB
PAPER
MOTCLK
REMOTEN
YC308-4
YC305-3
YC305-4
YC305-5

Kyocera FS-1300D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Processor model	PowerPC 405F5
Maximum internal memory	528 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Maximum input capacity	800 sheets
Standard media sizes	105 x 148 mm - 215.9 x 297
Compatible operating systems	Windows, Mac OS X
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Maximum duty cycle	20000 pages per month
Display	LCD
Certification	TÜV/GS, CE, PTS
Power consumption (printing)	439 W
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 250 mm
