Kyocera FS-C2026MFP+ - Page 176

2MA/2MB
1-5-14

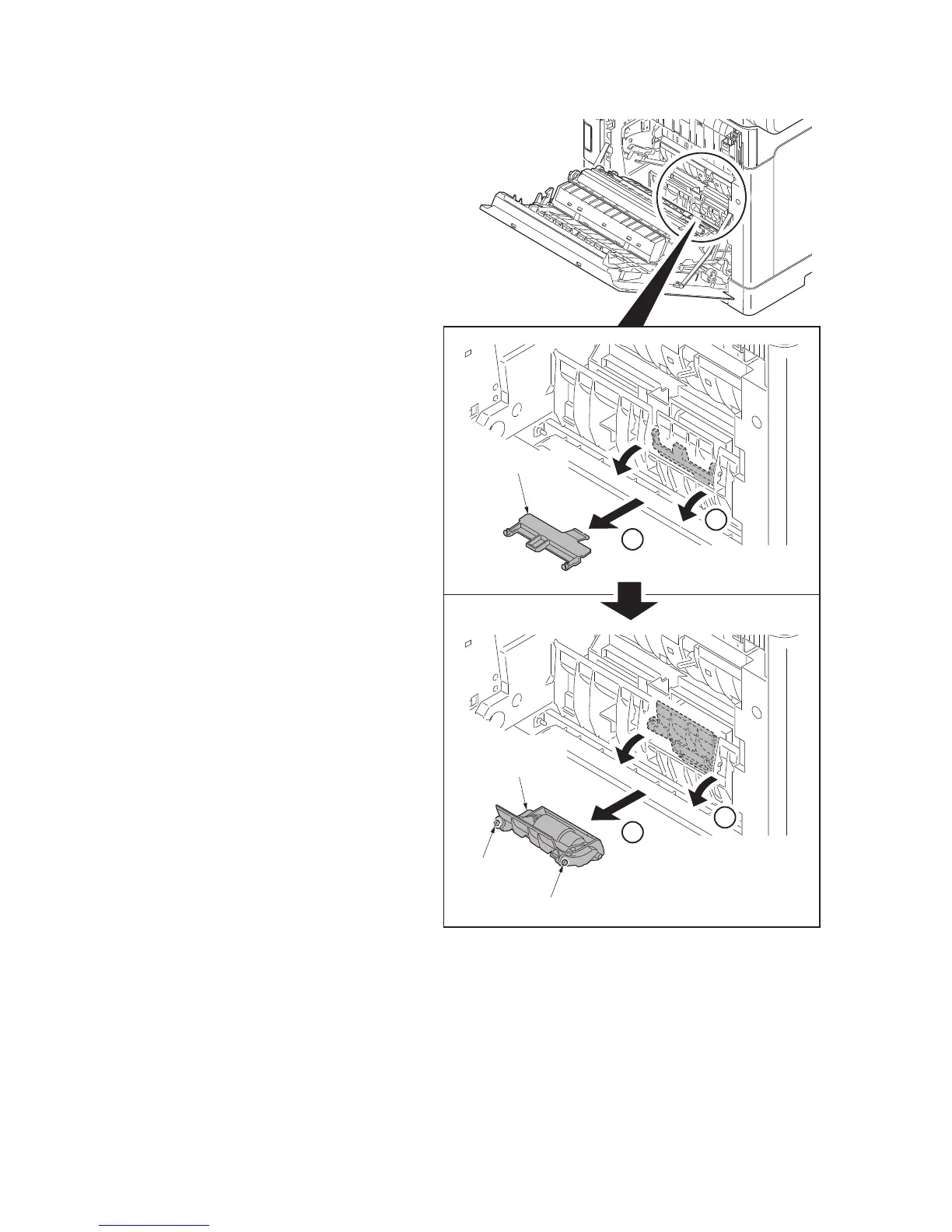

4. Pull the retard cover down and remove.
5. Release two hooks and then remove
the retard roller unit.
6. Check or replace the retard roller unit
and refit all the removed parts.
Figure 1-5-21
Retard cover
Retard
roller unit
Hook
Hook
1
2
1
2
