Kyocera FS-C2026MFP+ - Detaching and Refitting the Transfer Roller Unit

2MA/2MB
1-5-25
(2) Detaching and refitting the transfer roller unit
Procedure
1. Open the paper conveying unit.
2. Release two hooks and then remove
the transfer roller unit.
3. Check or replace the transfer roller unit
and refit all the removed parts.

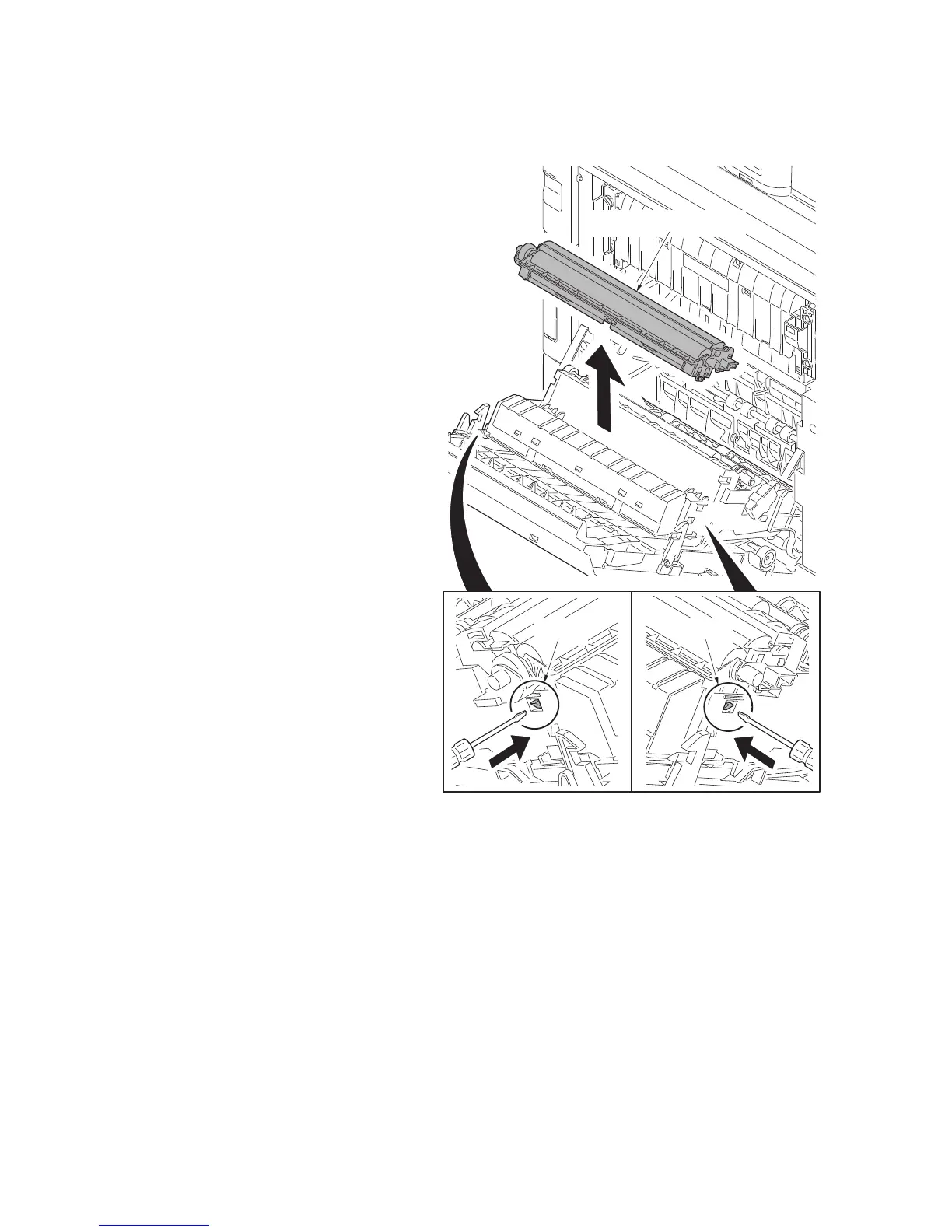

Figure 1-5-36
Transfer roller unit
HookHook
