2MA/2MB
1-5-48

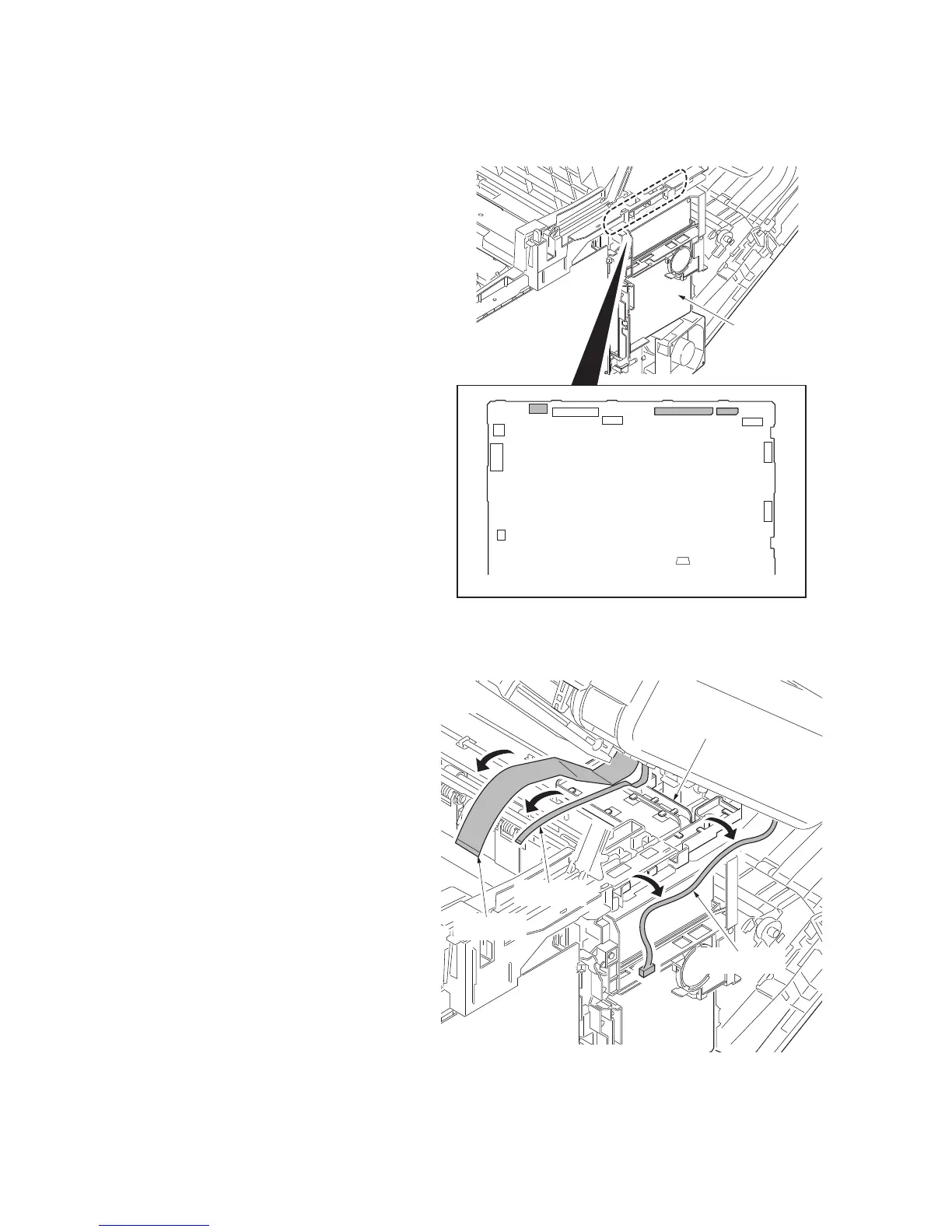

(2) Detaching and refitting the scanner unit
Procedure
1. Remove the document processor (see
page 1-5-52).
2. Remove the connector (YC36) and two
FFCs (YC8, YC43) from main PWB.
3. Open the scanner unit.
Figure 1-5-72
4. Remove the motor wire, CCD wire and
LCD wire from the wire holder.
Figure 1-5-73
YC36 YC8 YC43
Main PWB
Main PWB
CCD wire
Motor wire
LCD wire
Wire holder
To Next Page
