Kyocera FS-C2026MFP+ User Manual

2MA/2MB
2-1-11
2-1-4 Optical section
The optical section consists of the image scanner section for scanning and the laser scanner section for print-
ing.
(1) Image scanner section
The original image is illuminated by the LED and scanned by the CCD image sensor in the CCD PWB (CCD-
PWB) via the five mirrors and ISU lens, the reflected light being converted to an electrical signal.
If a document processor is used, the image scanner unit stops at the position of the DP contact glass and
scans sequentially one row of the image on the original in synchronization with the moving timing of the origi-
nal in the sub scan direction by driving the DP.

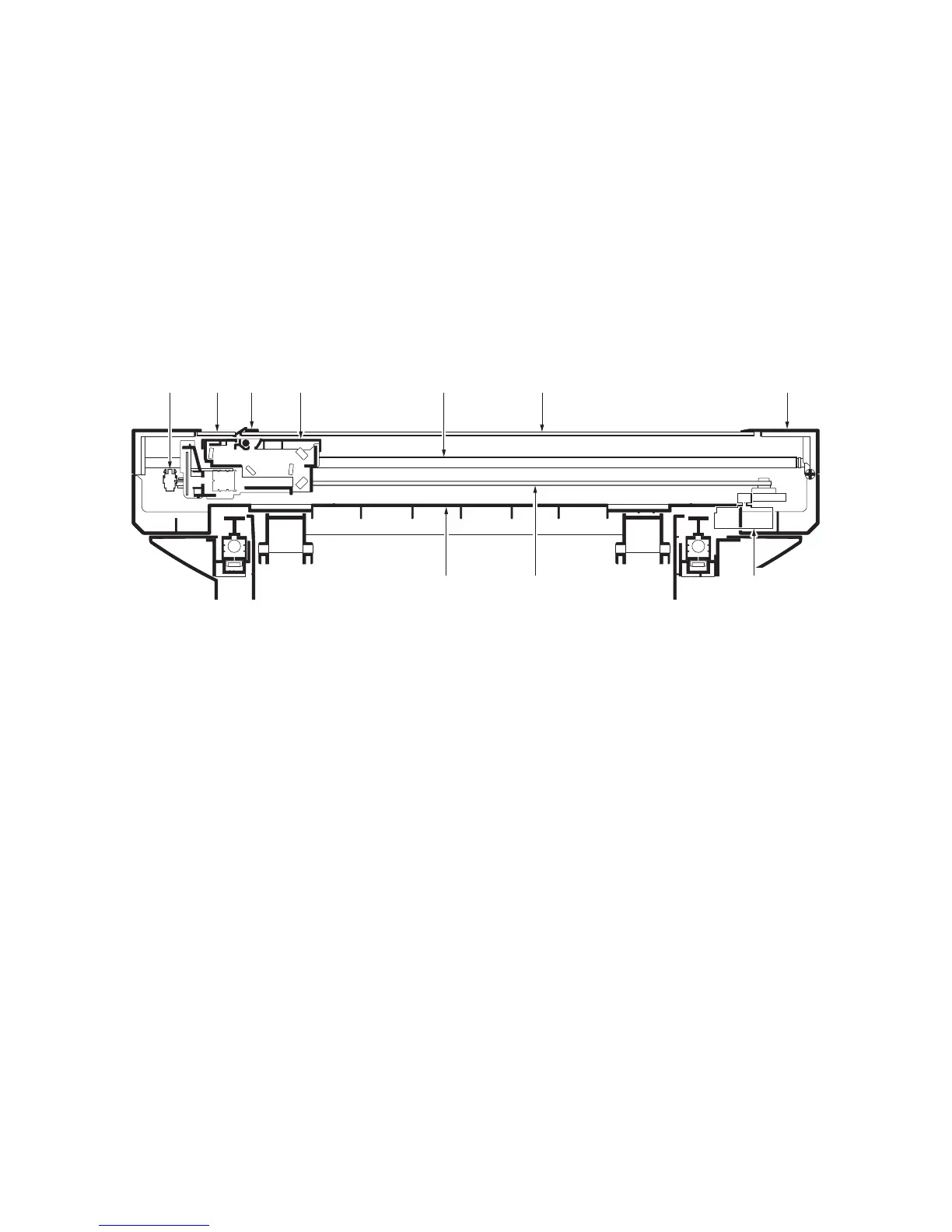

Figure 2-1-11 Scanner unit
5 6 10
2
9 17 43 8
1. Contact glass
2. DP contact glass
3. Original size indicator plate
4. ISU top frame
5. ISU bottom frame
6. ISU belt
7. ISU shaft
8. Image scanner unit (ISU)
9. Home position sensor (HPS)
10. ISU motor (ISUM)

Kyocera FS-C2026MFP+ Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Media thickness	0.11 mm
Scan file formats	JPG, PDF, TIFF, XPS
Dimensions (WxDxH)	514 x 550 x 580 mm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows, Mac 10.4+, UNIX LINUX
PCL fonts	93
Digital sender	No
Maximum duty cycle	65000 pages per month
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, FTP, USB
Grayscale levels	256
Maximum scan area	Legal (216 x 356) mm
Scan speed (black)	25 ppm
Scan speed (color)	35 ppm
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	1300 sheets
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Display	LCD
Market positioning	Business
Display number of lines	5 lines
Standard interfaces	Ethernet, USB 2.0
Memory slots	1
Internal memory	1024 MB
Processor model	464
Processor family	PowerPC
Maximum internal memory	2048 MB
Sound power level (standby)	30 dB
Sound pressure level (copying)	50 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	16 W
Power consumption (standby)	79 W
Power consumption (average operating)	466 W
Sustainability certificates	ENERGY STAR
Certification	TÜV/GS, CE
