2MA/2MB
1-5-13
1-5-3 Paper feed section
(1) Detaching and refitting the retard roller unit
Procedure
1. Open the paper conveying unit.
2. Pull the middle roller unit forward to the
hook.
3. While pressing the right and left hooks
outwards, unlatch the shaft from the rail
and remove the middle roller unit.

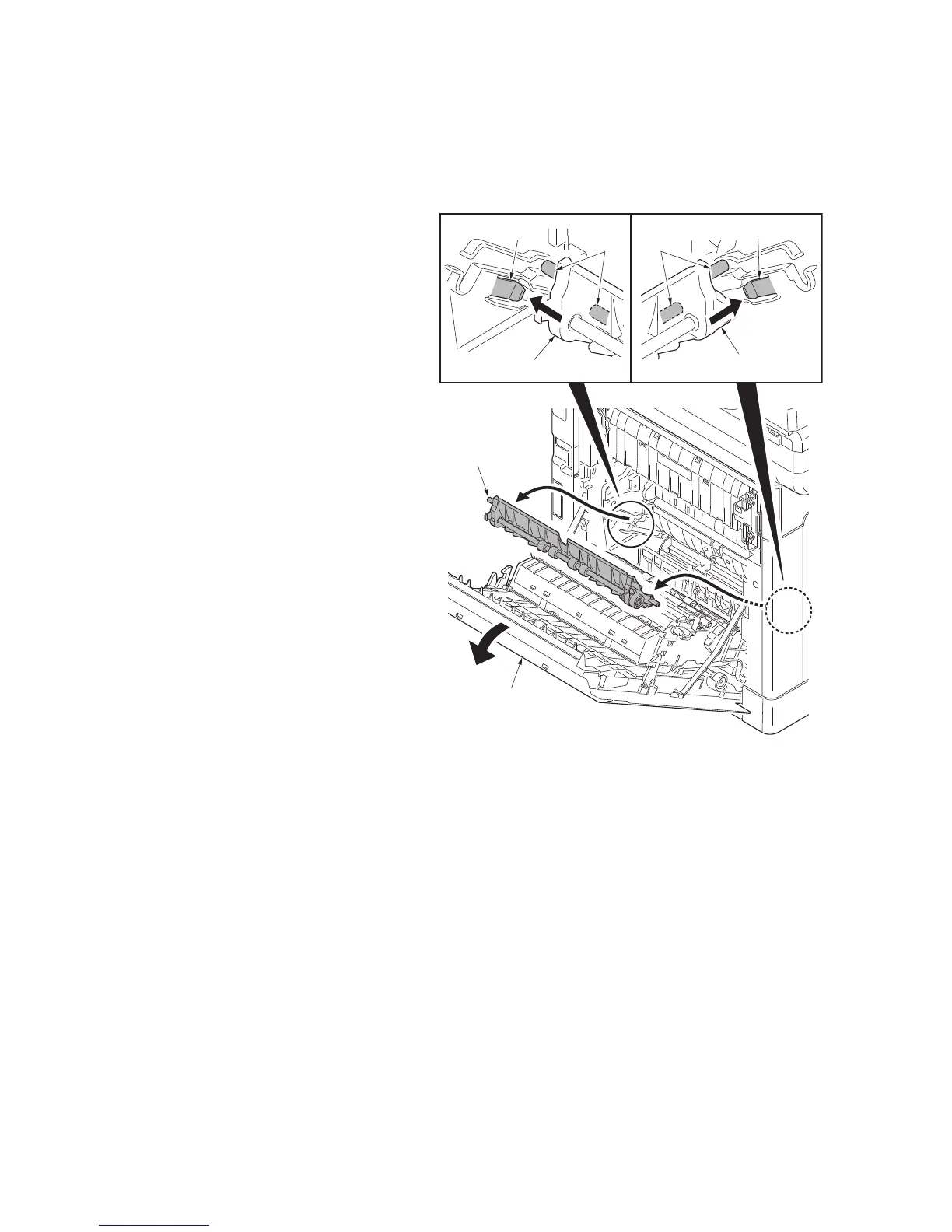

Figure 1-5-20
Middle
roller unit
Paper
conveying unit
Middle roller unit
Middle roller unit
Shafts
Shafts
Hook
Hook
