Kyocera FS-C2026MFP+ - Detaching and Refitting the DP Paper Feed Pulley Unit

2MA/2MB
1-5-56
(2) Detaching and refitting the DP paper feed pulley unit
Procedure
1. Open the DP top cover.
2. Remove the screw.
3. Release three hooks and then remove
the DP rear cover.

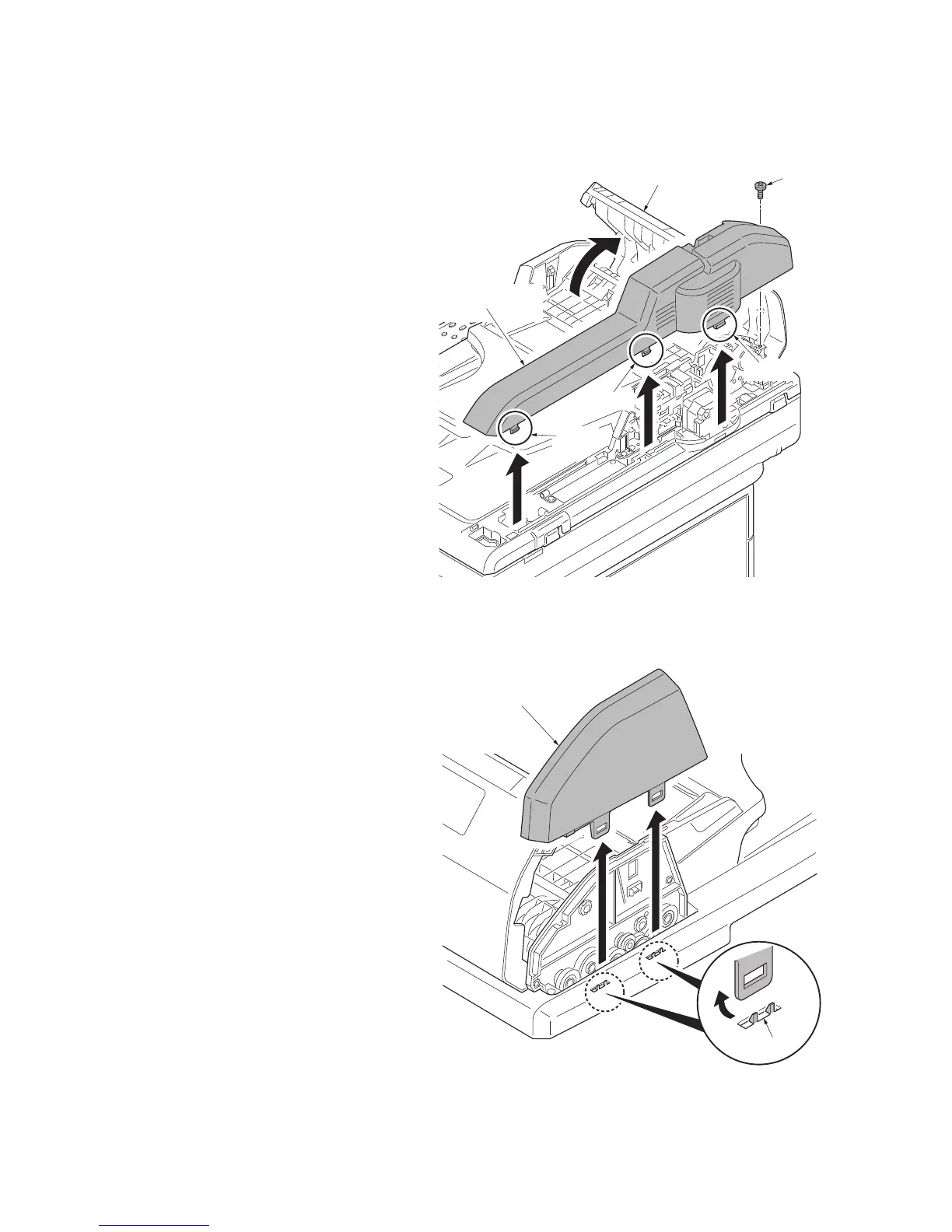

Figure 1-5-86
4. Release two hooks and then remove
the DP front cover.
Figure 1-5-87
Screw
DP top cover
Hook
Hook
Hook
DP rear cover
DP front cover
Hooks
