Kyocera FS-C2026MFP+ - Page 212

2MA/2MB
1-5-50

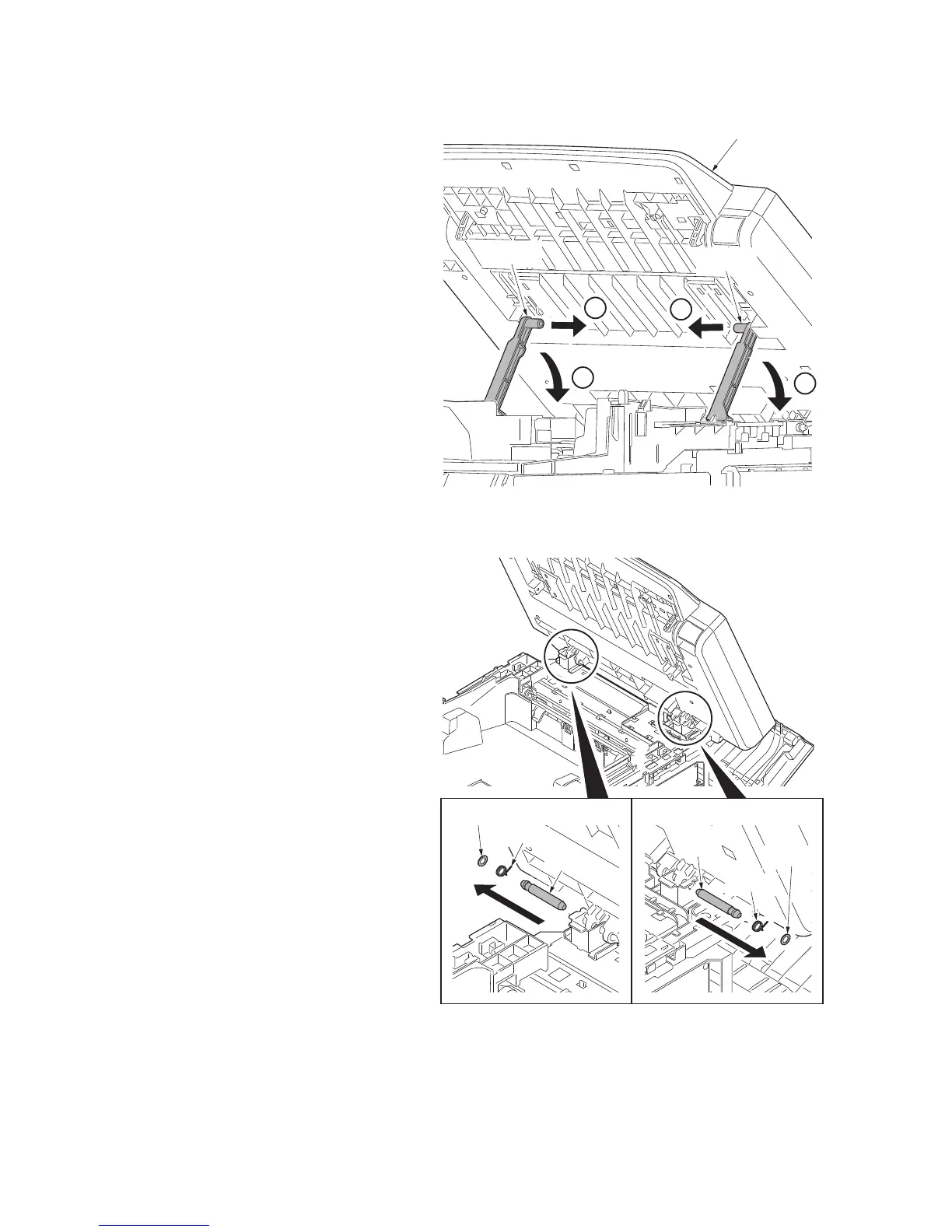

7. Remove left and right rails from the
scanner unit.
Figure 1-5-76
8. Remove left and right washers and
springs and then pull pins out.
Figure 1-5-77
Holder
Holder
Scanner unit
1
1
2
2
Washer
Washer
Spring
Spring
Pin
Pin
