Kyocera FS-C2026MFP+ User Manual

2MA/2MB-1
1-3-23
U425 Setting: [Adjust Original]
1. Measure the distance from the left edge to the black belt (a) of the original at A, B and C.
Measurement procedure
1) Measure the distance from the edge to the black belt (a) of the original at A (30 mm from
the leading edge), B (154.5 mm from the leading edge) and C (267 mm from the leading
edge), respectively.
2) Apply the following formula for the values obtained: ((A + C) / 2 + B) / 2
2. Enter the values solved using the cursor left/right keys or numeric keys in [MAIN].
3. Press the start key. The value is set.
4. Measure the distance from the leading edge to the black belt (c) of the original at D, E and F.
Measurement procedure
1) Measure the distance from the edge to the black belt (c) of the original at D (50 mm from
the left edge), E (105 mm from the left edge) and F (160 mm from the left edge), respec-
tively.
2) Apply the following formula for the values obtained: ((D + F) / 2 + E) / 2
5. Enter the values solved using the cursor left/right keys or numeric keys in [SUB LEAD].
6. Press the start key. The value is set.
7. Measure the length (G) from the edge of the black belt (b) to edge of the black belt (c) of the
original.
8. Enter the measured value using the cursor left/right keys or numeric keys in [SUB TAIL].
9. Press the start key. The value is set.

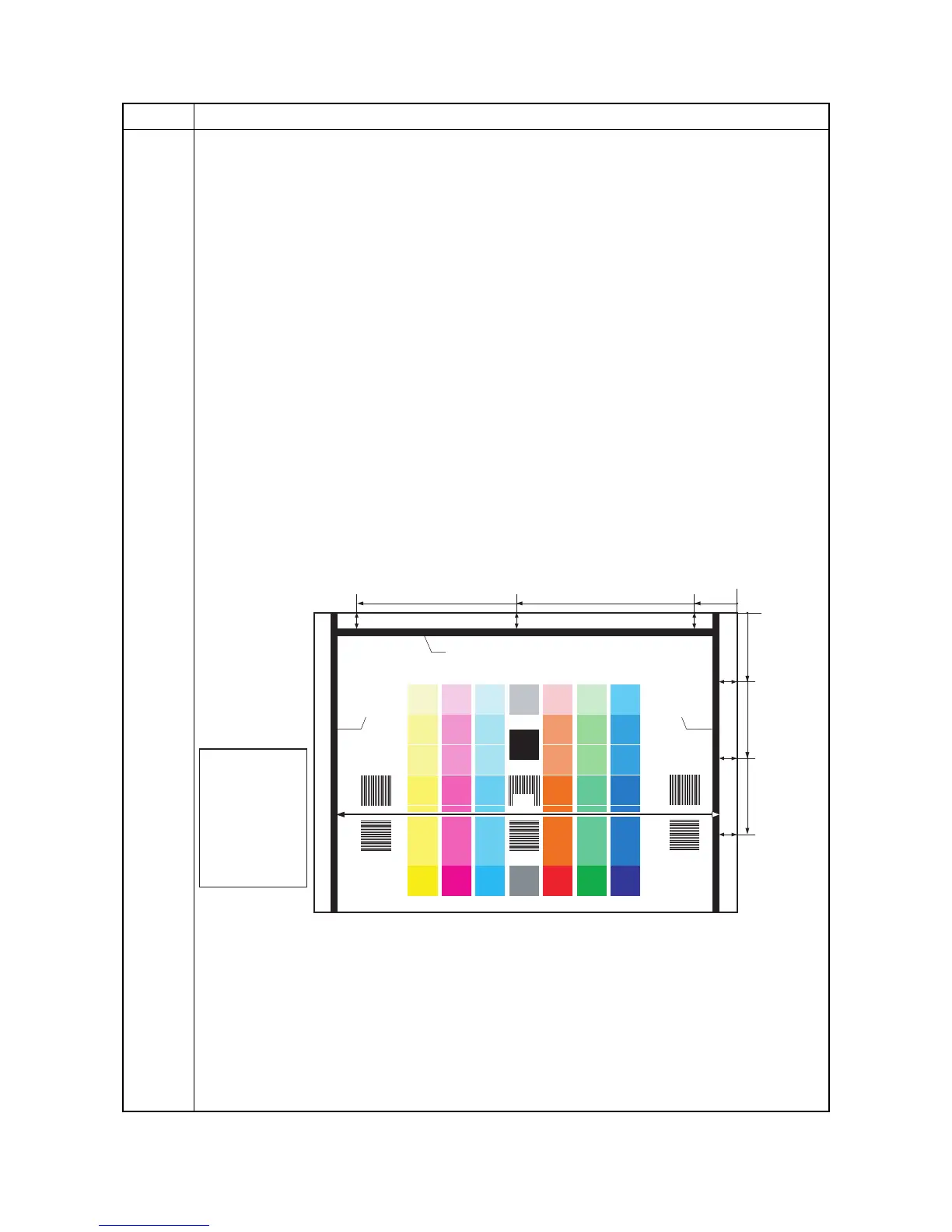

Figure 1-3-2
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
30mm
D
ABC
E
F
50mm
Left edge
Leading edge
black
belt (b)
Black
belt (a)
105mm
160mm
154.5mm267mm
G
Original for adjustment (P/N: 302FZ56990)
Black
belt (c)
[ Main ] =
((A+C)/2+B)/2
[ Sub Lead ] =
((D+F)/2+E)/2
[ SubTail ] = G
