6. Push the fitting portions of the MP upper
cover. Remove the MP upper cover from the
MP unit.

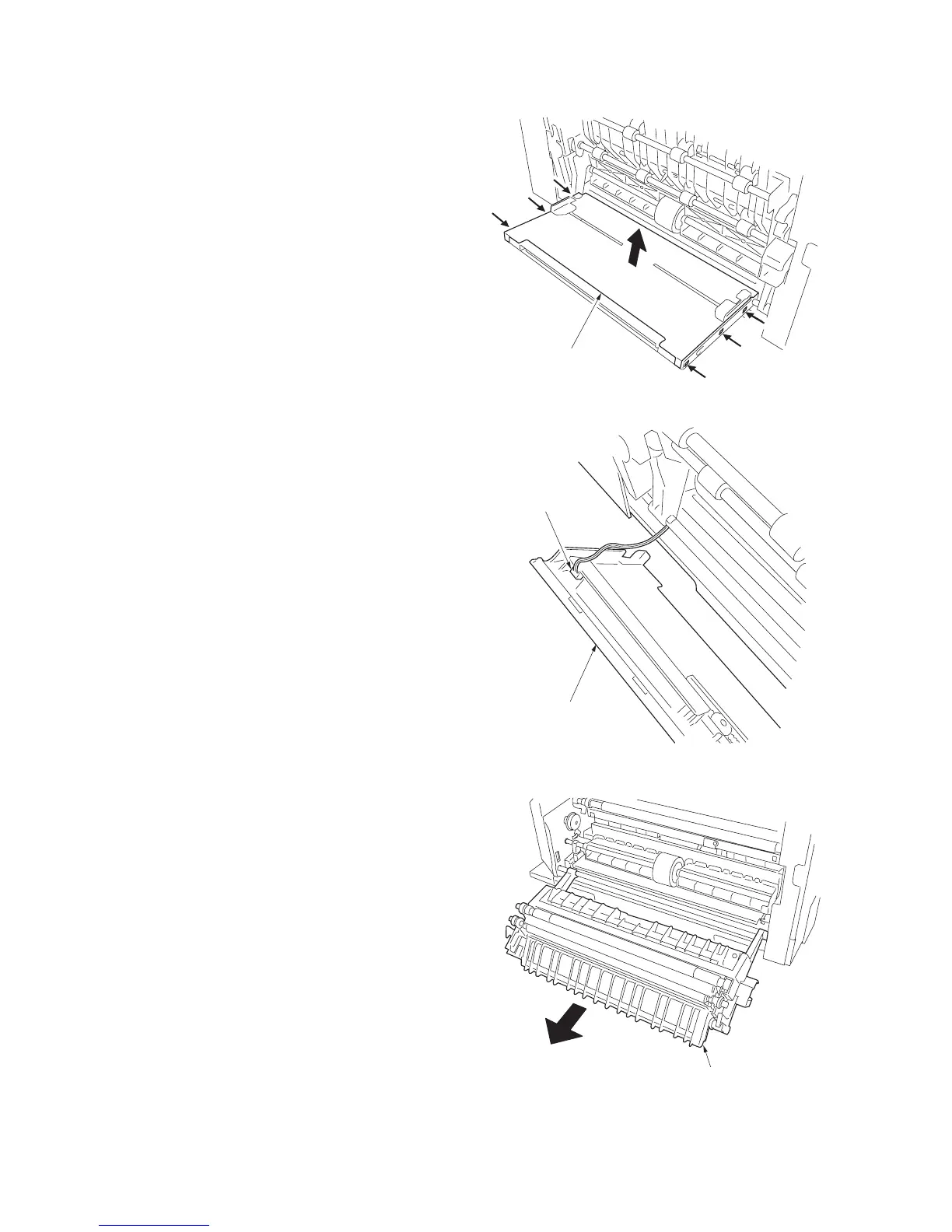

Figure 1-5-12
7. Detach the connector and remove the MP
lower cover from the copier.
Figure 1-5-13
8. Remove the paper conveying unit from the
copier.
Figure 1-5-14
MP upper cover
MP lower cover
Connector
Paper conveying unit
