2HA/2HB
1-5-33
(5) Detaching and refitting the heat roller
Follow the procedure below to replace the heat roller.
Procedure
1. Remove the fuser unit and separate the
fuser right unit and left unit (see pages 1-5-
28, 30).
2. Remove the heat roller separation claws.
(see page 1-5-32).
3. Pull out the heat roller bushing from the
fuser left unit and then remove the heat
roller.
4. Replace the heat roller and refit all the
removed parts.

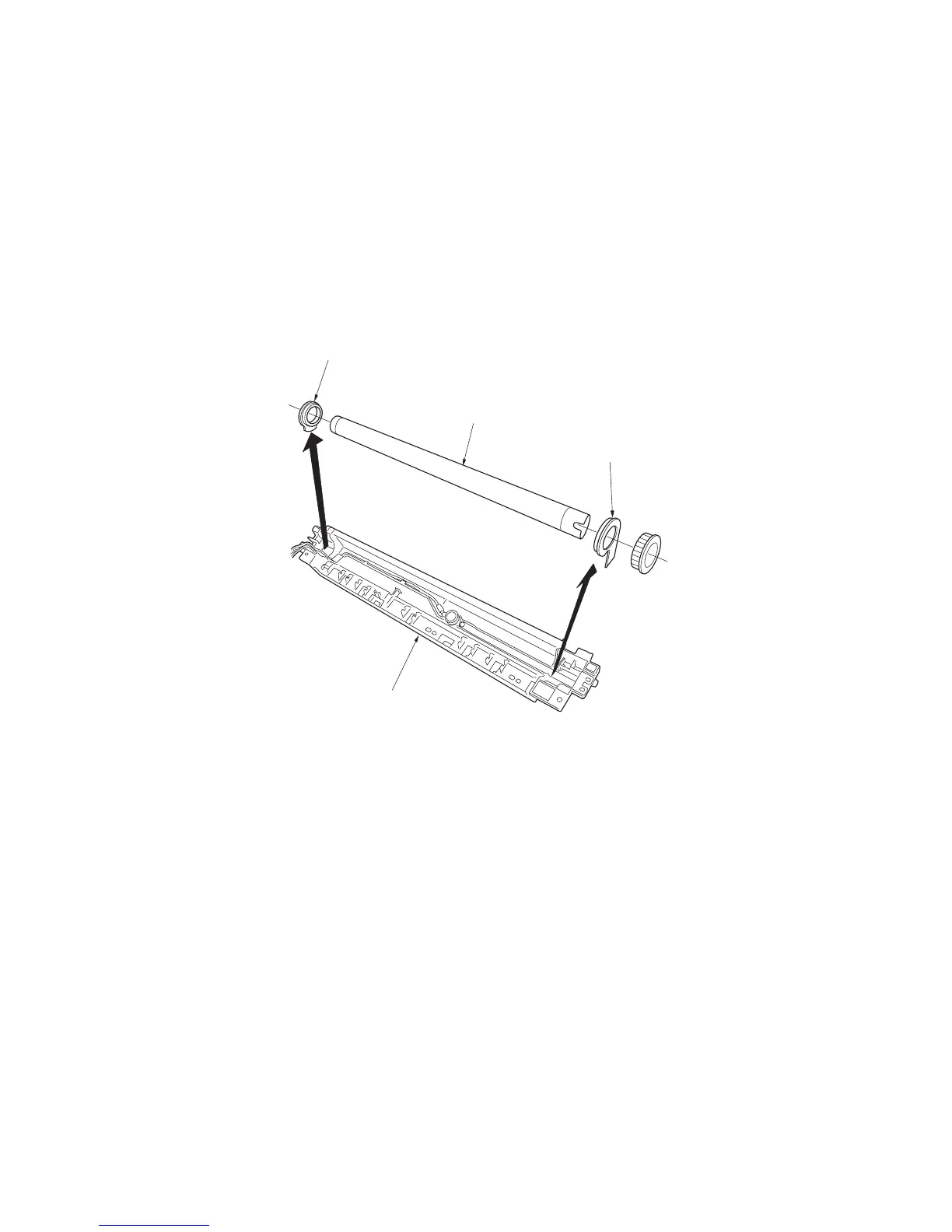

Figure 1-5-69
Fuser left unit
Heat roller
Heat roller bushing
Heat roller bushing
