Page 5-32
5-4 Registering Box Information
(3) F-Code Based Relay box
Perform the following procedure when you want to register or change the fax’s F-Code Based Relay box information.
1. Follow steps 1 through 6 under “5-1 Registering Self-Station Information” on page 5-2 and open the Address Editor for
FAX window. Then select the desired method of connection to the fax machine.

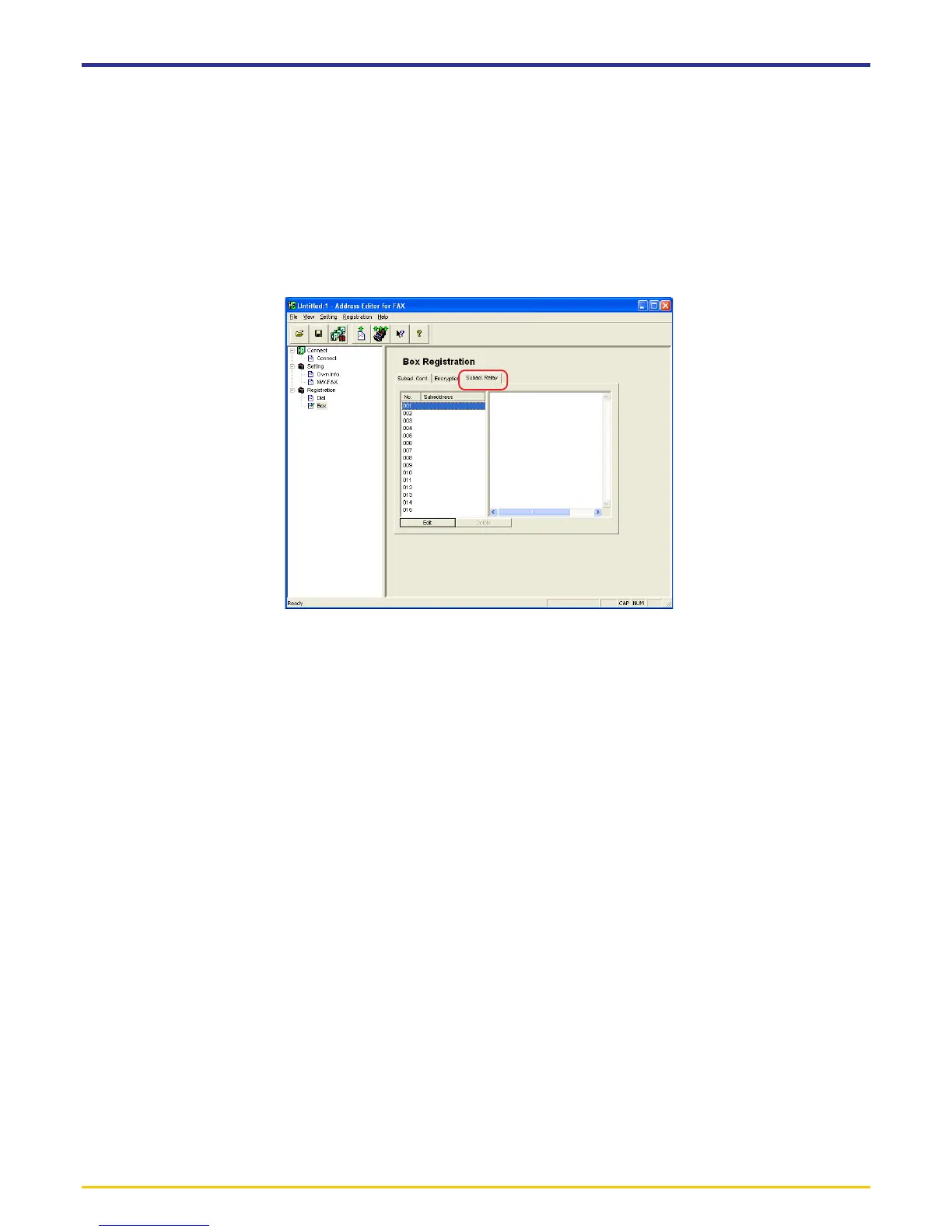

2. Point to the Box command under the Registration menu. The Box Registration window will appear.
3. Click on the Subad. Relay tab in the Box Registration window. The F-Code Based Relay box list will appear.
4. Select from that list the number of the box that you want to register or edit.
5. Click on the Edit button. The Subaddress Relay Box dialogue box will appear.
To Next Page
