Technical description

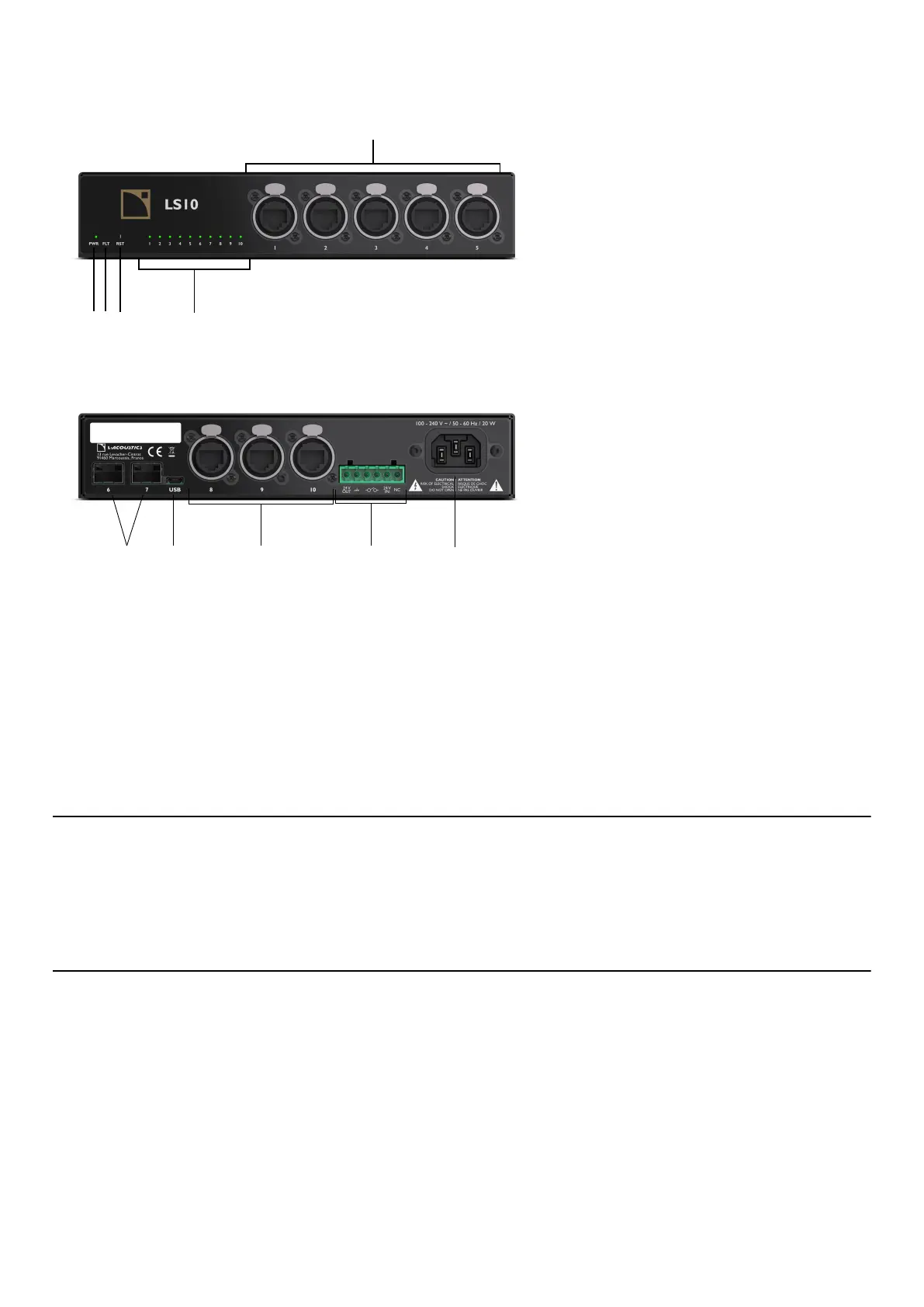

Front and rear panels
5
1 2
3
4
6 7 8 9 10
1 1 power indicator 6 2 SFP cages
2 1 fault indicator 7 1 female micro type USB port
3 1 Reset button 8 3 Ethernet etherCON I/Os
4 10 link status/port indicators 9 1 6-point terminal block, step 5 mm
5 5 Ethernet etherCON I/Os 10 1 Mains power input, IEC C13 V-Lock
compatible socket
Ethernet ports
LS10 features Ethernet ports that can operate at 10 Mbit/s, 100 Mbit/s or 1 Gb/s, in half-duplex or full duplex mode.
The operating mode and speed are automatically negotiated with the connected device. The 8 ports equipped with RJ45
also feature auto MDI/MDIX detection to use straight or crossover cables. LS10 supports the management of up to 150
AVB streams regardless of the number of channels of these streams.
Power supply
LS10 relies on a universal Switched Mode Power Supply (SMPS) suitable for mains from 100 V AC to 240 V AC (±
10%), 50 Hz to 60 Hz.
LS10 owner's manual (EN) version 1.0 11
