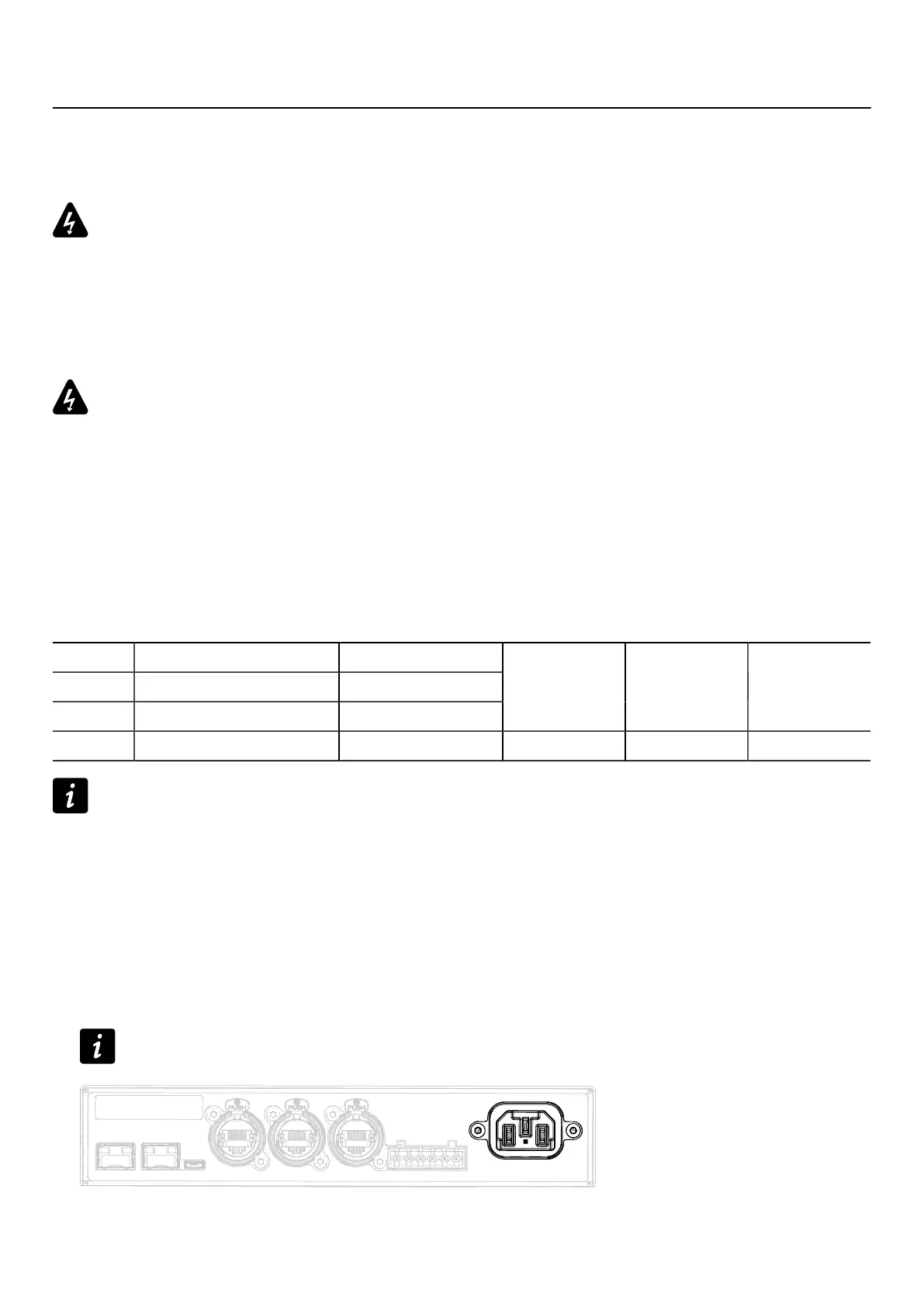

L-Acoustics LS10 - Connecting to AC Mains

Installation
Connecting to AC mains
Electrical specications
AC mains specications
Verify the electrical conformity and compatibility of the mains supply.
Only connect the product to an AC power outlet rated 100-240 V, 50-60 Hz.
The product draws 10 W (typical).
The product draws 20 W (typical) when it powers another LS10.
WARNING: The product is of CLASS 1 construction and shall be connected to a mains socket outlet with a
protective connection to earth.
Three-phase circuit
When the product is used in a three-phase circuit, verify the electrical conformity and
compatibility of the three-phase circuit.
Verify that the three phases work, and balance the loads between the three phases.
Verify that the neutral and earth work.
Never try to emulate a 230 V circuit connecting an apparatus to two live wires of a 120 V three-phase circuit.
Never try to emulate a 200 V circuit connecting an apparatus to two live wires of a 100 V three-phase circuit.
Power cord
The removable IEC cord is tted with a female IEC C13 connector with V-Lock at one end and a country-specic plug at
the other end.
type plug cable ratings live neutral ground
CE CEE 7/7, earthed 10 A / 250 V
CN GB 2099, earthed 10 A / 250 V
JP JIS C 8303, earthed 7 A / 125 V
brown blue green/yellow
US NEMA 5-15, earthed 10 A / 125 V black white green
Strictly apply the specic safety regulations of the country of use.
Do not defeat the ground connection of the supplied power cord using an adaptor or any other methods.
A suitable plug must be wired to the INT power cord.
If the power plug does not match the local power outlet, have a qualied electrician wire a suitable plug.
Verify that the plug conforms to the specic voltage and current rating given in section Electrical specications
(p.22).
Plugging to AC mains
Procedure
1. Connect the power cord female IEC C13 connector to the switch male IEC C14 socket.
Check that the cable is properly locked.
2. Connect the power cord country-specic plug to the mains socket.
22 LS10 owner's manual (EN) version 1.0
