Operation

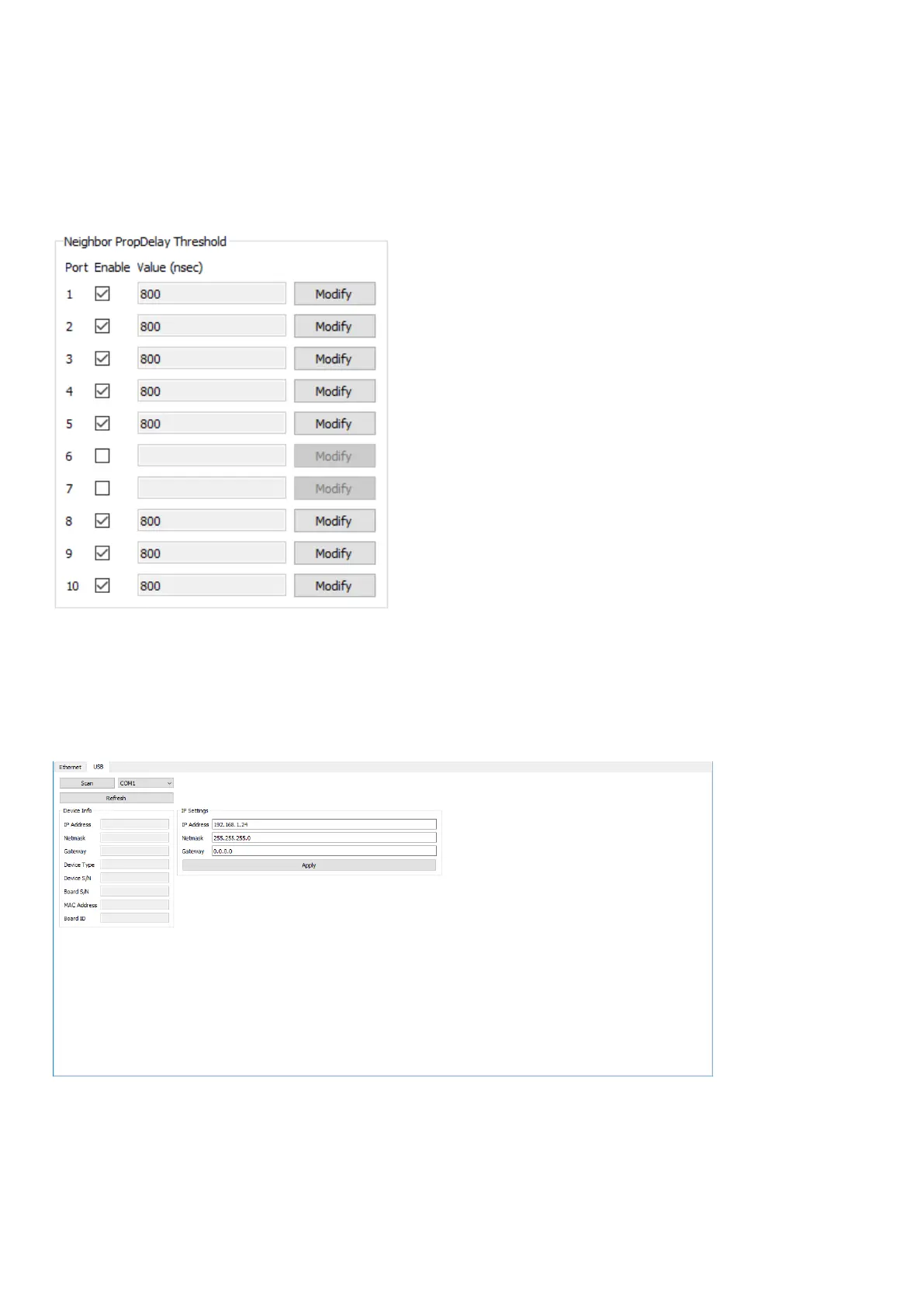

Neighbor PropDelay Threshold
The Neighbor PropDelay Threshold congures the gPTP parameters for maximum allowed propagation delay
on connected links. When the ports are equipped with RJ45, the default value is 800 nsec. If the SFP with RJ45 is
not congured this way, then check the corresponding port and enter the standard 800 ns value. When the ports
are equipped with optical modules, the option is disabled. If they are not automatically disabled, uncheck the ports
connected with optical modules. The port numbers on this window correspond to the port numbers on the front and rear
labels of LS10.
USB
When it is not possible to connect the device with Ethernet connectors, it is possible to at least identify the device
connected to the USB port.
It is also possible to set the IP address with the USB tab. Refer to Setting the IP via USB (p.28) for more information.
LS10 owner's manual (EN) version 1.0 35
