Installation

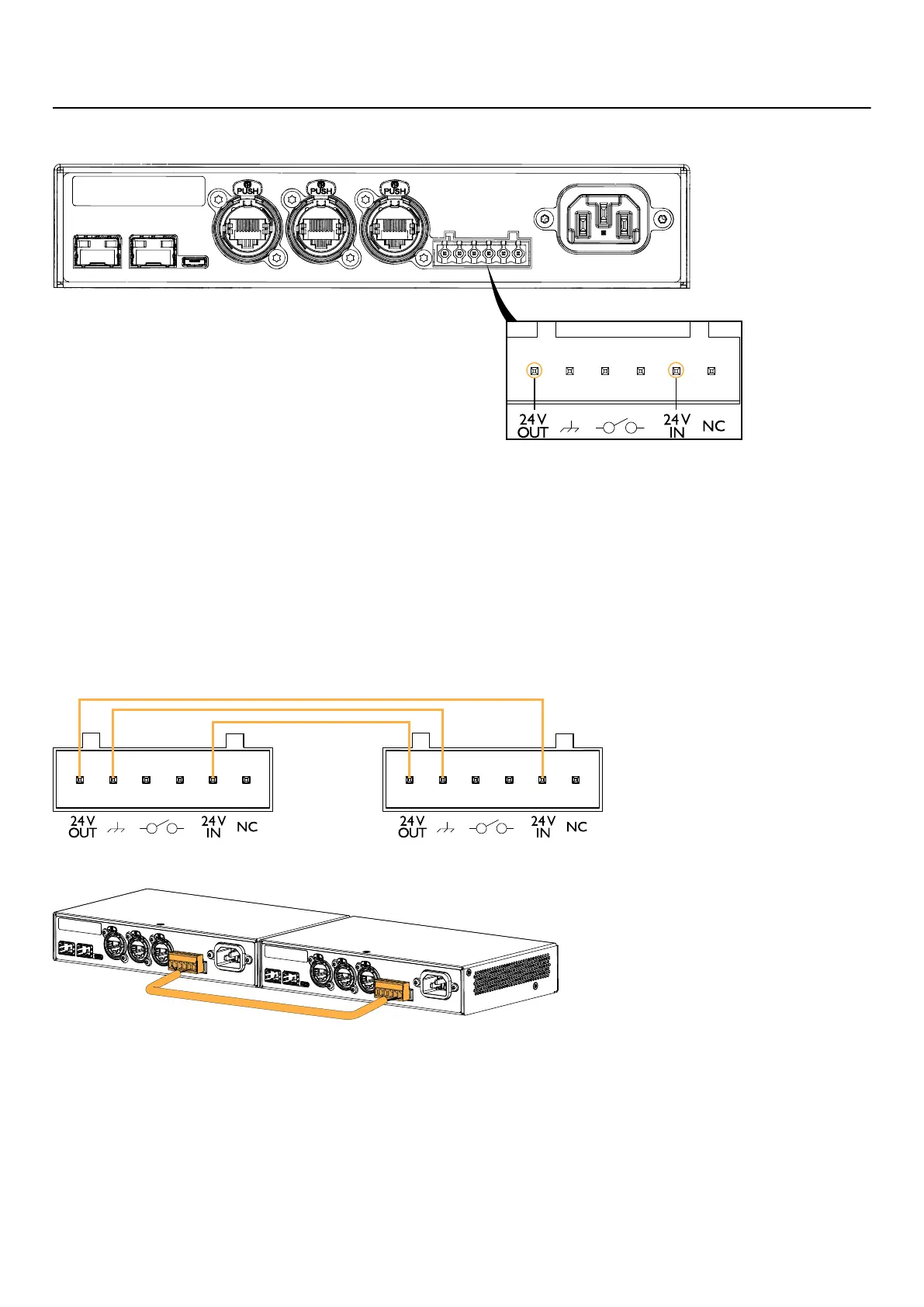

24 V DC Input and Output
24 V DC Input and Output pins allow to power another LS10 with a redundant powering.
It is also possible to power LS10 with an external power supply.
Backup power cable
In case of component fault inside one LS10, the other LS10 will automatically provide backup power thanks to this cable.
To do so, each LS10 must be connected to independent power sources.
This cable can be made with two Phoenix
™
connectors (reference MSTB 2,5/ 6-ST - 1754520 for example) and a cable
with three conductors such as Alpha Wire
™
(reference 1896L SL005). Connectors and cable conductors are connected as
follows:
• cable conductor from PIN 1 to PIN 5
• cable conductor from PIN 2 to PIN 2
• cable conductor from PIN 5 to PIN 1
Backup powering
LS10 owner's manual (EN) version 1.0 17
