Installation
Installation
Mounting
LS10 is one rack unit high (1U) and a half rack unit wide. LS10-RAKSHELF is a rigging accessory that can contain up to
two LS10 side by side. LS10-RAKSHELF is mounted to LA-RAK II AVB and can be mounted to LA-RAK II as well as other
19-inch racks.

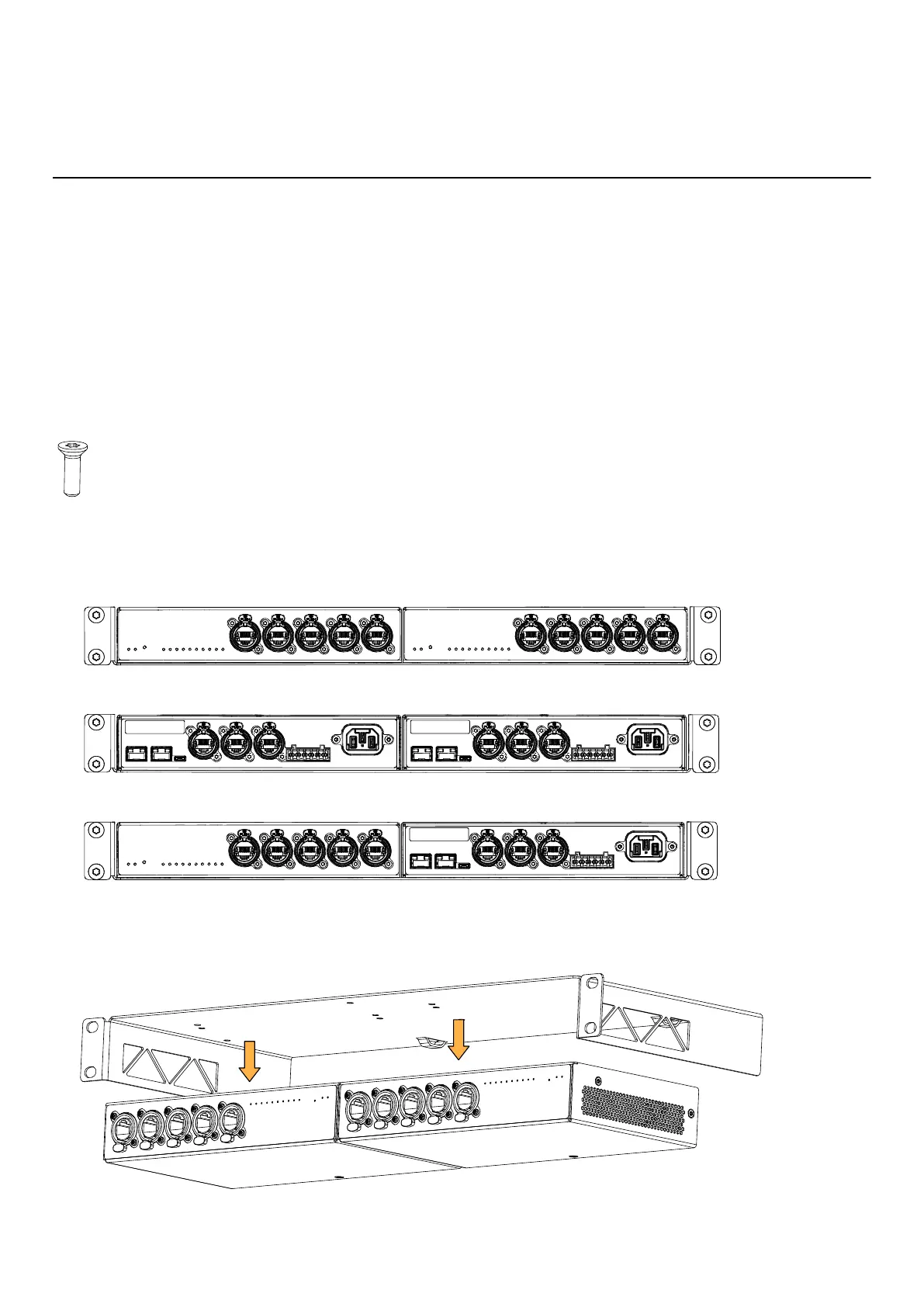

Mounting two LS10 on LS10-RAKSHELF
Tools
• torque screwdriver
• T10 Torx bit
Material
6 × M3×6 Torx screws
There are three different mounting congurations for LS10 on LS10-RAKSHELF:
• side by side in front position (default)
• side by side in rear position
• side by side with one in inverted position
Procedure
1. Turn upside down one or two LS10 and revert the LS10-RAKSHELF on top.
14 LS10 owner's manual (EN) version 1.0
