L-Acoustics LS10 User Manual

Installation
Ventilation
LS10 is equipped with one grill on each side to ventilate the system.
Do not block the side ventilation grills.
Install the switch with the side panels at a minimum distance of 5 cm (1.9 in)
*
from any external object or
structure.
The same distance of 5 cm must be guaranteed on both sides of the rack.
When rack-mounted, make sure airow is not reduced.
General Purpose Output (GPO)

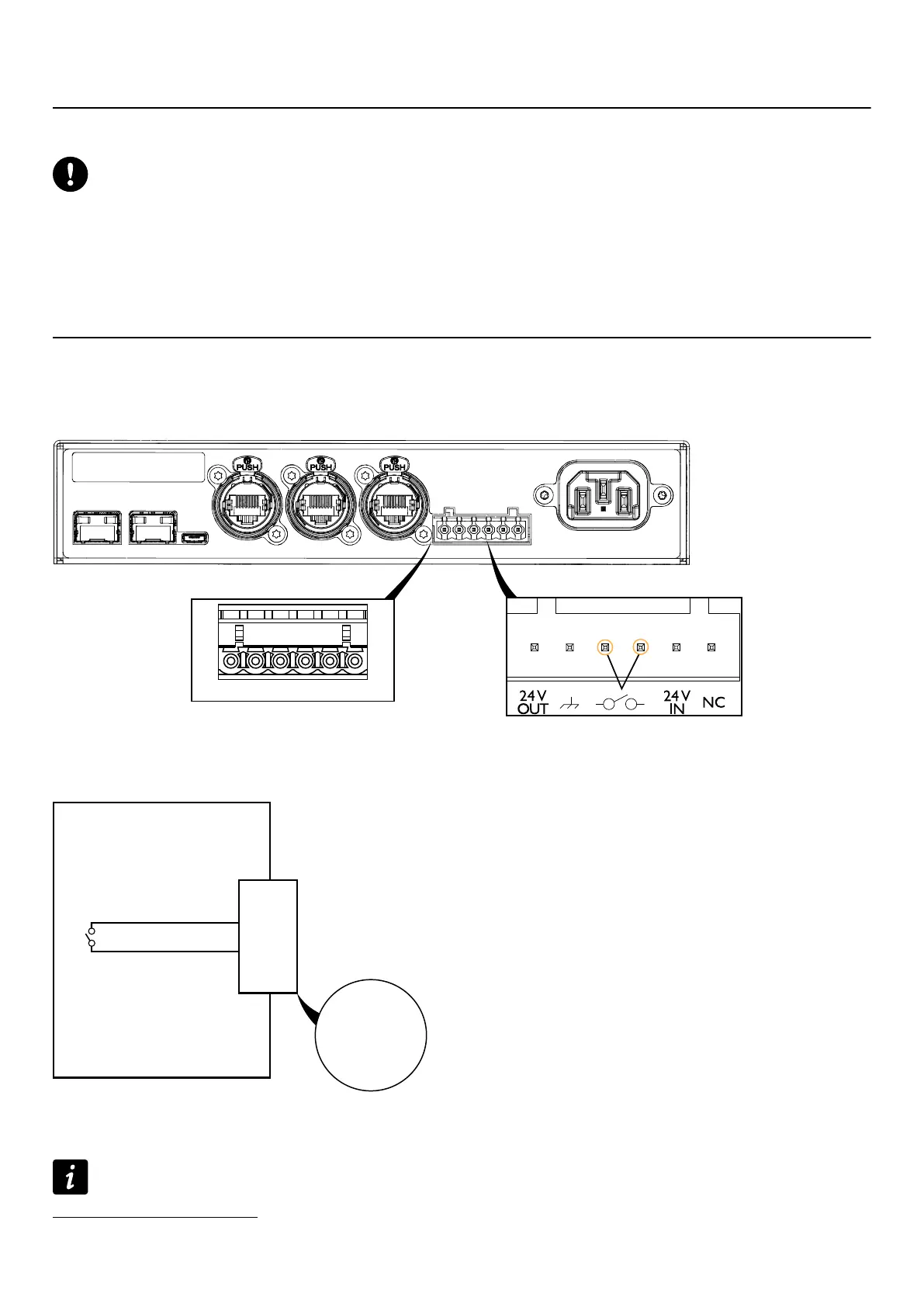

LS10 features a 6-point terminal block on the rear panel that includes a congurable GPO to indicate the presence of a
fault on the LS10. It can be connected with a 6-point terminal block.
The pitch of the connector is 5 mm.
GPO
6-point terminal block
GPO is controlled by a Normally Open (NO) relay that can operate in a circuit with up to 30 V DC, 1 A.
Relay max rating
6-point
terminal block
30 V DC, 1 A
GPO
PIN 3
PIN 4
Relay is open when the unit is unpowered.
GPO can be congured using the L-Acoustics Switch Conguration Tool.
For more information, refer to the Using Switch Conguration Tool (p.25) section.
*
This distance is respected when mounted in LA-RAK II AVB.
16 LS10 owner's manual (EN) version 1.0
