– turning the bulb holder counter-
clockwise, remove it out of the
mounting bracket;
– remove the bulb out of the hold-
er pressing and turning it counter-
clockwise.
The new bulb installation should
be carried out in reverse order.
To remove the bulbs in the rear
light, «liftback» vehicle (Fig. 60b) you
shall:
– open the tailgate;
– press finger to the latch 1 (Fig.
60c) through the hole in shelf sup-
port clip;
– pull the shelf support clip;
– heave the shelf support clip for
release lower hooks so to make the
access to rear light available;
– turned the replaced bulbs sock-
et counterclockwise, remove it from
the sear;
– remove bulbs from the socket
turning it counterclockwise.
Side turn indicator
To remove the bulb in the Side
turn indicator 1 (Fig. 60d) remove it
from the vehicle. In the socket the
light is held with spring latch and the
holding lock. Move the light in the
driving direction and throw out the
holding lock out of engagement.
Turning the bulb holder 3 counter-
clockwise remove it in assembly with
the bulb from the light housing and
pull bulb 2 to yourself.
Number-plate light
Change the burned-out bulb 3
(Fig. 61a) in the number-plate light
98

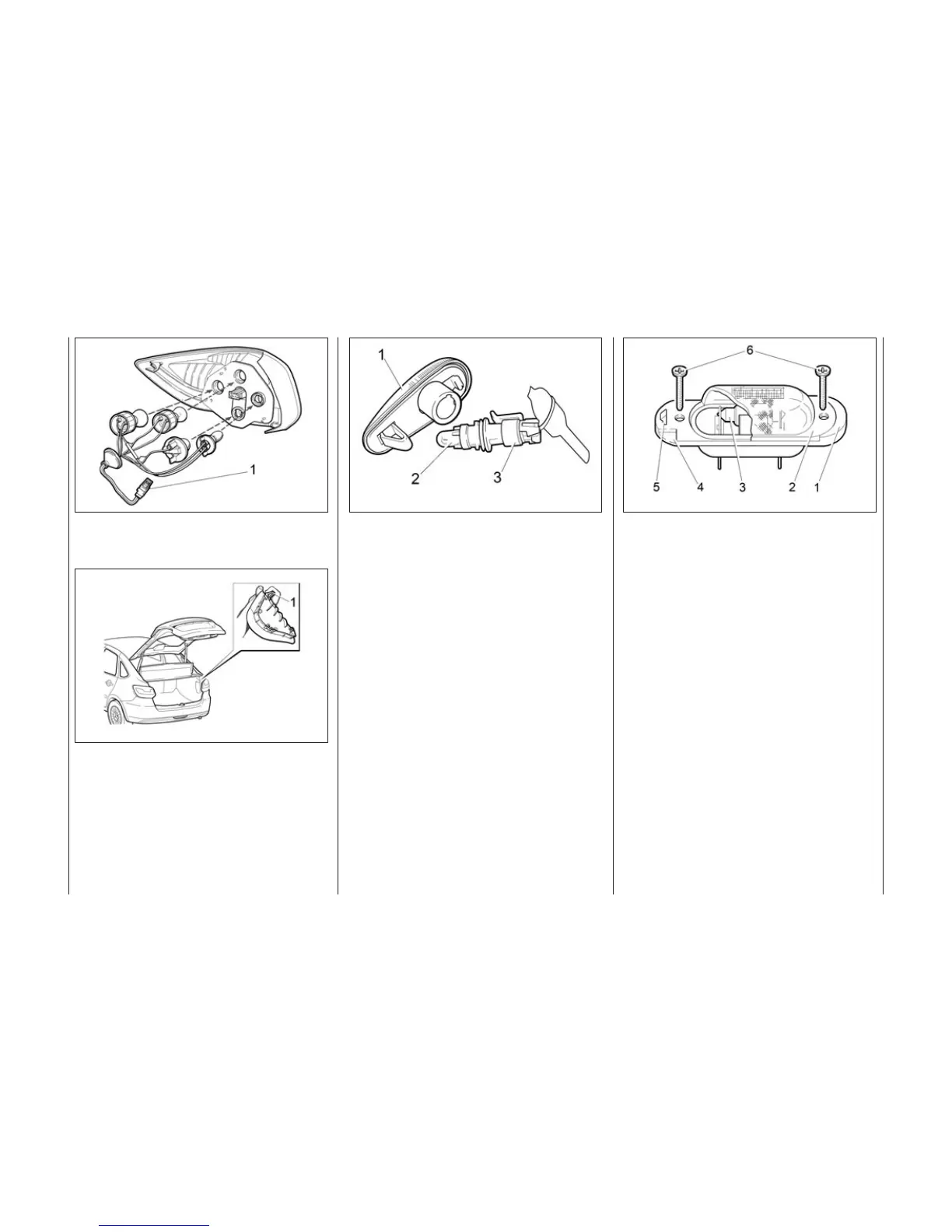

Fig. 60d. Side turn indicator
Fig. 60c. Shelf support clip removal
Fig. 60b. Rear light in
«liftback» vehicle
Fig. 61a. Number-plate light
