passenger seat) and carefully turn
out the light to yourself. Depress the
contacts and pull out the bulb. After
replacing the bulb set the ceiling light
hooks into the socket of the unit on
the left side and push the right side of
the light to fix it.
Interior illumination unit
To remove the bulb in the Interior
illumination unit you should remove
lens 1 (Fig. 63) with the help of a flat
screwdriver, inserting it into special
slots. Individual lighting bulbs are
removed after turning them for 45
0
clockwise or counter-clockwise. The
unit is held in the mounting bracket
by means of latches 2.
Luggage compartment light
To remove the bulb 3 (Fig. 64a) in
the luggage compartment light,
remove the light from the body
mounting bracket, for this insert the
screwdriver into slot 2 from the right
side of the light and carefully turn it
towards yourself. Then press latch
7, withdraw it out of hole 6 and
remove headlight glass 1. The bulb
is held with spring contacts. After
replacing the bulb, install headlight
glass 1 in such way, that the mount-
ing «lugs» 4 of the light case 5 run
into its slots.
To replace light bulb 2 (Fig. 64b)
in the luggage compartment light 1 in
«liftback» vehicle you should remove
the light from the vehicle.
100
The roof light is held in the socket
with retaining spring. Insert a flat
screwdriver into the chase 3 on the
right side of the roof light and care-
fully depress the roof light down and
pull the bulb 2.
After replacing the bulb the
assembly and installation of the lug-
gage compartment light should be
carried out in reverse order.
Fog light
Dismount the inoperative bulb in
the fog light (Fig. 65). Turn the bulb
base 1 counter-clockwise and re-
move out of the reflector, disconnect
the terminal block from the lamp.
The new bulb installation is carried
out in reverse order. To prevent leav-

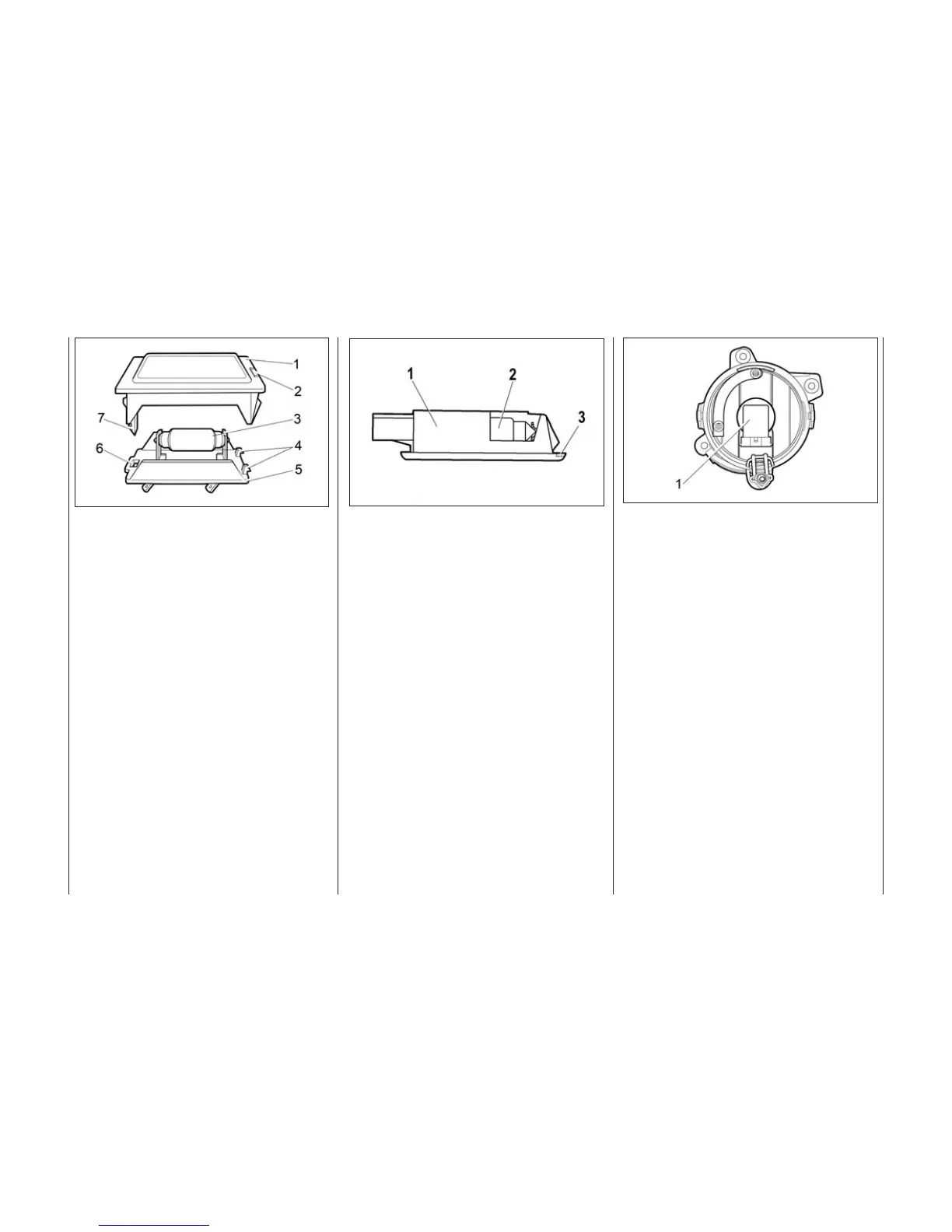

Fig. 64a. Luggage compartment light Fig. 65. Fog lightFig. 64b. Luggage compartment
light, «liftback» vehicle
