Fusion 3 Table Saw \ Setup \ Inventory List
18
© 2020 Laguna Tools
REF
Description
Q
PACKAGING
Left Side Front Rail
1
Boxed w/ Fence Assembly
Front Rail Assembly
1
Boxed Individually
Rear Rail Assembly
1
Boxed with Steel Rail
Control Switch
1
Attached to table
Dust Collector Hose
1
Boxed Individually

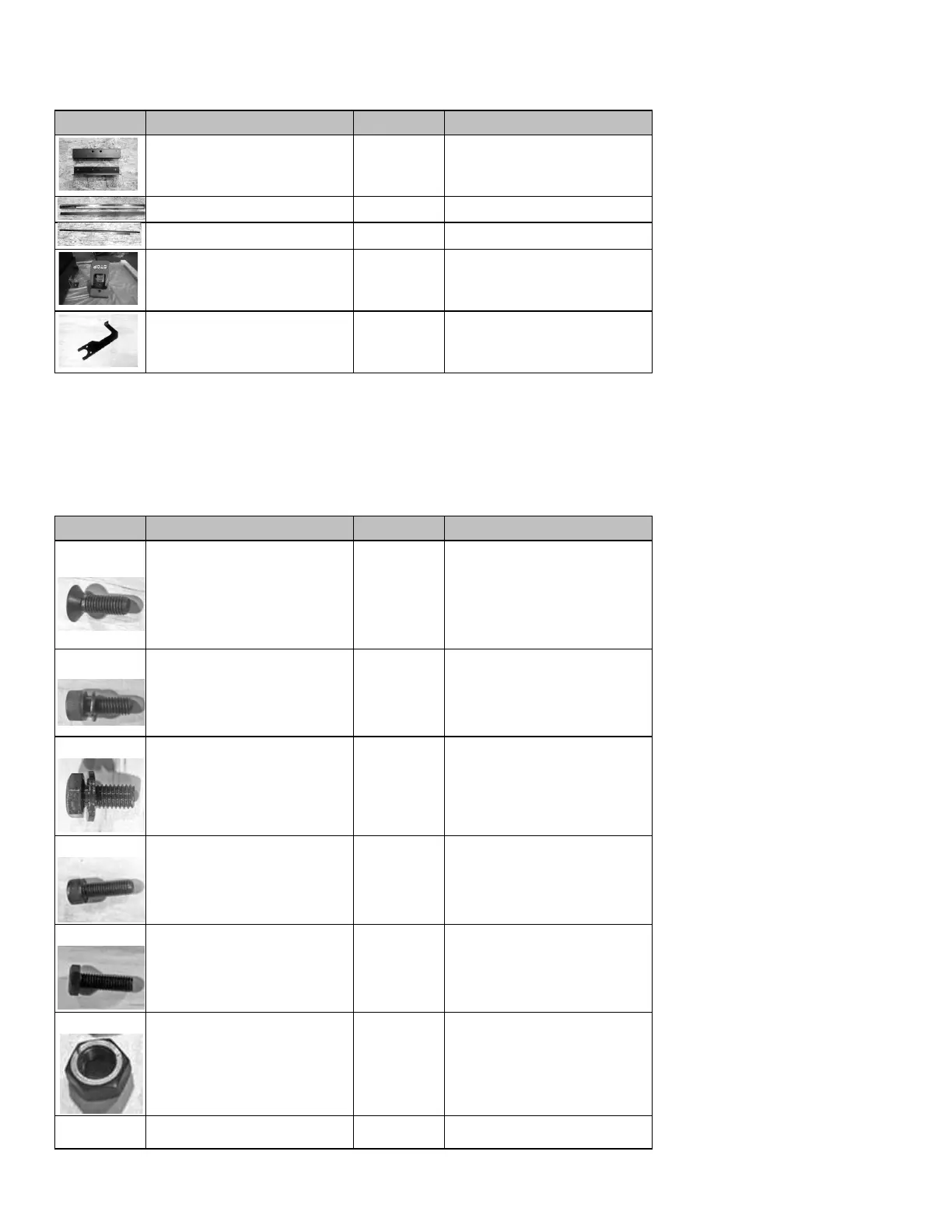

Hardware Inventory
Listed below are all the hardware required for assembly of the Fusion F3 table saws. The hardware below has been
included in the Fusion F3’s packaging. As you inventory the other parts shipped with your machine, be sure to inventory and
familiarize yourself with the hardware listed below.
Ref.
Description
Q
Installation
A
Counter-Sunk Alan Head
Screws (25mm)
use with hex nuts(F), flat
washers(H)
7
Front Rail Assembly, F3 Table
Also used to fasten Right
Extension Table
B
Socket head Button Screw w/
Lock Washer (28mm)
use with hex nuts(F), flat
washers(H)
4
Rear Rail Assembly, F3 Table
Dust collector hose support,
F3 Table
C
Hex Cap Screw w/ Flat Washer
(longer)
5
Rear Extension Table, F3 Table
Control Switch, Left Front Rail
D
Socket Head Cap Screw (no
washer) (28mm)
use with use with hex nuts(F),
lock washers (E)
5
Rear Rail Assembly, F3 Table
E
Hex Cap Bolt (30mm)
use with hex nuts(F), lock
washers (E)
2
Left Side Front Rail Assembly,
F3 Table
F
Hex Nuts (13mm)
20
Multiple
G
Flat Washers (8mm)
17
Multiple
