Rear Rail
The Fusion F3 table saw’s rear rail assembly supports both the fence and the rear extension table attachment. In
conjunction with the front rail, the rear rail allows the fence to move fluidly across the table. The rear rail assembly is made
up of the left and right rear rail bracket, the dust collector hose support bracket, the rear rail bracket.

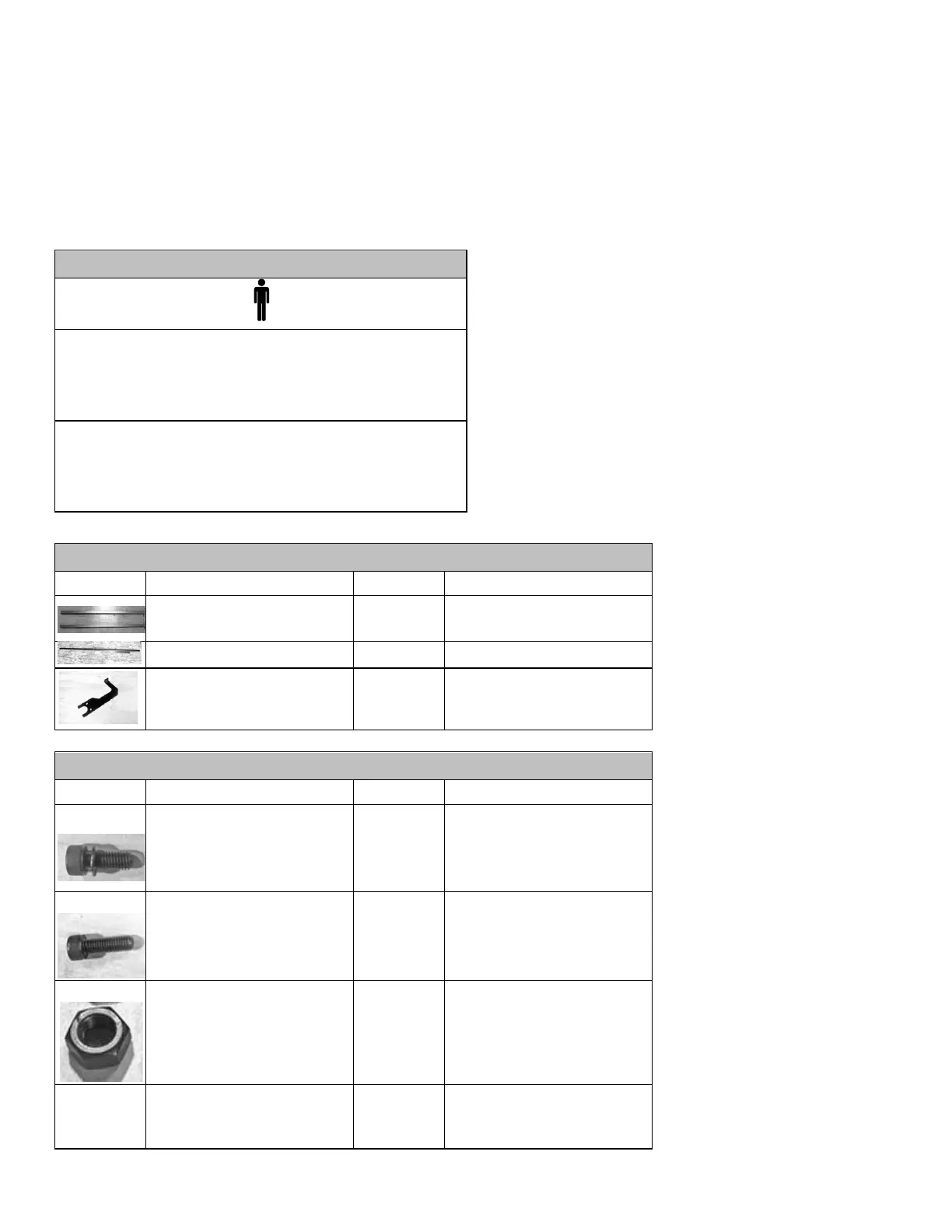

Quick Reference Guide
Add. Required Tools:
 Level
 Allen Wrenches
 General Wrench
Troubleshooting/Tips:
Attaching the dust collector hose support to the right rear rail
bracket BEFORE attaching the right extension leg to the
bracket will make for easier assembly.
Parts
REF
Description
Q
Installation
Right Extension Legs
(now assembled)
2
Assembled to F3 Table
Rear Rail Assembly
1
F3 Table
Dust Collector Hose
1
Right Rear Rail Bracket
Hardware
REF
Description
Q
Installation
B
Socket head Button Screw w/
Lock Washer (28mm)
use with hex nuts(F), flat
washers(H)
4 of 4
Rear Rail Assembly, F3 Table
Dust collector hose support,
F3 Table
D
Socket Head Cap Screw (no
washer) (28mm)
use with hex nuts(F), flat
washers(H), lock washers(H)
3 of 5
Rear Rail Assembly, F3 Table
F
Hex Nuts (13mm)
7 of 20
Rear Rail Assembly, F3 Table
G
Flat Washers (8mm)
7 of 17
Rear Rail Assembly, F3 Table
