Right Extension Table
The Fusion F3 table saw’s right extension table supports both the fence and the work piece. In conjunction with the front
rail, the right extension table allows the fence to move fluidly across the table to adjust to the width of the wood piece being
cut.
Quick Reference Guide
Add. Required Tools:
 Level
 Allen Wrenches
 General Wrench
Troubleshooting/Tips:
Be sure that the right extension table’s grooves are fitted
snugly on the threads of the screws/bolts before securing the
extension table to the rear rails.

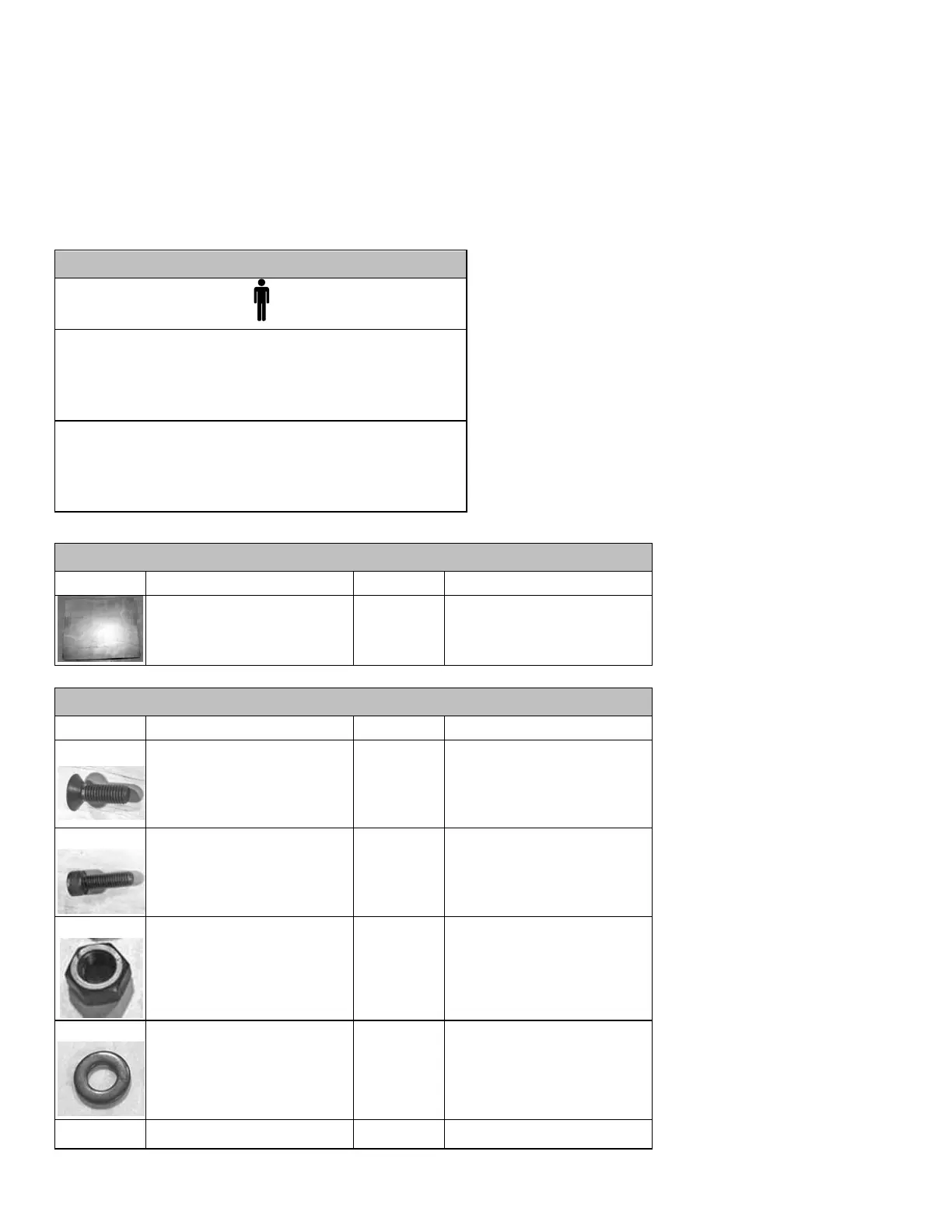

Parts
REF
Description
Q
Installation
Right Extension Table
1
Right Rear Rail, F3 Table, Right
Front Rail
Hardware
REF
Description
Q
Installation
A
Counter-Sunk Alan Head
Screws (25mm)
use with hex nuts(F), flat
washers(H)
2 of 7
Front Rail Assembly, F3 Table,
Right Extension Table
D
Socket Head Cap Screw (no
washer) (28mm)
use with hex nuts(F), flat
washers(H), lock washers(H)
2 of 5
Rear Rail Assembly, F3 Table,
Right Extension Table
F
Hex Nuts (13mm)
4 of 20
Multiple
G
Flat Washers (8mm)
4 of 17
Multiple
H
Lock Washers (8mm)
2 of 8
Socket Head Cap Screw
