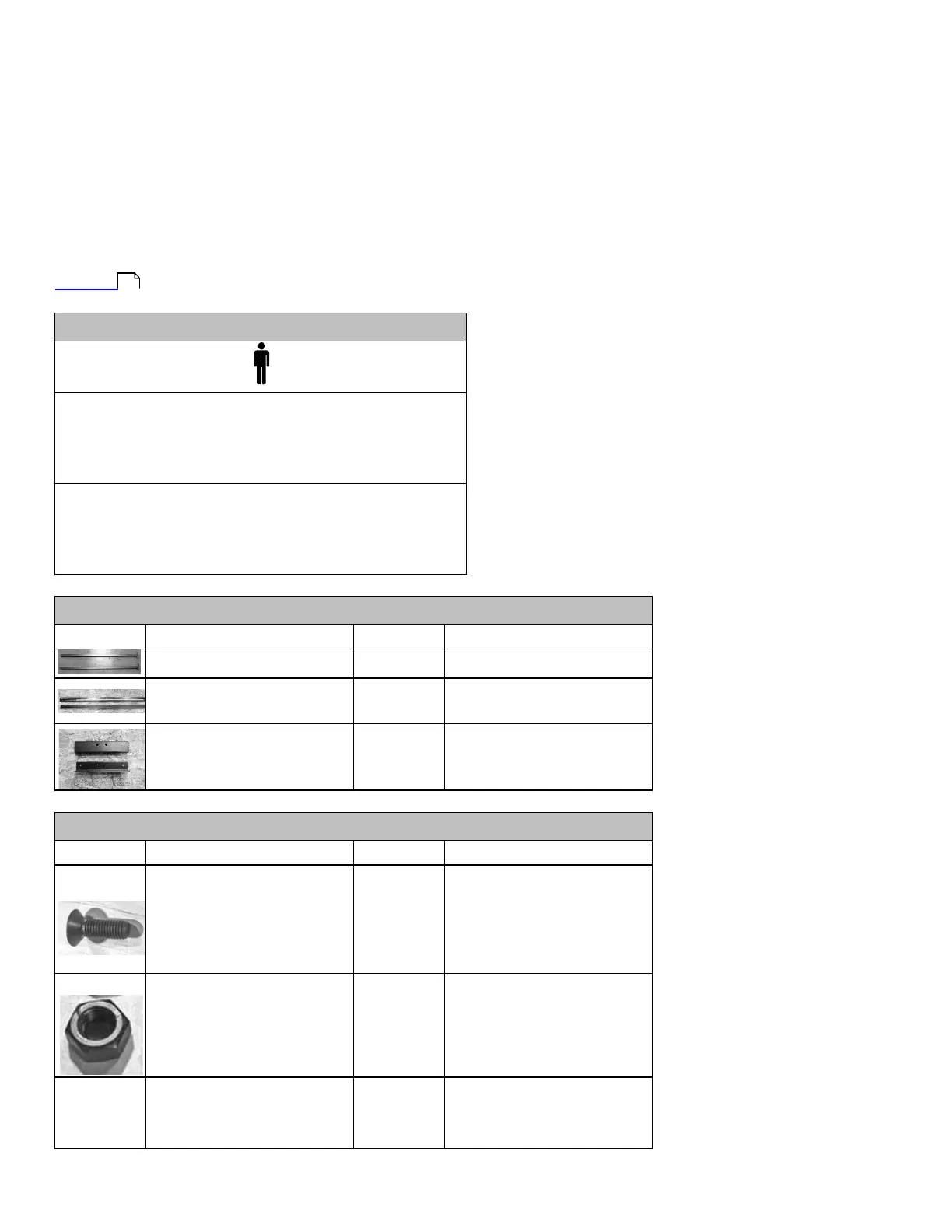

Front Rail
The Fusion F3 table saw’s front rail assembly houses the front rail and guide ruler. In conjunction with the rear rail, the front
rail allows the fence to move fluidly across the table. The front rail assembly is made up of the left and right front rail
brackets, the front rail, and the control switch.
NOTICE! Make sure to level the saw to the foundation prior to leveling anything to the saw body. Please read the
Overview prior to doing anything.
Quick Reference Guide
Add. Required Tools:
 Level
 Allen Wrenches
 General Wrench
Troubleshooting/Tips:
Attaching the rubber feet to the rear extension legs before
attaching the legs to the front rail bracket will make for easier
assembly.
Parts
REF
Description
Q
Installation
Right Extension Legs
2
Front Rail Assembly
Front Rail Assembly (Only the
front rail bracket is needed)
1
F3 Table
Left Side Front Rail
1
F3 Table
Rail
Body
Hardware
REF
Description
Q
Installation
A
Counter-Sunk Alan Head
Screws (25mm)
use with hex nuts(F), flat
washers(H)
5 of 7
Front Rail Assembly, F3 Table
Also used to fasten Right
Extension Table
F
Hex Nuts (13mm)
5 of 20
Front Rail Assembly, F3 Table
G
Flat Washers (8mm)
5 of 17
Front Rail Assembly, F3 Table
